SKU:96267

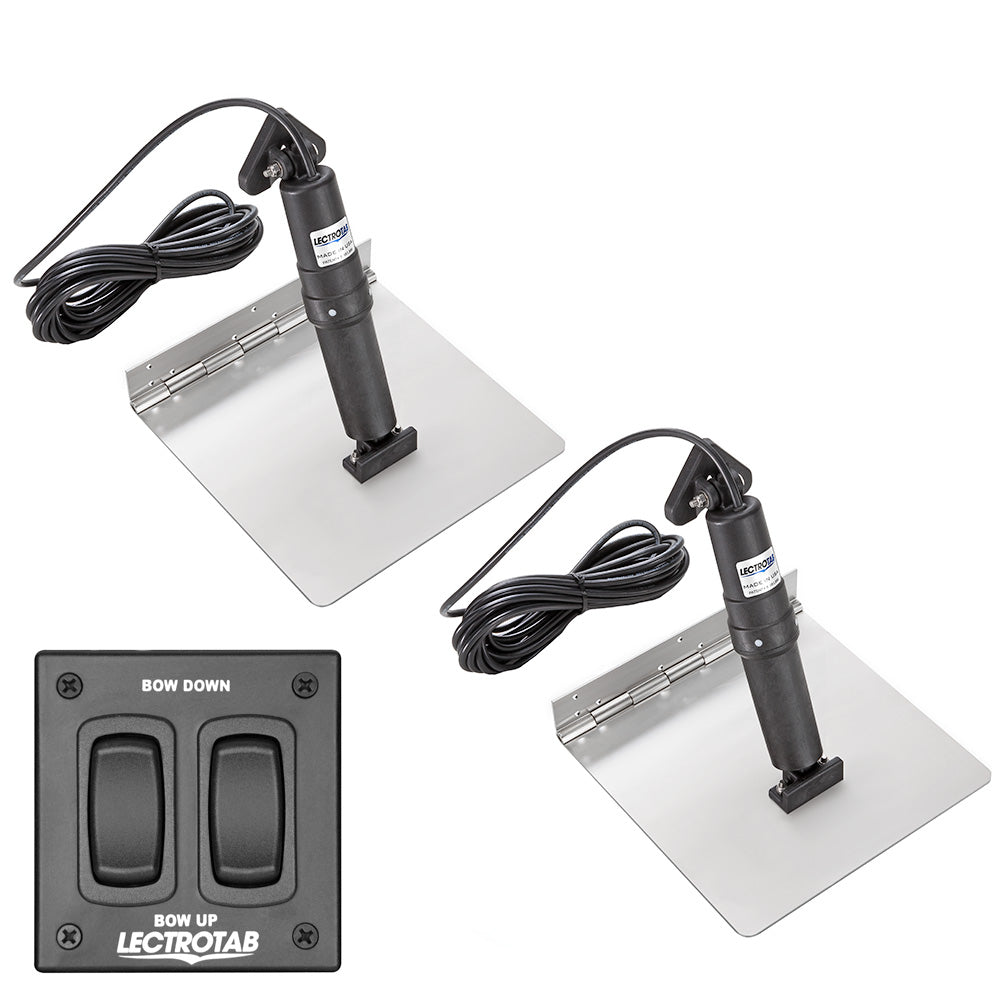

XKA Stainless Steel Trim Tab Kit with Rocker Switch - 12 x 12
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.
Features:
Technical Specifications:
In the Box:
*Sold as a Kit
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.The Lectrotab XKA Stainless Steel Trim Tab Kit is engineered for durability and reliable performance on boats ranging from 18 to 32 feet. Crafted from 12 gauge, 304 stainless steel, the trim tabs provide exceptional strength and corrosion resistance, making them ideal for marine environments. The design features a continuous rolled and pinned hinge, eliminating the need for welding and ensuring long-lasting durability. This construction approach enhances overall strength and simplifies installation, providing a seamless and maintenance-free solution for precise boat trim adjustments.
The kit includes a precision-engineered actuator that offers quiet operation and a non-hydraulic, sealed design that prevents leaks and reduces maintenance needs. The actuator assembly is housed in a non-metallic, permanently sealed casing, which resists corrosion and deterioration caused by sun exposure or submersion. With a push force of up to 1000 lbs, the actuators deliver maximum lift, ensuring optimal boat performance and handling. The system also features an internal pressure equalization mechanism and an internal brake system to prevent unintended tab movement during operation or backing down, providing smooth and controlled adjustments.
The included flat rocker switch is designed with enhanced sealing features to prevent water ingress, and its recessed construction guards against damage. It incorporates an "instant stop" circuit that halts actuator movement immediately when switches are released, enhancing safety and precision. The switch dimensions are compact, allowing easy installation on the boat's dash or control panel, compatible with 12 or 24 V systems. The entire kit is self-contained, with all components ready for straightforward installation without the need for internal boat modifications.
This comprehensive kit provides everything needed for effective trim tab operation, including two stainless steel tabs, two actuators with 23-foot cables, and a durable rocker switch. The system is ideal for boat owners seeking a high-quality, corrosion-resistant, and easy-to-maintain trim tab solution that enhances vessel handling and stability. For detailed installation instructions, refer to the included manual available online. Note that this product is sold as a complete kit and may not be returned to the point of purchase, so direct contact with the manufacturer for support is recommended.
Features:
