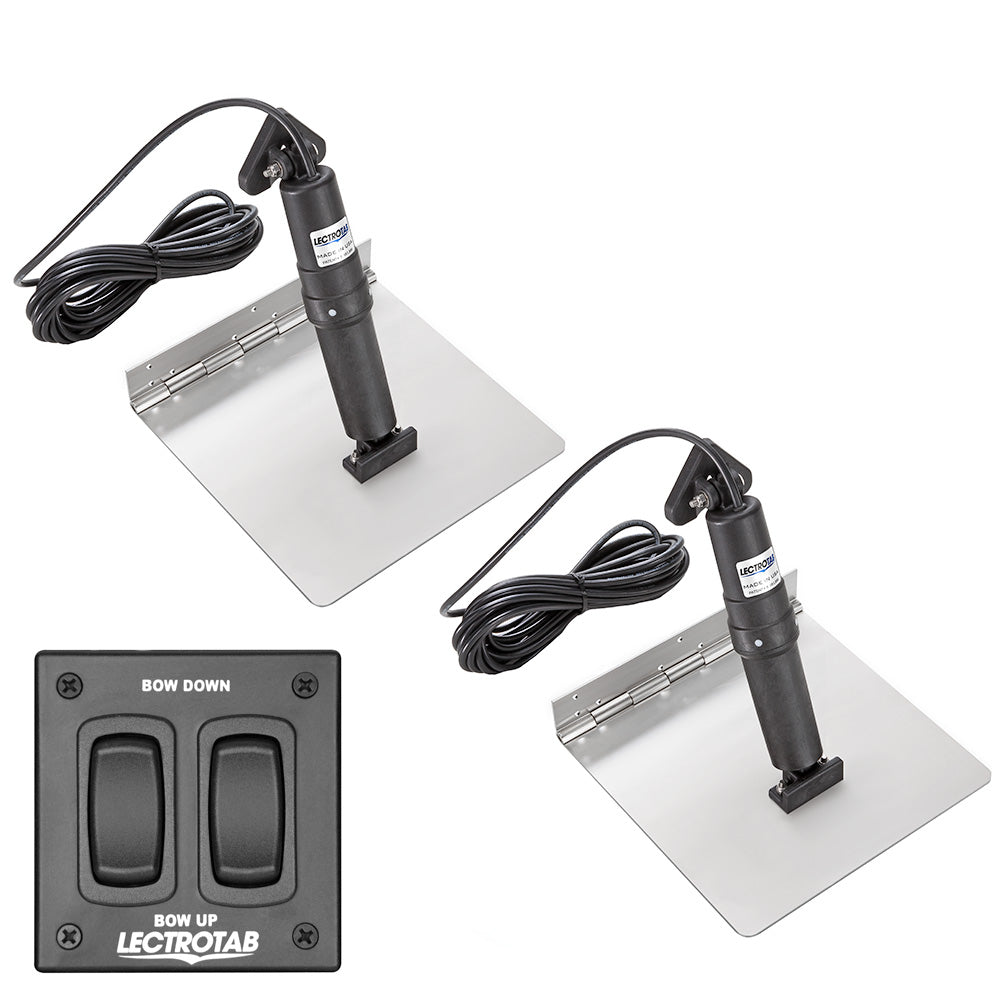

Lectrotab XKA Stainless Steel Trim Tab Kit with Rocker Switch – 12 x 18 inches for Boats 20-40 ft

XKA Stainless Steel Trim Tab Kit with Rocker Switch - 12 x 18

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm)
• Boat Length - 20' to 40' (6 to 12 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) Flat Rocker Switch
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit offers high-strength, corrosion-resistant performance for boats ranging from 20 to 40 feet. Crafted from 12 gauge 304 stainless steel, these trim tabs feature a continuous rolled and pinned hinge design, which enhances durability and eliminates the need for welding. This construction ensures reliable operation even in harsh marine environments. The precision-engineered actuator is built for quiet, maintenance-free operation, providing accurate tab positioning and maximum lift force. Its self-contained, non-metallic housing prevents corrosion and eliminates oil leaks common in hydraulic systems, resulting in a clean, hassle-free installation. The actuator assembly is designed for easy mounting and features a stroke length of 2.25 inches, capable of exerting up to 1,000 pounds of force. It employs an internal pressure equalization system and brake mechanism to prevent unwanted movement, ensuring the boat maintains proper trim under various conditions. The kit includes two stainless steel tabs, two actuators with 23-foot cables, and a modern flat rocker switch with improved sealing and recessed design to prevent water intrusion and damage. The switch's "instant stop" feature provides precise control by immediately halting actuator movement when released, helping to prevent over-trimming. Compatible with 12V or 24V DC systems, the kit is suitable for a wide range of marine applications, offering reliable performance and durability. The included instruction manual assists with straightforward installation, and the entire system is designed for easy integration without inside-boat components. Designed for boats with an overall length of 20 to 40 feet, this trim tab kit enhances vessel handling, stability, and fuel efficiency by optimizing trim angle and reducing drag. Its corrosion-free exterior ensures long-lasting performance, even in sun and water exposure, making it an ideal upgrade for serious boaters seeking reliability and ease of use.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when underway or backing down

• Quiet operation ensures smooth adjustments

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure resists corrosion and deterioration in marine environments
