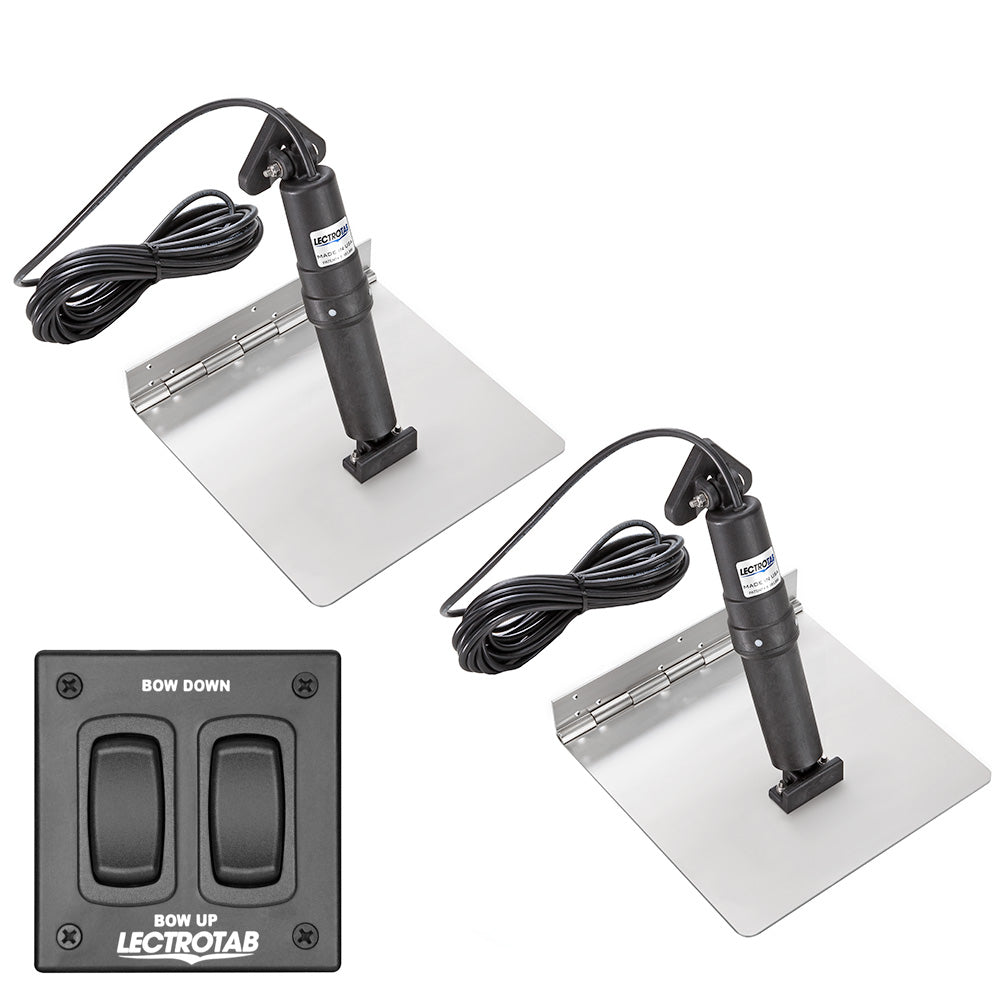

Lectrotab XKA Stainless Steel Trim Tab Kit with Rocker Switch - 12 x 24 Inches

XKA Stainless Steel Trim Tab Kit with Rocker Switch - 12 x 24

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 24" (30 x 61 cm)
• Boat Length - 28' to 48' (8.5 to 14.5 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) Flat Rocker Switch
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit offers a durable and reliable solution for boat leveling and performance enhancement. Crafted from 12 gauge, 304 stainless steel, these trim tabs provide superior strength and corrosion resistance, ensuring long-lasting performance in marine environments. The kit includes all necessary components for installation, featuring a precision-engineered actuator and a flat rocker switch with improved sealing and recessed design to prevent water ingress. The stainless steel tabs incorporate a continuous rolled and pinned hinge, eliminating the need for welding and enhancing durability. The actuator operates quietly and is designed for maintenance-free use, with a non-metallic external housing that resists deterioration from sun and water exposure. It is capable of exerting up to 1000 pounds of force, ensuring maximum lift and precise positioning, which is essential for optimal boat handling and performance. The system includes an internal pressure equalization and brake system to prevent unwanted movement, providing stability whether underway or backing down. This kit is suitable for boats ranging from 28 to 48 feet in length, making it ideal for a wide range of vessel sizes. The components are powered by a 12-volt DC system, with a stroke length of 2.25 inches, and include a 23-foot cable for flexible installation options. The rocker switch dimensions and mounting hole cutout are designed for easy integration into existing boat controls. The kit also features an instruction manual for straightforward installation and setup. Overall, the Lectrotab XKA stainless steel trim tab kit delivers a maintenance-free, corrosion-resistant, and high-performance solution for precise trim adjustment, enhancing boat control and safety in various marine conditions.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when underway or backing down

• Quiet operation ensures minimal noise disturbance

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure resists corrosion and deterioration from sun and water exposure
