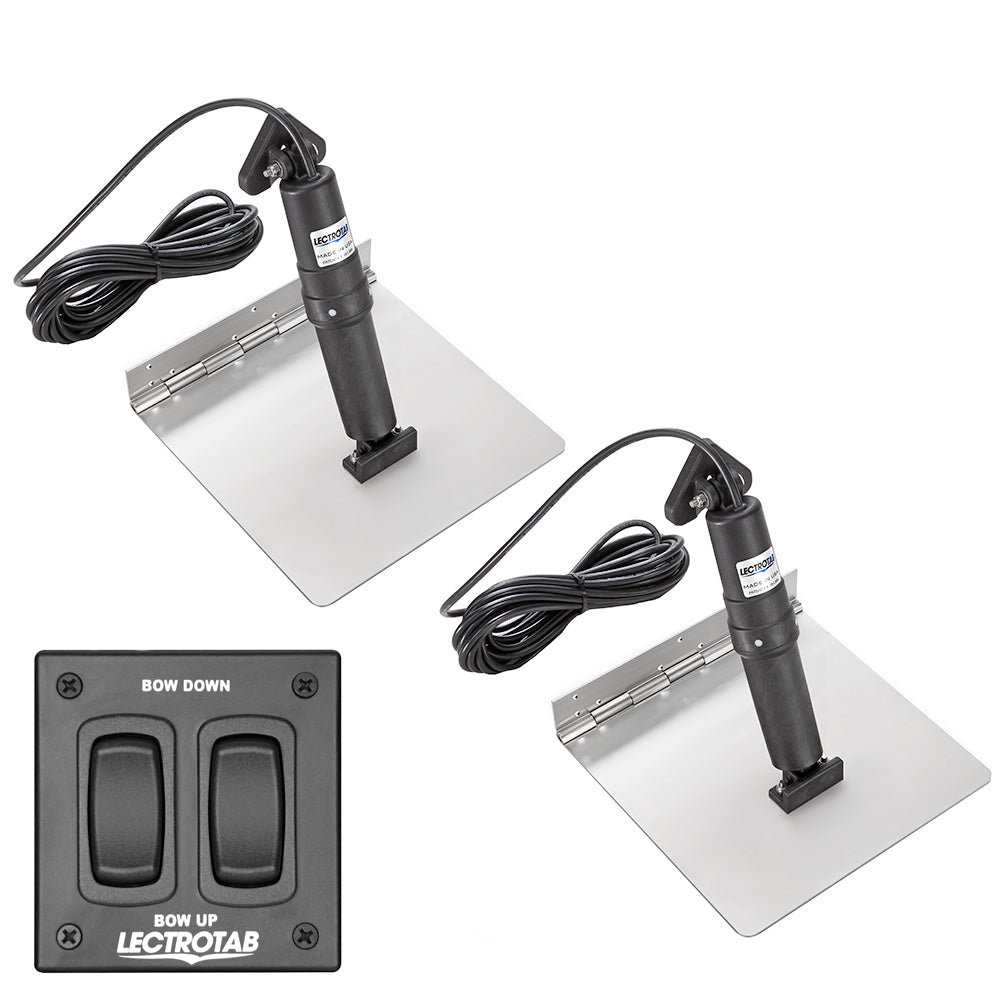

Lectrotab XKA Stainless Steel Trim Tab Kit with Rocker Switch - 9 x 12 inches

XKA Stainless Steel Trim Tab Kit with Rocker Switch - 9 x 12

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 12" (23 x 30 cm)
• Boat Length - 16' to 25' (5 to 7.5 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) Flat Rocker Switch
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit is designed for boats from 16 to 25 feet, providing reliable and precise trim control. Crafted from 12-gauge 304 stainless steel, these trim tabs feature a continuous rolled and pinned hinge that enhances strength and eliminates the need for welding, ensuring durability in marine environments. The corrosion-resistant construction and internal pressure equalization system contribute to longevity, even when exposed to harsh water conditions. The kit includes two stainless steel tabs, two actuators with 23-foot cables, and a flat rocker switch, offering a comprehensive solution for seamless trim adjustments. The actuators are fully load-tested to exert up to 1,000 pounds of force, providing maximum lift with quiet operation and a maintenance-free, non-hydraulic design. The sealed non-metallic housing prevents water ingress and corrosion, while the internal brake system ensures the trim tabs stay in position under various conditions. The rocker switch features an improved sealing design and recessed rocker to prevent breakage, along with an instant stop circuit to prevent actuator over-run. This kit simplifies installation with its self-contained components, requiring no components inside the boat and accommodating standard or low-profile transom mounting brackets. Whether upgrading or installing new trim tabs, the Lectrotab XKA kit delivers dependable performance, extended lifespan, and ease of use for optimal boat handling and stability. For detailed installation and operation instructions, refer to the included manual available online.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when underway or backing down

• Quiet operation for smooth adjustments

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure resists corrosion and deterioration in sun and water
