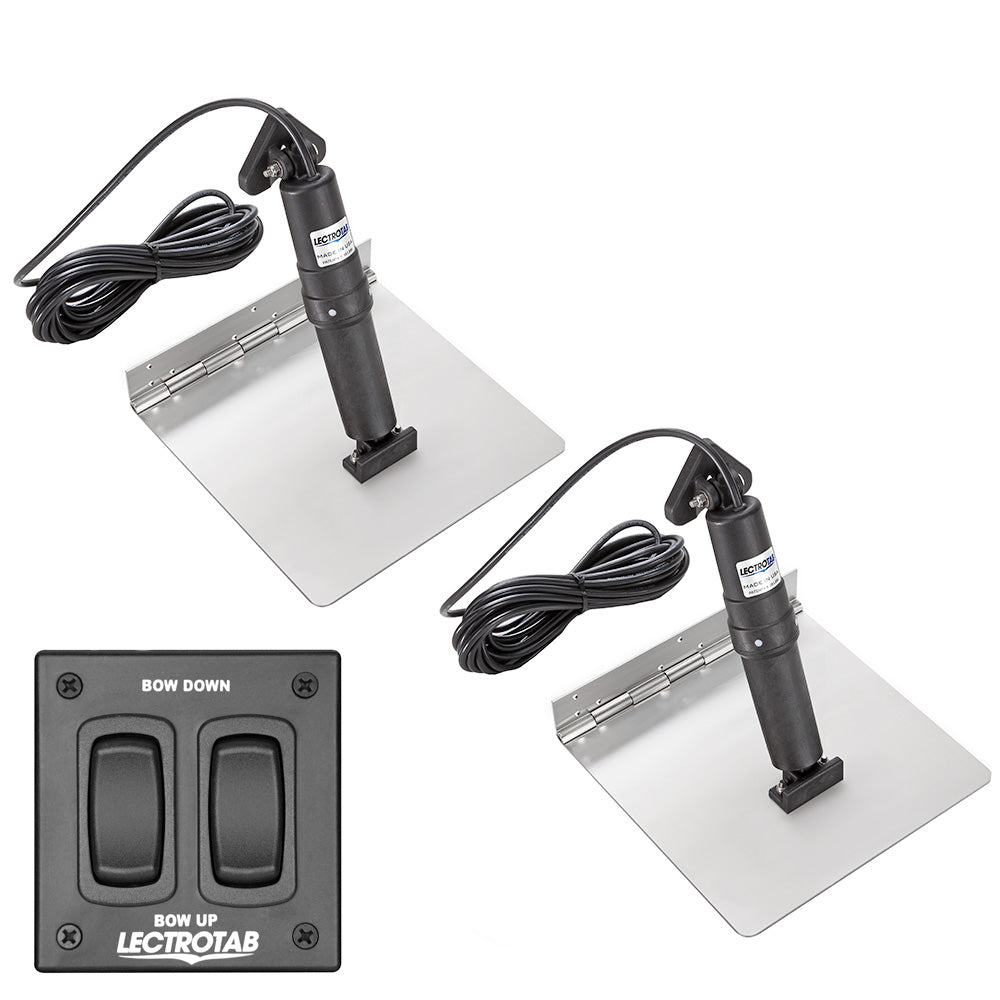

Lectrotab XKA Stainless Steel Trim Tab Kit with Rocker Switch – 9 x 18 Inches

XKA Stainless Steel Trim Tab Kit w/Rocker Switch - 9 x 18

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 18" (23 x 46 cm)
• Boat Length - 21' to 30' (6.5 to 9 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) Flat Rocker Switch
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA stainless steel trim tab kit offers exceptional strength and durability for boats measuring 21 to 30 feet. Constructed from 12-gauge 304 stainless steel, these trim tabs feature a continuous rolled and pinned hinge design that eliminates the need for welding, ensuring long-lasting reliability. The corrosion-resistant exterior and high-quality materials make this kit suitable for both freshwater and saltwater environments, providing consistent performance over time. The stainless steel tabs are engineered for maximum lift force and precise positioning, enhancing your vessel's stability and control. The included actuator utilizes a maintenance-free, non-hydraulic design with internal pressure equalization and an internal brake system, ensuring quiet operation and preventing unwanted movement during transit or backing down. Powered by a 12-volt DC system, each actuator can exert up to 1000 pounds of force, with a stroke length of 2.25 inches, making it capable of handling heavy loads efficiently. The actuator assembly is housed in a sealed, non-metallic enclosure that prevents corrosion and eliminates oil leaks common in hydraulic systems. The kit also features a high-quality flat rocker switch with improved sealing and recessed design to prevent water ingress and damage. The switch provides an instant stop circuit to prevent actuator over-run, offering added safety and control. The kit includes two stainless steel tabs, two actuators with 23-foot cables, the rocker switch, and comprehensive installation instructions, making setup straightforward. This complete package is ideal for boat owners seeking reliable, maintenance-free trim tab operation that enhances vessel performance and safety. For detailed installation guidance, consult the included manual, available online through the provided link.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location prevents damage from fouled rams or barnacle growth

• Utilizes internal pressure equalization system for consistent operation

• Internal brake system prevents unwanted tab movement during transit or backing down

• Quiet operation for a smooth boating experience

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure resists corrosion and deterioration from sun and water
