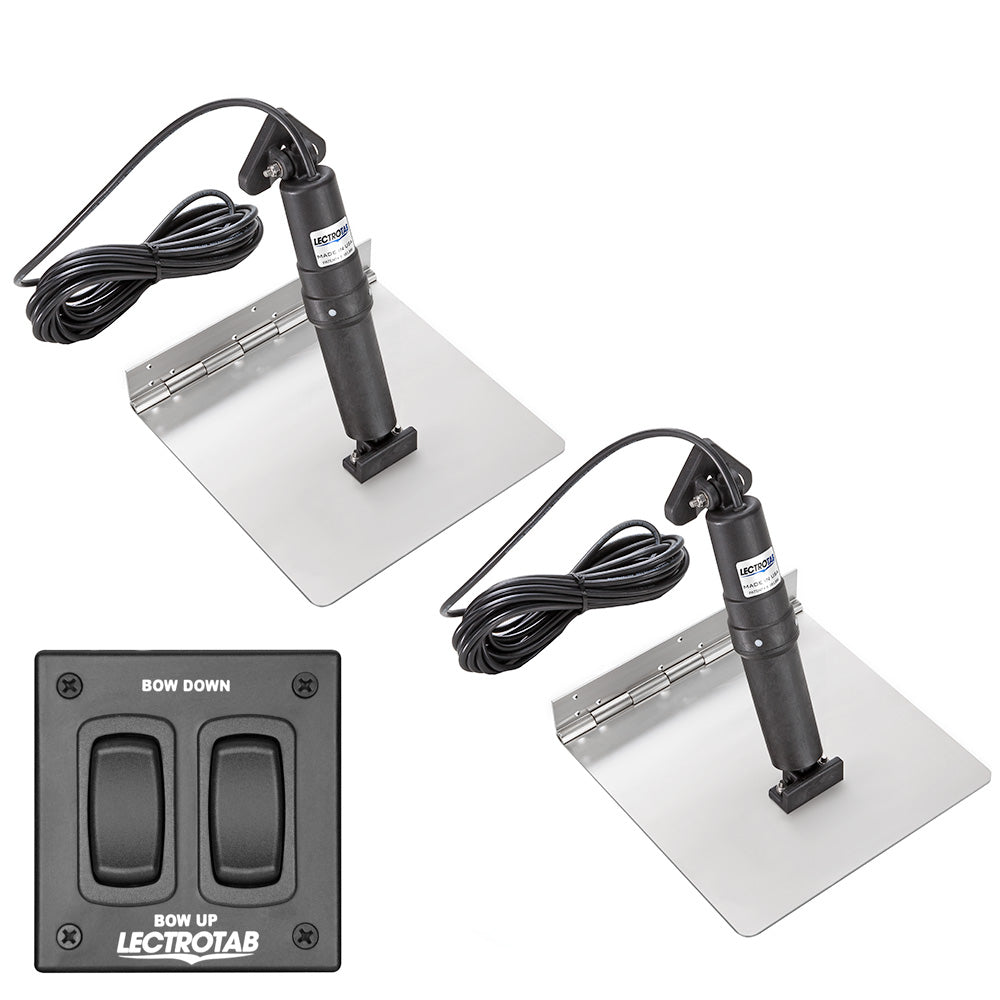

Lectrotab XKA Stainless Steel Trim Tab Kit with Rocker Switch - 9 x 9 inches

XKA Stainless Steel Trim Tab Kit with Rocker Switch - 9 x 9

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm)
• Boat Length - 14' to 19' (4 to 6 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) Flat Rocker Switch
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit offers a durable and reliable solution for boaters seeking precise control and performance. Crafted from 12-gauge, 304 stainless steel, these trim tabs are designed to withstand harsh marine environments, providing corrosion resistance and long-lasting strength. The continuous rolled and pinned hinge design enhances durability by eliminating welding points, ensuring smooth operation and structural integrity over time. This robust construction makes the trim tabs ideal for boats ranging from 14 to 19 feet, delivering maximum lift force with minimal maintenance requirements. The kit includes all necessary components, such as stainless steel tabs, actuators with 23-foot cables, and a flat rocker switch, making installation straightforward and hassle-free.
The actuator features a non-metallic, sealed housing that prevents corrosion and leaks, unlike hydraulic systems that can lose oil over time. With a 12-volt DC power supply, the actuator provides a 2.25-inch stroke length and is load-tested to push up to 1,000 pounds of force, ensuring reliable performance during operation. The internal pressure equalization system and brake mechanism prevent unwanted tab movement, whether the boat is underway or backing down. The high-quality rocker switch is designed with improved sealing and a recessed, break-resistant rocker to withstand harsh marine conditions, offering an instant stop feature for precise adjustments.
This kit's versatile design includes a transom-mount bracket suitable for various boat configurations, and the external components are fully corrosion-proof, capable of enduring sun exposure and water immersion without deterioration. The included instruction manual guides users through the installation process, ensuring proper setup and operation. Overall, the Lectrotab XKA Stainless Steel Trim Tab Kit is an essential upgrade for boat owners seeking enhanced maneuverability, stability, and longevity in their trim tab system, backed by quality engineering and marine-grade materials.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location prevents damage from fouled rams or barnacle growth

• Utilizes internal pressure equalization system for smooth operation

• Internal brake system prevents unwanted tab movement during operation or backing down

• Quiet operation for a seamless boating experience

• Actuators are fully load tested to push 1000 lbs of force for reliable performance

• Non-metallic external structure resists corrosion and deterioration from sun and water exposure
