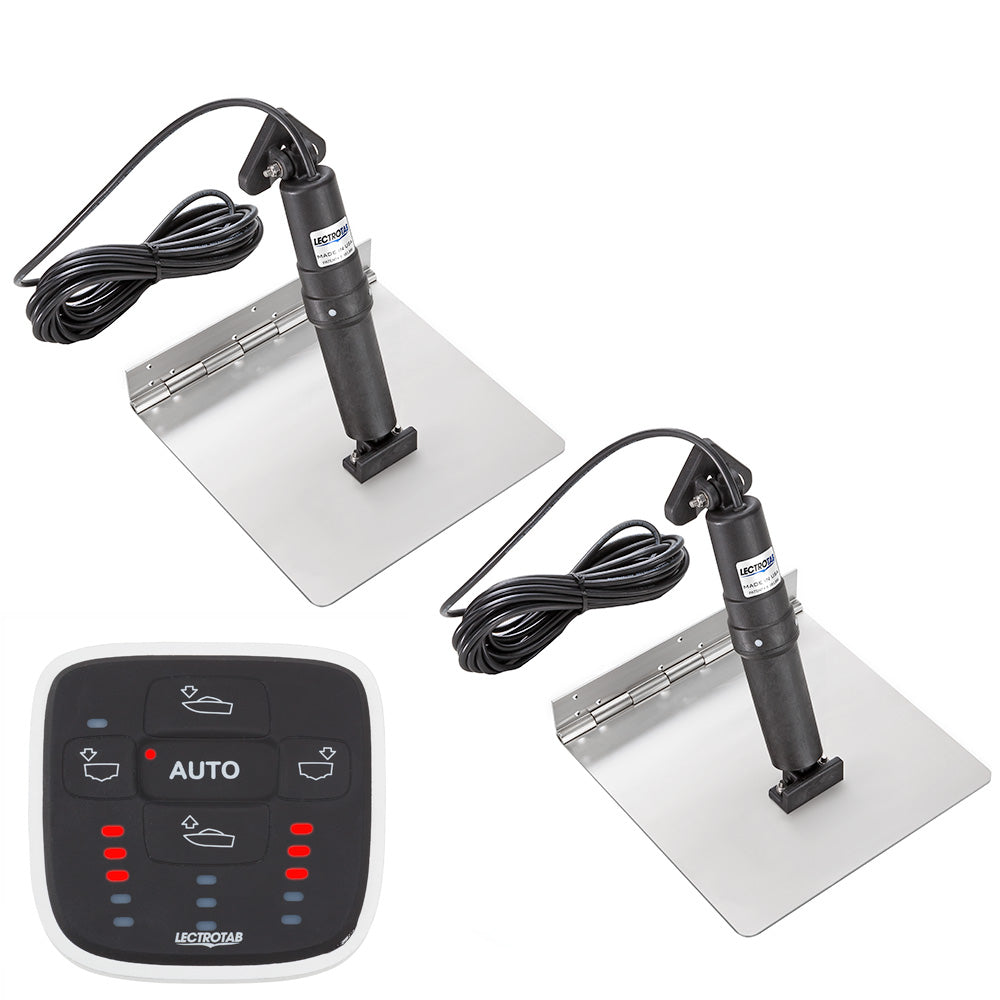

Lectrotab XKA Stainless Steel Trim Tab with ALC-1 Control – 12 x 24 inches

XKA Stainless Steel Trim Tab with ALC-1 Control - 12 x 24

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 24" (30 x 61 cm)
• Boat Length - 28' to 48' (8.5 to 14.5 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Hole Cutout - 2" (50 mm)
• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Automatic Leveling Control
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab with ALC-1 Control offers unmatched strength, durability, and precision for marine applications. Crafted from 12-gauge 304 stainless steel, these trim tabs are designed to withstand harsh marine environments without corrosion or deterioration. The continuous rolled and pinned hinge construction eliminates welding, ensuring a seamless and durable joint that enhances the overall strength and reliability of the system. This robust design provides a long-lasting solution for boaters seeking high-performance trim adjustments.
The integrated actuator features a non-metallic, permanently sealed housing that prevents corrosion and reduces maintenance. It delivers quiet, smooth operation and is capable of exerting up to 1,000 pounds of force, making it suitable for boats ranging from 28 to 48 feet in length. The actuator's stroke length of 2.25 inches and 23-foot cable length allow flexible installation options. The system's internal pressure equalization and brake mechanisms ensure precise control and prevent unwanted movement during operation or backing down, enhancing safety and performance.
The ALC-1 automatic leveling control continuously adjusts the trim tabs to maintain a level boat attitude, significantly improving ride comfort and fuel efficiency. It automatically compensates for side-to-side roll and fore-aft pitch, providing a smoother and more stable boating experience. The control unit measures just over 3 inches in width and height, with a 2-inch mounting hole cutout, making it easy to install in various configurations. The kit includes two stainless steel trim tabs, two actuators with cables, and the control unit, simplifying installation and setup. This maintenance-free, non-hydraulic system eliminates concerns about oil leaks common with hydraulic trim tabs, offering a reliable and hassle-free solution for boat owners.
Designed for boats between 28 and 48 feet, this kit ensures maximum lift force, precise positioning, and long-term durability. The system's corrosion-resistant external structure withstands sun exposure and water immersion, making it an ideal choice for demanding marine environments. For detailed installation instructions, refer to the provided manual linked here: Owner's Manual.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when underway or backing down

• Quiet operation ensures minimal noise during adjustments

• Actuators are fully load tested to push up to 1000 lbs of force

• Non-metallic external structure resists corrosion and deterioration from sun and water
