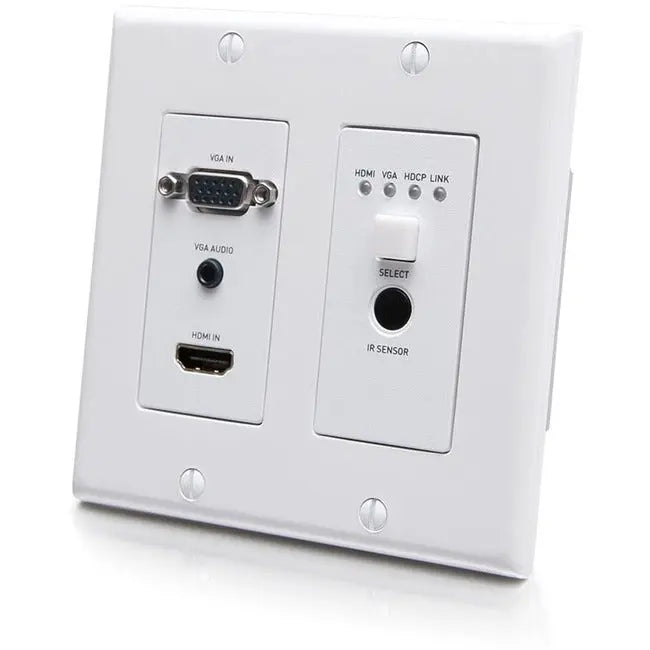

LEGRAND AV C2G 1 HDMI + VGA Wall Plate Transmitter with IR and RS232 Pass-Through

C2G HDBaseT HDMI Extender + VGA, 3.5mm, RS232 and IR over Cat - Dual Gang HDMI Wall Plate Transmitter - 4K 60Hz

The LEGRAND AV C2G 1 HDMI + VGA Wall Plate Transmitter (Part Number: C2G30017) offers a reliable solution for extending high-definition audio and video signals over long distances using a single Cat6a Ethernet cable. Designed for professional installations, this device supports 4K resolution at 60Hz (4:2:0) up to 130 feet with Cat6a cable and 115 feet with Cat5e or Cat6 cable, ensuring crisp image quality in conference rooms, classrooms, and lecture halls. It also extends 1080p VGA signals up to 230 feet with Cat6a cable or 200 feet with Cat5e/6, providing flexibility for various setup requirements. The wall plate form factor integrates seamlessly into existing infrastructure, offering a clean and professional appearance. This transmitter is HDCP 2.2 compliant, ensuring secure content protection and compatibility with modern digital sources. It supports PoC PD (Power over Cable) to receive power from an HDBaseT receiver with a PSE module, eliminating the need for an additional power supply and simplifying installation. The unit also features advanced control options, including IR and RS232 pass-through, allowing remote control and integration with automation systems. An independent DIP switch enables VGA EDID management, providing optimal compatibility with connected displays. All audio inputs support EDID fixed at PCM 2-channel, ensuring consistent audio playback. The HDMI input can copy EDID from the HDBaseT receiver, maintaining proper handshake and resolution settings. Compact and lightweight, the device weighs approximately 10.58 ounces and is constructed in a durable black finish, suitable for installation in various environments. Backed by a 5-year limited warranty, the C2G 1 HDMI + VGA Wall Plate Transmitter is an ideal choice for extending high-quality AV signals over long distances with minimal equipment and maximum efficiency.

Features:

• Extend 4K at 60Hz (4:2:0) up to 130 feet and 1080p at 60Hz up to 230 feet with Cat 6a cable

• Extend 4K at 60Hz (4:2:0) up to 115 feet and 1080p at 60Hz up to 200 feet with Cat 5e/6 cable

• Supports VGA resolutions up to 1920x1200 at 60Hz

• Supports auto switching

• HDCP 2.2 compliant, to create a secure connection between the source and display

• All audio inputs support EDID - fixed at PCM 2CH

• HDMI input supports EDID - copied from HDBaseT receiver

• Independent DIP switch provided for VGA EDID management

• Supports IR and RS232 pass-through

• Supports PoC PD to receive power from an HDBaseT receiver with PSE module
