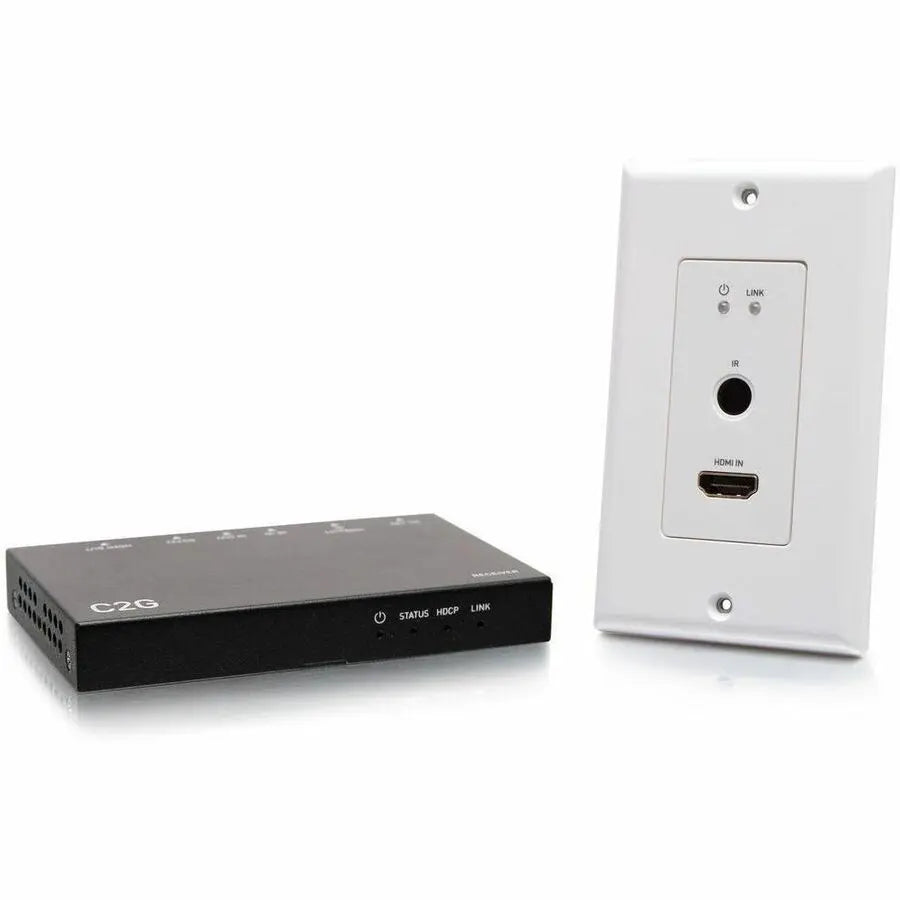

LEGRAND AV C2G 30025 4K HDMI HDBaseT Wall Plate Transmitter and Receiver Set

The LEGRAND AV C2G 30025 4K HDMI HDBaseT Wall Plate Transmitter and Receiver Set provides a reliable solution for extending high-definition audio and video signals over long distances using a single Ethernet cable. Designed for professional and commercial installations, this set supports 4K resolution at 60Hz (4:2:0) up to 130 feet when using a Cat6a cable, making it ideal for conference rooms, classrooms, lecture halls, and other environments where high-quality video transmission is essential. The system also supports full HD 1080p at 60Hz up to 230 feet with Cat6a and up to 200 feet with Cat5e or Cat6 cables, offering versatile options for various network setups.

This wall plate transmitter and the accompanying box receiver are HDCP 2.2 compliant, ensuring secure and encrypted content transmission between source devices and displays. The setup supports multi-channel audio formats such as PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X, delivering immersive audio experiences. Additionally, the system supports CEC pass-through, allowing centralized control of connected HDMI devices, simplifying operation and integration into existing systems. The inclusion of bi-directional RS232 pass-through and PoC (Power over Coax) support enables flexible installation options, reducing the need for additional power supplies by allowing one power adapter to power both transmitter and receiver.

Engineered with the HDBaseT VS010 chipset, this system simplifies the installation process, making it suitable for professional AV setups. The wall plate design ensures a clean, professional appearance, while the compact form factor allows easy integration into standard wall boxes. The package includes one transmitter and one receiver, with a limited 5-year warranty for peace of mind. For optimal performance, it is recommended to use HDMI cables with gripping connectors to ensure a secure connection. This setup is an excellent choice for extending high-quality HDMI signals over long distances in commercial settings, helping you deliver crystal-clear video and audio without signal degradation.

Features:

• Extend 4K at 60Hz (4:2:0) up to 130 feet and 1080p at 60Hz up to 230 feet with Cat 6a cable

• Extend 4K at 60Hz (4:2:0) up to 115 feet and 1080p at 60Hz up to 200 feet with Cat 5e/6 cable

• HDCP 2.2 compliant, ensuring a secure and encrypted connection between source and display

• Supports CEC pass-through for centralized control of HDMI devices

• Supports RS232 pass-through via HDBT port for control and automation integration

• s HDBaseT VS010 chipset for simplified installation and reliable performance
