Legrand C2G HDMI HDBaseT + USB-C Over Cat Extender Wall Plate - 4K Video and Data Transmission

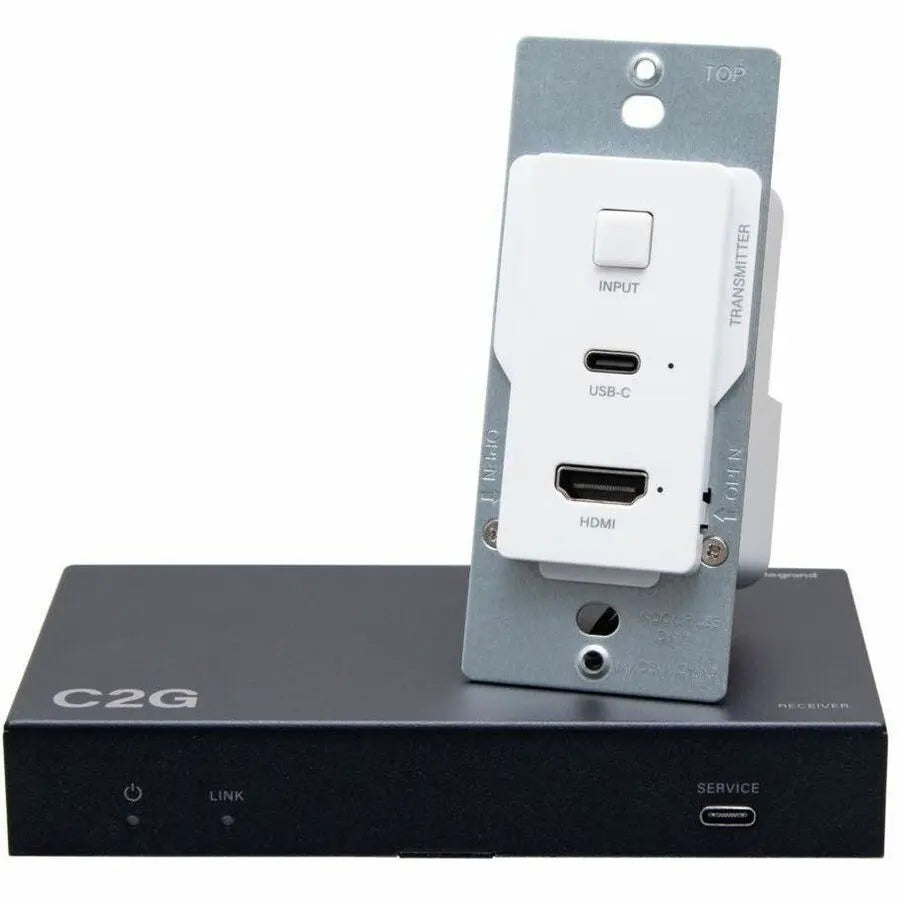

C2G HDMI® HDBaseT + USB-C® Data and Video over Cat Extender Wall Plate Transmitter to Box Receiver - 4K

The Legrand C2G HDMI HDBaseT + USB-C Over Cat Extender Wall Plate offers a high-performance solution for extending uncompressed HDMI and USB-C video signals along with RS-232 control and USB 2.0 data over a single Cat6a cable. Designed for professional installations, this extender supports distances of up to 230 feet at 1080p resolution and up to 130 feet for 4K video at 60Hz, ensuring reliable transmission in conference rooms, classrooms, and large display environments. Its HDCP 2.2 compliance guarantees a secure and protected connection between the source device and the display, making it suitable for high-definition content distribution. The wall plate transmitter and box receiver are engineered with ease of installation and versatility in mind, featuring a sleek wall-mounted design and comprehensive connectivity options. The USB-C port on the transmitter supports 4K 30Hz video transmission via DisplayPort Alt Mode (v1.2a) and USB 2.0 data transfer, enabling seamless integration with modern laptops and devices. The receiver supports downscaling from 4K 60Hz to 1080p without frame rate conversion, providing flexibility in display resolution management. Equipped with two USB-A ports on the receiver that support output power up to 5V/1.4A, this system ensures sufficient power delivery for connected peripherals. The included universal power supply with US, EU, UK, and AU plug converters makes deployment straightforward across various regions. Whether used for interactive whiteboards, digital signage, or multimedia presentations, this extender provides a reliable, high-quality link over standard Ethernet cabling, reducing the need for complex wiring and enabling clean, professional installations.

Features:

• Extends uncompressed HDMI and USB-C video signals, RS-232 control, and USB 2.0 data over a single CAT6a cable, supporting distances up to 230 ft (70 m) for 1080p or 130 ft (40 m) for 4K@60Hz HDMI and 4K@30Hz USB signals.

• USB-C port supports 4K 30Hz video transmission via DP Alt Mode (v1.2a) and USB 2.0 data transfer.

• HDMI output on the receiver supports downscaling from 4K 60Hz to 1080p, without frame rate conversion.

• HDCP 2.2 compliance ensures a secure and protected connection between source and display.

• Transmitter supports both manual and automatic switching, following the last-in-first-out rule.

• Two USB-A ports on the receiver support output power up to 5V/1.4A for peripheral devices.

• Includes a universal 18V/2.5A power supply with US, EU, UK, and AU plug adapters for versatile deployment.
