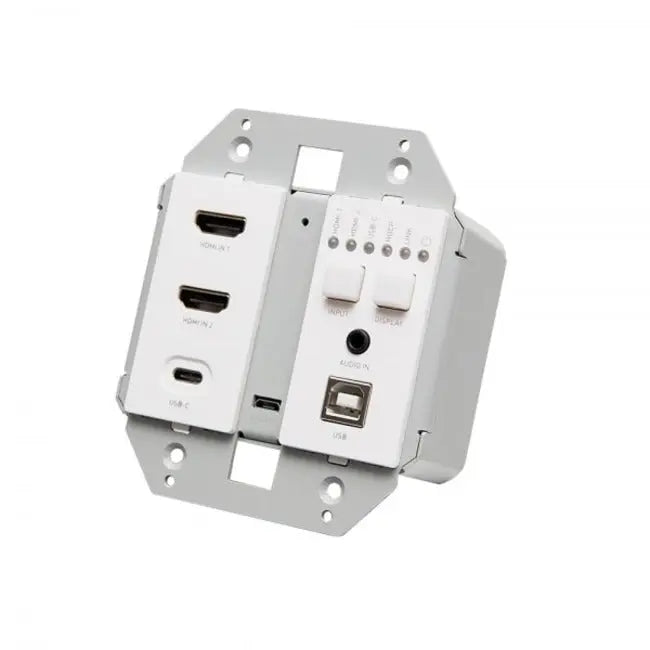

Legrand Group C2G Dual 4K HDMI HDBaseT + USB-C Wall Plate Transmitter

C2G Dual 4K HDMI HDBaseT plus USB-C, 3.5mm, USB-B over Cat Extender Dual Gang Wall Plate Transmitter

The Legrand Group C2G Dual 4K HDMI HDBaseT + USB-C Wall Plate Transmitter is an advanced solution designed for extending high-resolution video, audio, and data signals over long distances. It supports dual 4K HDMI sources at 60Hz with 4:2:0 chroma subsampling, enabling seamless connection to displays up to 130 feet using a single Cat6a cable. This makes it ideal for conference rooms, classrooms, and other professional environments where high-quality video and data transmission are critical. The transmitter also offers USB-C 3.1 Gen2 for video, along with USB-B for data transfer, supporting high-speed USB 2.0 pass-through up to 230 feet, facilitating device control such as keyboards, mice, and cameras. It is HDCP 2.2 compliant, ensuring secure and protected content delivery between source and display. The device features automatic switching, which prioritizes the last active source, simplifying operation in multi-source setups. An analog audio pass-through allows for audio distribution alongside video signals, enhancing multimedia presentations. The transmitter is powered via Power over HDBaseT (PoH), eliminating the need for additional power adapters and enabling flexible installation options. Users can manage and control the device through firmware upgrades and API commands via the Micro USB port or RS232, providing advanced customization and integration capabilities. Built with the VS210 HDBaseT chipset, the transmitter ensures reliable and straightforward installations, supported by a 5-year limited warranty. Compact and designed as a wall plate, the unit measures approximately 1.51 inches high, 3.50 inches wide, and 4.16 inches deep, making it suitable for discreet mounting in various environments.

Features:

• Extend 4K at 60Hz (4:2:0) up to 130 feet and 1080p at 60Hz up to 230 feet with Cat 6a cable

• Extend 4K at 60Hz (4:2:0) up to 115 feet and 1080p at 60Hz up to 200 feet with Cat 5e/6 cable

• HDCP 2.2 compliant, ensuring a secure connection between source and display

• Supports automatic switching, following the last-in-first-out rule

• Includes analog audio input pass-through for audio distribution

• Supports USB 2.0 pass-through over HDBaseT up to 230 feet for device control

• Power over HDBaseT (PoH), enabling the wall plate to be powered by the receiver for installation flexibility

• Supports firmware upgrades and device control via Micro USB port

• Utilizes HDBaseT Chipset VS210 for simplified installations
