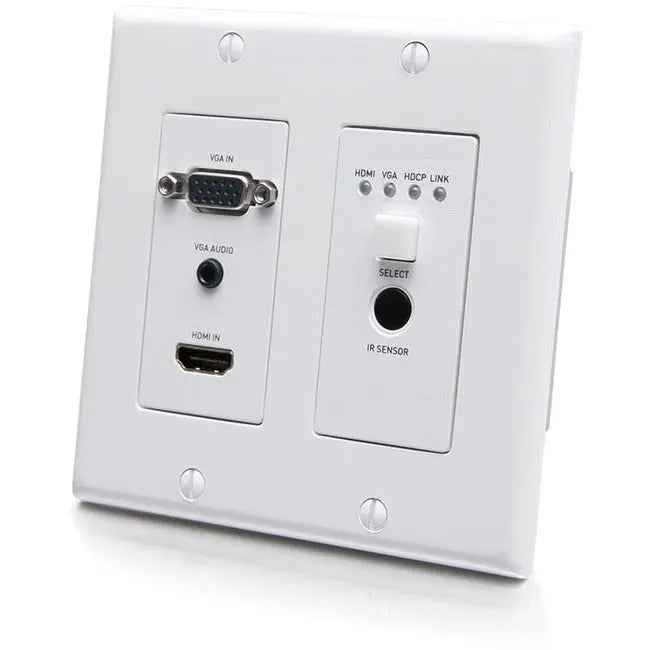

Legrand Group C2G HDBaseT HDMI & VGA Wall Plate Transmitter - 4K 60Hz, IR & RS232 Support

C2G HDBaseT HDMI Extender + VGA, 3.5mm, RS232 and IR over Cat - Dual Gang HDMI Wall Plate Transmitter - 4K 60Hz

The Legrand Group C2G C2G30017 is a versatile wall plate transmitter designed for extending high-definition video and audio signals over Ethernet cables. Featuring HDMI and VGA inputs, this device supports 4K resolution at 60Hz (4:2:0) up to 130 feet using a Cat6a cable, making it ideal for conference rooms, classrooms, or lecture halls where long-distance signal transmission is required. The transmitter also supports 1080p VGA resolutions up to 230 feet with Cat6a or longer distances with Cat5e/6 cables, providing flexibility for various installation scenarios. Its compact wall plate form factor allows seamless integration into existing infrastructure, maintaining a professional appearance.

Built with advanced features, the transmitter is HDCP 2.2 compliant, ensuring secure and encrypted connections between the source and display devices. It supports PoC (Power over Cable) with PD, enabling power to be supplied from an HDBaseT receiver with a PSE module, reducing the need for additional power adapters. The device also offers independent DIP switches for VGA EDID management, allowing users to customize display resolutions and audio settings. Pass-through IR and RS232 support provide additional control options, facilitating integration with remote control systems or automation setups.

This high-performance extender is constructed with quality components to ensure reliable operation and includes a limited 5-year warranty. Its black finish complements most professional environments. Designed by Legrand Group, the C2G HDBaseT HDMI & VGA Wall Plate Transmitter combines robust functionality with easy installation, making it a dependable choice for extending high-resolution signals over Ethernet cabling while maintaining a clean, professional appearance.

Features:

• Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable

• Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable

• Supports VGA resolutions up to 1920x1200 at 60Hz

• Supports auto switching for seamless source management

• HDCP 2.2 compliant for secure, encrypted connections

• All audio inputs support EDID – fixed at PCM 2CH for consistent audio performance

• HDMI input supports EDID copied from HDBaseT receiver for compatibility

• Independent DIP switch for VGA EDID management

• Supports IR pass-through for remote control extension

• Supports RS232 pass-through for device control over Ethernet

• Supports Power over Cable (PoC) with PD, eliminating the need for an external power supply
