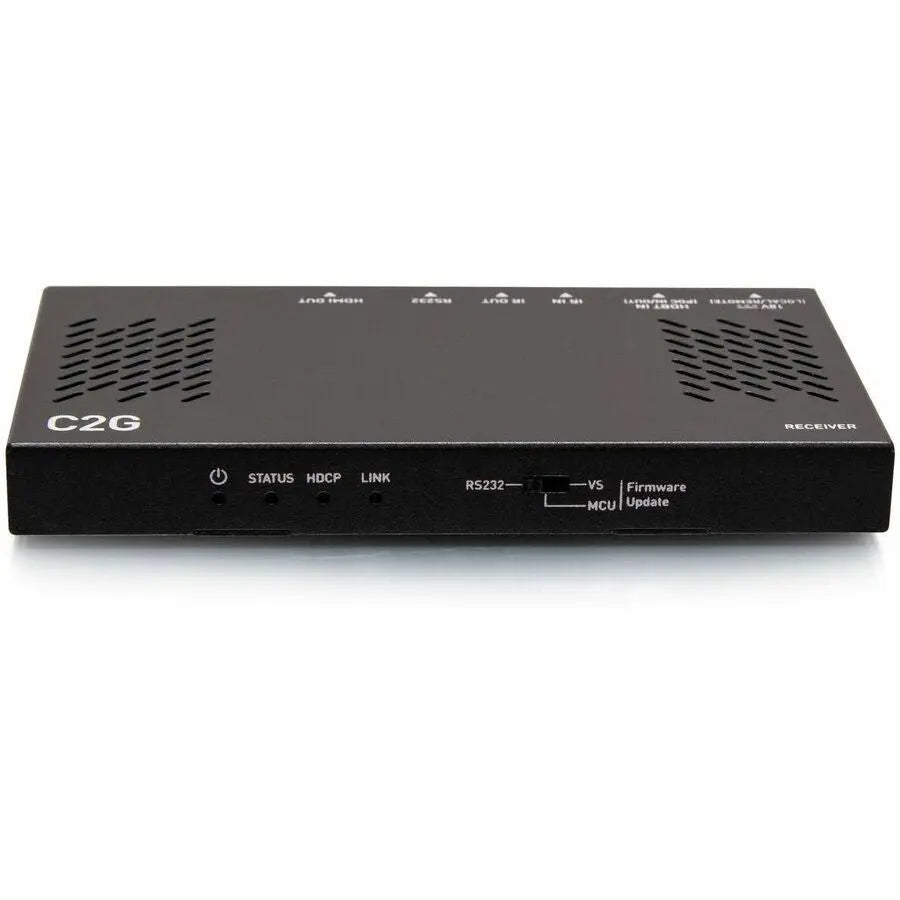

Legrand Group C2G HDMI Ultra-Slim HDBaseT + RS232 and IR Over Cat Extender Receiver – 4K 60Hz

C2G HDMI Ultra-SlimHDBaseT + RS232 And IR Over Cat Extender Box Receiver - 4K 60Hz

The Legrand Group C2G HDMI Ultra-Slim HDBaseT + RS232 and IR Over Cat Extender Receiver is designed for professional AV installations requiring reliable 4K video extension from source to display over long distances. This compact, black receiver extends 4K signals at 60Hz (4:2:0) up to 130 feet using a single Cat6a Ethernet cable, making it ideal for conference rooms, classrooms, and lecture halls where high-resolution video clarity is essential. It also supports 1080p at 60Hz up to 230 feet with Cat 5e or Cat 6 cables, providing versatile options for various installation environments.

Equipped with HDCP 2.2 compliance, this receiver ensures secure and protected content transmission, suitable for HDCP-protected media. The HDBaseT chipset VS210 simplifies installation, while support for CEC pass-through enables centralized control of all connected HDMI devices. The bi-directional IR and RS232 pass-through features facilitate remote control of connected equipment, reducing the need for additional control wiring. The PoC (Power over Cable) support allows a single power adapter at either the transmitter or receiver side to power both units, streamlining setup and reducing clutter. Firmware upgrades via RS232 port ensure the system remains current and reliable over time.

This receiver is compatible with several transmitters, including models C2G30014, C2G30017, C2G30018, C2G30021, and C2G30022, providing flexibility for various deployment configurations. Its durable construction and compact size make it suitable for commercial applications where space and performance are critical. For optimal performance, use shielded, solid conductor Cat6a cables and HDMI cables with gripping connectors to ensure secure connections and reduce signal loss. Whether upgrading existing installations or deploying new systems, this HDBaseT receiver offers high-quality, long-distance 4K video extension with advanced control features.

Features:

• Extend 4K at 60Hz (4:2:0) up to 130 feet and 1080p at 60Hz up to 230 feet with Cat 6a cable

• Extend 4K at 60Hz (4:2:0) up to 115 feet and 1080p at 60Hz up to 200 feet with Cat 5e/6 cable

• HDCP 2.2 compliant, ensuring secure and protected content transmission

• HDBaseT Chipset VS210 facilitates simplified installation processes

• Supports CEC pass-through for centralized device control

• Supports bi-directional IR and RS232 pass-through for remote device management

• Bi-directional PoC allows a single power supply to power both transmitter and receiver units

• Compatible with multiple transmitters including C2G30014, C2G30017, C2G30018, C2G30021, and C2G30022
