Lenco Marine 101 Standard 24V Electric Actuator with 2-1/4 Inch Stroke and Mounting Hardware

101 Actuator- 24 Volt- 2-1/4 Stroke with Mounting Hardware

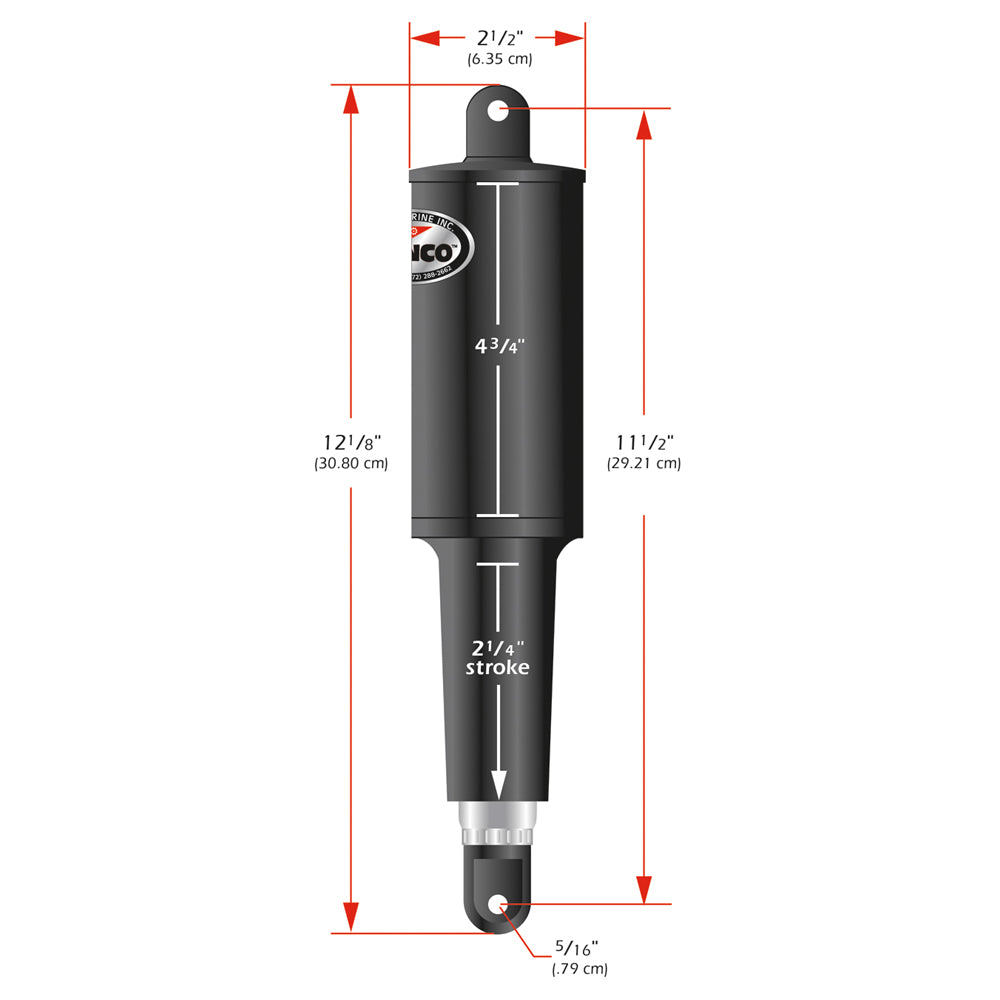

The 101 Actuator is used in all Standard, Edge Mount and Standard Performance kits. 2.25 stroke. Overall length (tip to top) is 12.5 inches. Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.

Specifications:

• Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
• Stronger top cap and mounting clevis design
• Improved pressure-tight torx screws
• Integrated wiper seal at actuator base
• Molded-in brass thrust bearing design
• Thicker and stronger motor housing wall
• Improved O-Ring design for more consistent seal
• Over-molded cable providing a stronger tighter seal
• Upper mounting bracket with gland seal

Features:

• Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
• Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
• Lenco Actuator connections use waterproof "Plug Play" Deutsch connectors eliminating the possibility of water intrusion.
• 24 Volt
• 5/16" mounting hardware
• 6 foot cable

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Lenco Marine 101 Standard Electric Actuator is designed for reliable performance in various marine applications, including standard, edge mount, and performance kits. With a 2-1/4 inch stroke length, this actuator offers precise movement control suitable for demanding environments. Constructed from high-impact, ultraviolet-resistant nylon reinforced with glass fiber, it ensures durability and resistance to harsh marine conditions. The stainless steel tubing adds strength and corrosion resistance, making it ideal for long-term use in saltwater environments. This actuator features an integrated wiper seal at the base and an over-molded cable for a stronger, tighter seal, preventing water intrusion and ensuring consistent operation. The newly implemented Anti Extrusion Ring (AXR) seal stabilization system enhances sealing performance, while the molded-in brass thrust bearing provides smooth motion and longevity. A thicker, more robust motor housing wall improves durability, and the improved O-Ring design ensures reliable sealing over time. The upper mounting bracket includes a gland seal, simplifying installation and maintenance. The 24V power supply delivers ample power for demanding tasks, with a 6-foot cable for flexible installation options. The actuator's waterproof Deutsch connectors facilitate quick, secure connections, reducing installation time and preventing water ingress. The ball screw design used by Lenco offers a reliable, high-torque solution, capable of pushing up to 500 pounds with ease, making this actuator suitable for heavy-duty applications. Whether controlling trim tabs or other marine equipment, this actuator delivers consistent, powerful performance. Please note that this product contains chemicals known to cause reproductive harm according to California's Proposition 65. For more information, visit P65Warnings.ca.gov. As this product may not be returned to the point of purchase, it is recommended to contact Lenco Marine directly for any issues or concerns.

Features:

• High-impact, UV-resistant nylon construction with stainless steel tubing for durability in harsh marine environments

• 2-1/4 inch stroke length providing precise movement control

• Anti Extrusion Ring (AXR) seal stabilization system enhances sealing performance

• Robust top cap and mounting clevis design for increased strength

• Improved pressure-tight torx screws ensure secure assembly

• Integrated wiper seal at the actuator base for protection against contaminants

• Molded-in brass thrust bearing facilitates smooth operation and longevity

• Thicker, stronger motor housing wall improves durability

• Enhanced O-Ring design for consistent sealing

• Over-molded cable with a waterproof Deutsch connector for reliable connections

• Ball screw design offers more reliable and twice as powerful performance compared to typical hydraulics

• Capable of pushing up to 500 pounds of force

• Includes waterproof "Plug & Play" Deutsch connectors for easy installation

• Operates on 24 Volts with a 6-foot cable for flexible mounting options
