Lenco Marine 102XD Extreme Duty Electric Actuator - 24V, 4-1/4 Inch Stroke with Mounting Hardware

102 XD Actuator- 24 Volt- 4-1/2 Stroke with Mounting Hardware

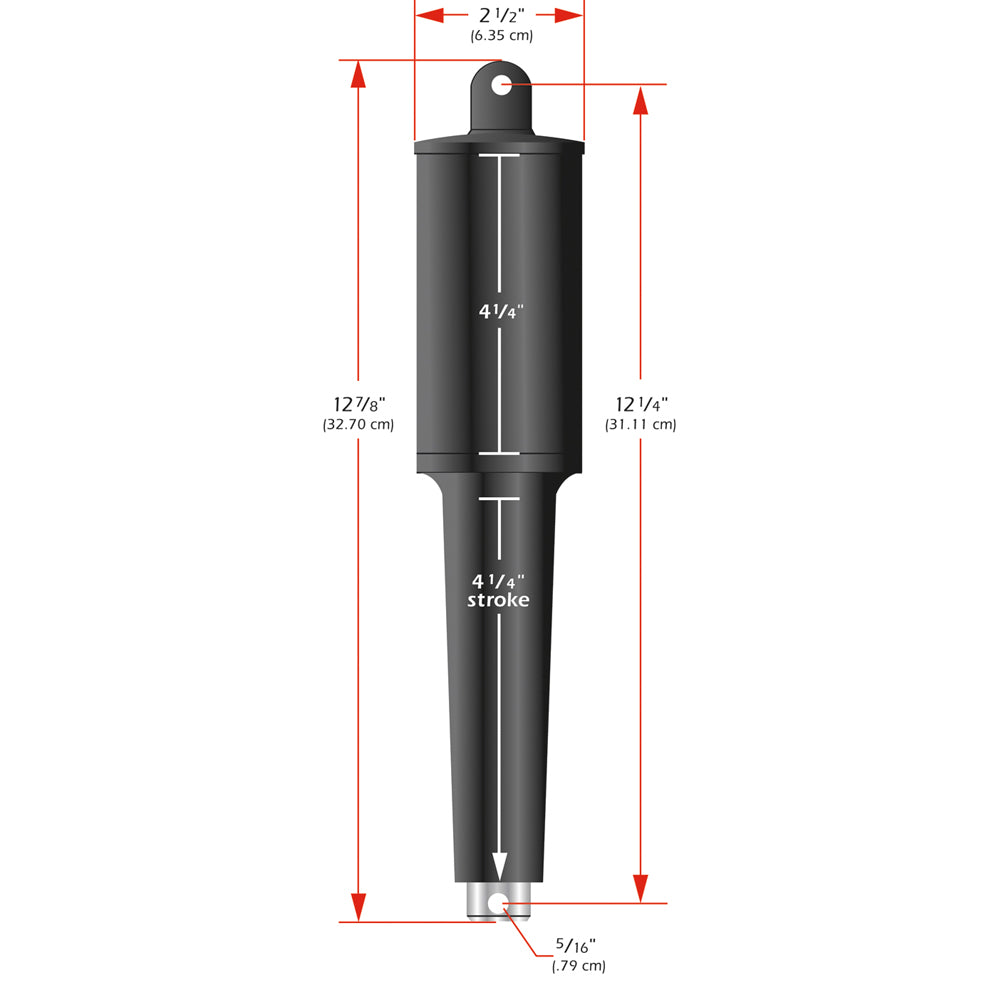

The 102 XD Actuator is used with Trolling Tab systems sold after 2000 and OEM applications. 4.25 stroke. Overall length (tip to tip) is 13.25 inches. Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.

Specifications:

• Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
• Stronger top cap and mounting clevis design
• Improved pressure-tight torx screws
• Integrated wiper seal at actuator base
• Molded-in brass thrust bearing design
• Thicker and stronger motor housing wall
• Improved O-Ring design for more consistent seal
• Over-molded cable providing a stronger tighter seal
• Upper mounting bracket with gland seal

Features:

• Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
• Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
• Lenco Actuator connections use waterproof "Plug Play" Deutsch connectors eliminating the possibility of water intrusion.
• 24 Volt
• 5/16" mounting hardware
• 6 foot cable

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Lenco Marine 102XD Extreme Duty Electric Actuator is designed for reliable performance in trolling tab systems and OEM applications manufactured after 2000. Featuring a 4-1/4 inch stroke, this high-torque actuator offers precise control and durable operation. Its overall length measures approximately 13.25 inches, making it suitable for a wide range of boating applications. Constructed from high impact glass fiber filled, ultraviolet-resistant nylon and reinforced with 316 stainless steel tubing, this actuator is built to withstand harsh marine environments. The advanced design includes an integrated wiper seal at the base and a molded-in brass thrust bearing for smooth, consistent movement. The thicker, stronger motor housing enhances durability while the improved pressure-tight torx screws and anti-extrusion ring (AXR) seal stabilization system ensure optimal sealing and protection against water intrusion. The upper mounting bracket features a gland seal, providing additional security against moisture ingress. The actuator's robust motor is capable of pushing up to 500 pounds, thanks to Lenco’s reliable ballscrew design, which is twice as powerful as typical hydraulic systems. The waterproof “Plug and Play” Deutsch connectors simplify installation and eliminate water intrusion risks, ensuring a secure electrical connection. The actuator operates on 24 volts and includes a 6-foot cable, with 5/16-inch mounting hardware for straightforward setup. This product is ideal for boaters seeking dependable, high-performance marine equipment with enhanced sealing and structural features for long-term durability.

Features:

• Lenco's ballscrew design provides reliable operation and twice the power of typical hydraulic actuators

• Capable of pushing up to 500 pounds for heavy-duty applications

• Waterproof Deutsch connectors ensure secure, water-resistant electrical connections

• Operates on 24 volts with a 6-foot cable for flexible installation

• Includes 5/16-inch mounting hardware for easy setup

• Constructed from impact-resistant, UV-stable nylon with stainless steel tubing for durability

• Integrated wiper seal and anti-extrusion ring (AXR) for optimal sealing

• Thicker, reinforced motor housing enhances longevity

• Gland seal-equipped upper mounting bracket for added moisture protection
