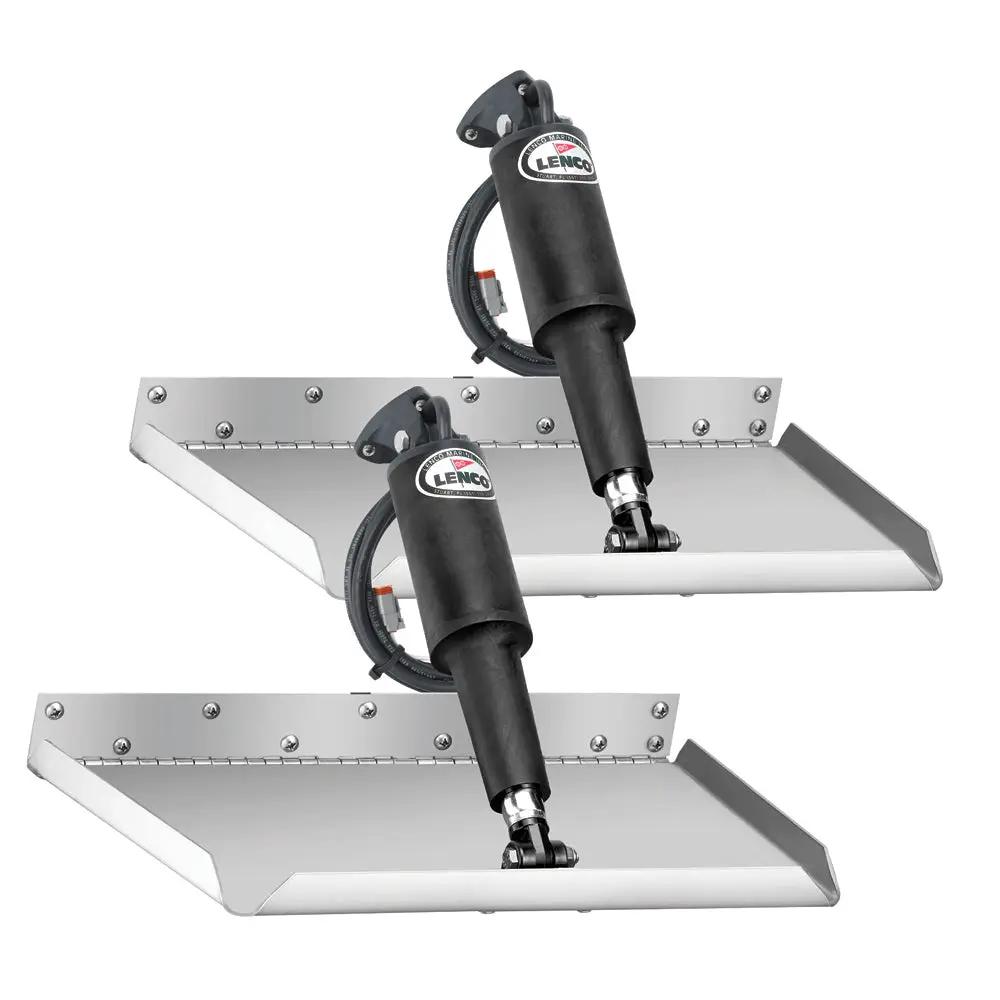

Lenco TT12X9EI Edgemount Trim Tab Kit with LED

The edge-mount design places the actuators at the trailing edge, reducing transom height by four inches for a clean, low-profile installation while delivering precise, instant trim control. The 12x9 stainless trim tab planes, paired with self-locking ballscrews, provide reliable, drift-free performance and quick response for riders who demand controlled handling in varying conditions.

Built to endure marine environments, every component is fully sealed and maintenance-free. Actuators feature UV-resistant nylon cases and 316 stainless steel rams, and the system is oil-free and submersible. A built-in retract function automatically returns the tabs to their stowed position when power is removed, enhancing safety and ease of use.

Real-time feedback and visibility come from high-intensity LED indicators. An ambient light sensor automatically adjusts display brightness for readability in direct sunlight. The control is compatible with both 12V and 24V systems and uses plug-and-play wiring for straightforward installation with minimal wiring fuss.

The TT12X9EI kit includes everything needed for a complete install: two actuators with 6' leads and Deutsch plugs, two 20' actuator extension wiring harnesses, two 12-gauge stainless trim tab planes (12" x 9"), two upper mounting brackets with gland seals, two lower mounting brackets, all stainless mounting hardware, a tactile LED indicator switch kit with sealed keypad and retract feature, a 36" power pigtail for the control box, and a 2" hole cut-out size (overall switch size 2.75" x 2.75").

• 2 actuators with 6' leads and Deutsch plugs
• 2 actuator extension wiring harnesses (20')
• 2 12" x 9" stainless trim tab planes
• 2 upper mounting brackets with gland seals
• 2 lower mounting brackets
• All stainless mounting hardware
• Tactile LED indicator switch with retract feature
• 36" power pigtail and plug-and-play wiring harnesses
• 2" hole cut-out, 2.75" x 2.75" switch
• 12V/24V compatible

Contains di(2-ethylhexyl)phthalate (DEHP); P65Warnings.ca.gov for safety information.

Edge Mount

Mounts the actuator at the trailing edge of the plane, requiring 4 less transom height than standard mount

Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious.

• Instant response electric actuators for precise control

• Everything is fully submersible, maintenance-free and sealed for life

• Self-locking ballscrew will not drift, even while backing down

• 12-gauge laser cut stainless steel trim tab planes

• High-impact corrosion-proof mounts look great through years of abuse

• Clean, time and space-saving installation

• Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case

• 316 super buff stainless steel rams

Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab Systems
Features:

• Self-contained, sealed keypad

• Self-contained, sealed control box module

• Fade/smudge-proof, laser engraved graphics

• Plug & play switch wiring harness connector

• Includes 36" power pigtail for control box

• 2" hole cut-out size, overall size 2.75" x 2.75"

• Built-in retract feature returns tabs to a fully retracted position when power is removed

• 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times

• Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight

• 12 & 24-volt compatibility

• Includes Self-Check Feature

Each Kit Includes:

• Tactile LED Indicator Switch Kit

• 2 Actuators with 6' lead & Deutsch Plugs

• 2 20' Actuator Extension Wiring Harness

• 2 12 gauge Stainless steel trim tab planes

• 2 Upper Mounting Bracket with Gland Seal

• 2 Lower Mounting Bracket

• All stainless steel mounting hardware

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

The Lenco Marine TT12X9EI Edgemount Trim Tab Kit is designed for optimal performance and ease of installation on a variety of boats. This kit features an innovative edge mount design that allows you to mount the actuator at the trailing edge of your vessel, reducing transom height requirements by four inches compared to standard mounts. This streamlined design provides a clean, low-profile installation that saves space and enhances aesthetics. Built with high-impact, corrosion-proof stainless steel trim tab planes and UV-resistant nylon cases, the components are engineered for durability and long-term reliability in harsh marine environments. The kit includes two 12-inch by 9-inch stainless steel trim tab planes, two heavy-duty actuators with 6-foot leads and Deutsch plugs, and all necessary stainless steel mounting hardware. The actuators incorporate self-locking ballscrew technology with instant response, making control precise, quick, and user-friendly while eliminating maintenance concerns associated with hydraulics. The sealed, oil-free design is environmentally conscious and fully submersible, ensuring reliable operation over time. The included tactile LED indicator switch features a sealed keypad, a built-in retract function for safety, and high-intensity LED displays that show the exact position of each trim tab at all times. Ambient light sensing adjusts LED brightness for visibility in direct sunlight, and the switch supports both 12 and 24 volts for versatile application. This comprehensive kit simplifies installation with plug-and-play wiring harnesses, includes a 36-inch power pigtail, and features a compact 2.75-inch square control switch with fade-proof, laser-engraved graphics. Whether for small skiffs or large yachts, the Lenco Marine Edgemount Trim Tab Kit enhances ride quality, safety, and vessel performance, making it an essential upgrade for serious boaters seeking precise control and durability in their trim tab system.

Features:

• Edge mount design reduces transom height requirements by 4 inches

• Instant response electric actuators for precise control

• Fully sealed, maintenance-free, and submersible components

• Self-locking ballscrew prevents drift even while backing down

• High-impact, corrosion-proof stainless steel trim tab planes

• UV-resistant nylon actuator cases for durability

• Includes tactile LED indicator switch with built-in retract feature

• High-intensity LED indicators for real-time trim position display

• Ambient light sensor adjusts LED brightness for clarity in sunlight

• Compatible with 12 and 24-volt electrical systems

• Complete kit includes actuators, trim tabs, mounting hardware, and wiring harnesses
