Lenco Marine 15055-001 101XD Extreme Duty 12V Actuator with 2-1/4 inch Stroke and Mounting Hardware

101 XD Actuator- 12 Volt- 2-1/4 Stroke with Mounting Hardware

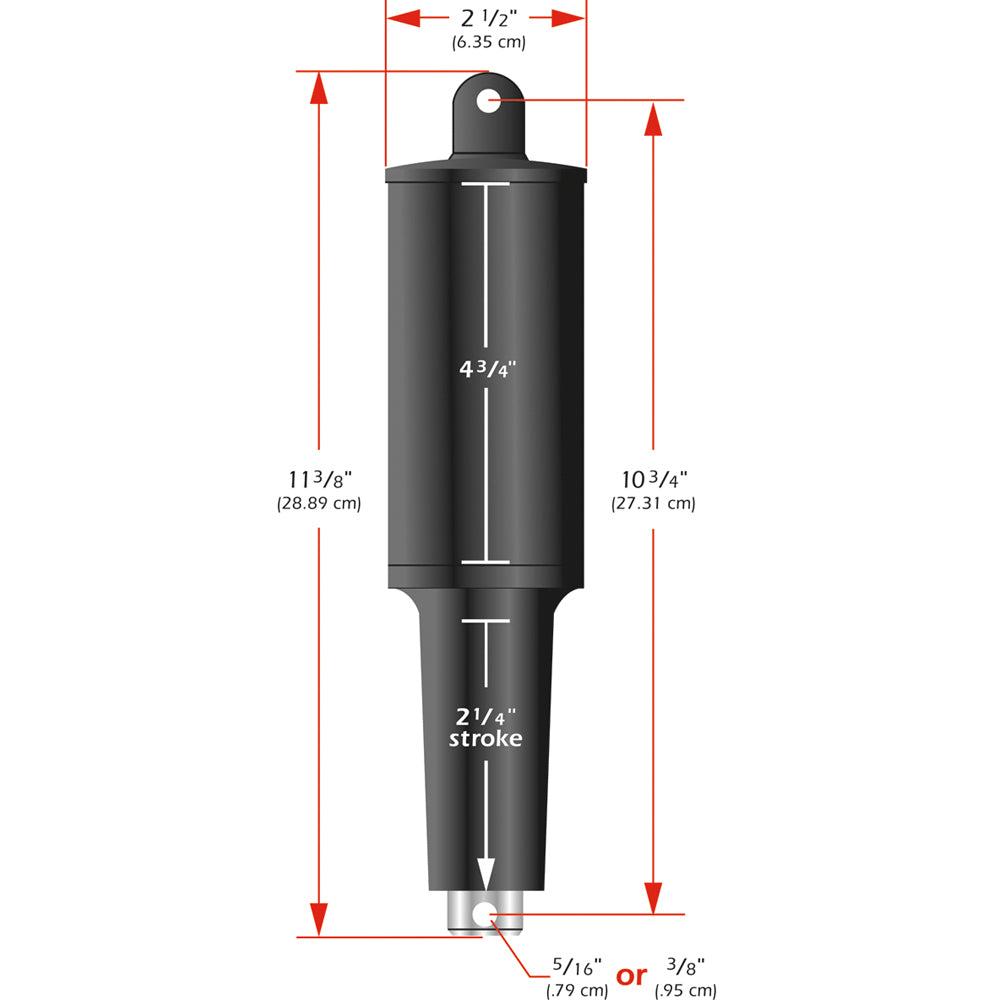

The 101 XD Actuator is used mostly with HD, XD, High Performance and Super Strong tabs. 2.25 stroke. Overall length (tip to tip) is 11^3/8inches. Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.

Specifications:

• Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
• Stronger top cap and mounting clevis design
• Improved pressure-tight torx screws
• Integrated wiper seal at actuator base
• Molded-in brass thrust bearing design
• Thicker and stronger motor housing wall
• Improved O-Ring design for more consistent seal
• Over-molded cable providing a stronger tighter seal
• Upper mounting bracket with gland seal

Features:

• Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
• Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
• Lenco Actuator connections use waterproof "Plug Play" Deutsch connectors eliminating the possibility of water intrusion.
• 12 Volt
• 5/16" mounting hardware
• 6 foot cable

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Lenco Marine 15055-001 101XD Extreme Duty actuator is designed for high-performance applications requiring reliable electric actuation. Constructed from high-impact glass fiber-filled, ultraviolet-resistant nylon, this 12-volt actuator features a rugged design that ensures durability in demanding environments. The actuator provides a 2-1/4 inch stroke with an overall length of approximately 11 3/8 inches, making it suitable for various marine and heavy-duty uses. Its stainless steel tubing and reinforced housing contribute to its robustness, while the integrated wiper seal at the base offers enhanced protection against water and debris ingress. The newly implemented Anti Extrusion Ring (AXR) seal stabilization system and improved pressure-tight torx screws ensure a more secure and leak-resistant operation. Additionally, the molded-in brass thrust bearing and thicker motor housing wall increase longevity and performance under heavy loads. The actuator's over-molded cable with a gland seal further prevents water intrusion, making it suitable for marine environments. Features include a reliable ballscrew design that is twice as powerful as typical hydraulic systems, capable of pushing up to 500 pounds. The waterproof Deutsch 'Plug & Play' connectors simplify installation by eliminating water intrusion risks. With a 6-foot cable and 5/16-inch mounting hardware, this actuator offers versatile and straightforward mounting options. Whether used with high-performance tabs or heavy-duty applications, the Lenco 101XD provides instant response and dependable operation for demanding users. Please note, this product contains chemicals known to the State of California to cause reproductive harm, and it is recommended to contact the manufacturer for any support or concerns as returns to the original point of purchase may not be possible.

Features:

• Lenco's ballscrew design offers more reliability and twice the power of typical hydraulic actuators

• High-torque motor easily pushes up to 500 pounds

• Waterproof Deutsch 'Plug & Play' connectors prevent water intrusion

• 12 Volt power supply ensures consistent performance

• Includes 5/16 inch mounting hardware and 6-foot cable for easy installation
