Lenco Marine 15056-001 101XD Extreme Duty 12V Actuator with 2-1/4 Inch Stroke and Mounting Hardware

101 XD Actuator- 12 Volt- 2-1/4 Stroke with Mounting Hardware

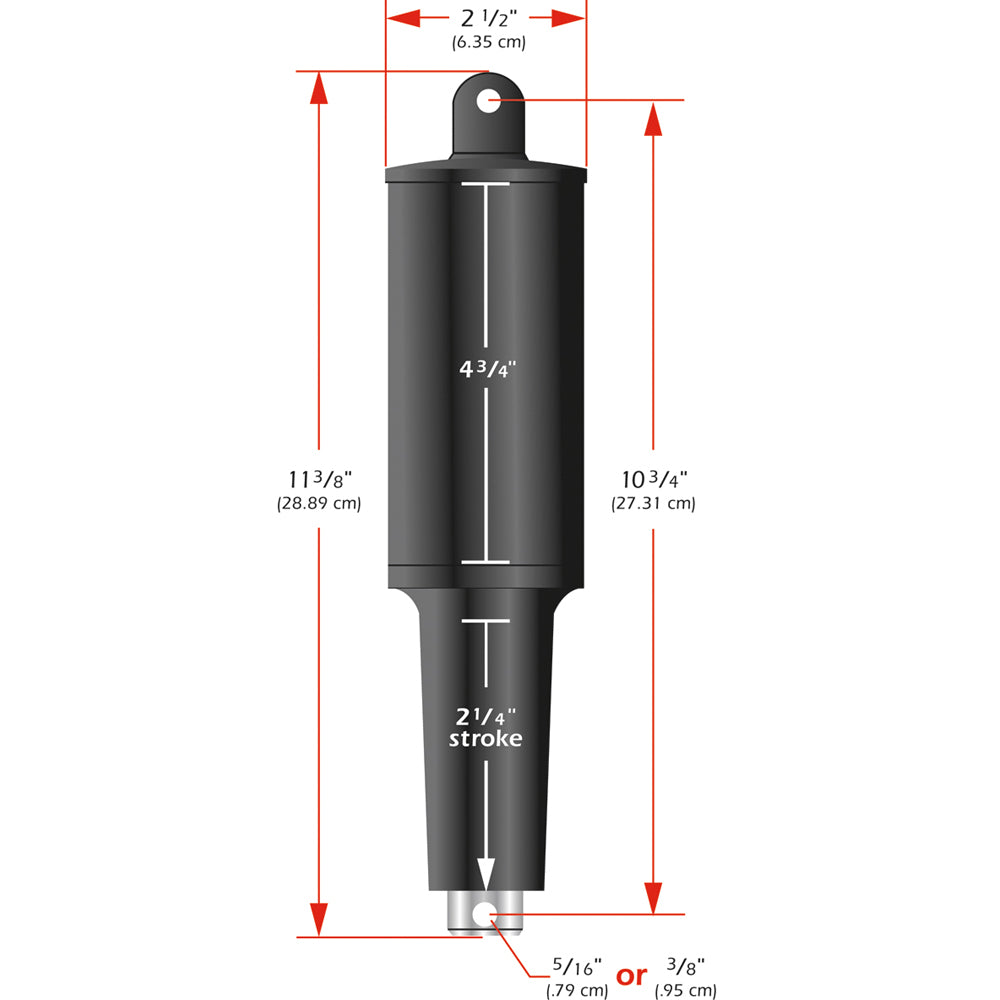

The 101 XD Actuator is used mostly with HD, XD, High Performance and Super Strong tabs. 2.25 stroke. Overall length (tip to tip) is 11^3/8 inches. Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.

Specifications:

• Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
• Stronger top cap and mounting clevis design
• Improved pressure-tight torx screws
• Integrated wiper seal at actuator base
• Molded-in brass thrust bearing design
• Thicker and stronger motor housing wall
• Improved O-Ring design for more consistent seal
• Over-molded cable providing a stronger tighter seal
• Upper mounting bracket with gland seal

Features:

• Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
• Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
• Lenco Actuator connections use waterproof "Plug Play" Deutsch connectors eliminating the possibility of water intrusion.
• 12 Volt
• 3/8" mounting hardware
• 6 foot cable

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Lenco Marine 15056-001 101XD Extreme Duty 12V Actuator is designed for high-performance applications requiring reliable and powerful motion control. With a 2-1/4 inch stroke, this actuator extends and retracts with precision, making it ideal for heavy-duty tabs on boats and marine vessels. Its overall length of approximately 11 3/8 inches ensures compatibility with a variety of mounting configurations. Constructed from high-impact glass fiber-filled, ultraviolet-resistant nylon and reinforced with 316 stainless steel tubing, this actuator offers excellent durability and resistance to harsh marine environments. The integrated features, such as the molded-in brass thrust bearing and improved O-ring seals, enhance sealing integrity and longevity, reducing maintenance needs and preventing water intrusion. The anti-extrusion ring (AXR) seal stabilization system further ensures consistent performance under demanding conditions. The actuator’s top cap and mounting clevis are reinforced for added strength, while the pressure-tight torx screws and over-molded cable contribute to a secure and weatherproof setup. The upper mounting bracket with gland seal provides additional protection and stability, making it suitable for demanding marine applications. This model includes a 6-foot waterproof cable and uses waterproof Deutsch 'Plug and Play' connectors, simplifying installation and ensuring reliable electrical connections. The Lenco 101XD actuator features the company's innovative ballscrew design, which offers twice the power and reliability compared to traditional hydraulic systems. Its high-torque motor can easily push loads up to 500 pounds, providing robust performance for heavy-duty tabs and trim systems. Designed for 12-volt systems, this actuator is suitable for a wide range of marine power setups. Please note that this product contains chemicals known to the State of California to cause reproductive harm, and proper handling is recommended.

Features:

• Lenco's ballscrew design offers increased reliability and twice the power compared to typical hydraulic actuators

• High-torque motor capable of pushing up to 500 pounds

• Waterproof Deutsch 'Plug and Play' connectors eliminate water intrusion risks

• Constructed from high-impact, ultraviolet-resistant nylon with stainless steel tubing for durability

• Enhanced sealing with integrated wiper seal, improved O-ring design, and gland seal for superior protection

• 6-foot waterproof cable included for easy installation

• Reinforced top cap and mounting clevis for added strength and stability

• Newly implemented Anti Extrusion Ring (AXR) seal stabilization system ensures consistent performance

• Molded-in brass thrust bearing and thicker motor housing walls for durability

• Designed for 12-volt systems suitable for heavy-duty marine applications
