Lenco Marine 15056-002 101 XD Extreme Duty 12V Electric Actuator with Mounting Hardware

101 XD Actuator- 12 Volt- 2-1/4 Stroke with Mounting Hardware

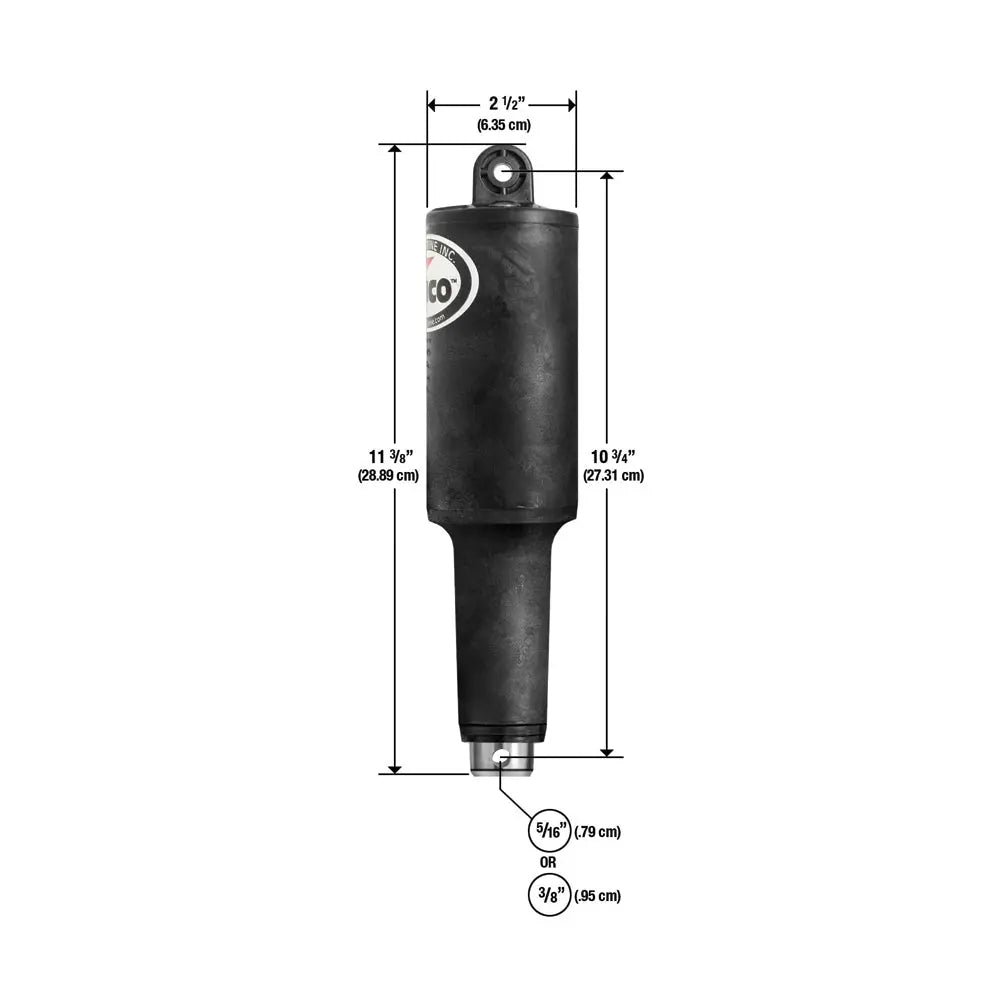

The 101 XD Actuator is used mostly with HD, XD, High Performance and Super Strong tabs. 2.25 stroke. Overall length (tip to tip) is 11^3/8 inches. Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.

Specifications:

• Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
• Stronger top cap and mounting clevis design
• Improved pressure-tight torx screws
• Integrated wiper seal at actuator base
• Molded-in brass thrust bearing design
• Thicker and stronger motor housing wall
• Improved O-Ring design for more consistent seal
• Over-molded cable providing a stronger tighter seal
• Upper mounting bracket with gland seal

Features:

• Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
• Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
• Lenco Actuator connections use waterproof "Plug Play" Deutsch connectors eliminating the possibility of water intrusion.
• 12 Volt
• 5/16" upper and 3/8" lower mounting hardware
• 6 foot cable

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Lenco Marine 15056-002 101 XD Extreme Duty 12V electric actuator is designed for high-performance applications, especially with HD, XD, and Super Strong tabs. Featuring a 2-1/4 inch stroke, the actuator's overall length is approximately 11-3/8 inches, making it suitable for demanding marine and industrial environments. Constructed from high-impact glass fiber-filled, ultraviolet-resistant nylon and reinforced with 316 stainless steel tubing, this actuator offers durability and resistance to harsh conditions. Its robust design ensures reliable operation in challenging circumstances, with a focus on longevity and consistent performance. The 101 XD model incorporates advanced features such as the Anti Extrusion Ring (AXR) seal stabilization system, a stronger top cap and mounting clevis, and improved pressure-tight torx screws, all contributing to enhanced sealing and structural integrity. An integrated wiper seal at the base helps prevent contaminants from compromising internal components, while the molded-in brass thrust bearing ensures smooth motion. The thicker, sturdier motor housing walls further improve durability, and the upgraded O-Ring design provides a more reliable seal. The over-molded cable enhances sealing and reduces the risk of water intrusion. The actuator's upper mounting bracket includes a gland seal for added protection against moisture. Designed with Lenco's reliable ballscrew mechanism, this actuator delivers twice the power and dependability of typical hydraulic systems, easily pushing up to 500 pounds of force. The waterproof Deutsch "Plug & Play" connectors streamline installation and protect against water ingress. The actuator operates on 12 volts and includes 5/16 inch upper and 3/8 inch lower mounting hardware, with a 6-foot cable length for flexible installation options. Warning: This product may expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to cause cancer, birth defects, or reproductive harm in California. For more information, visit P65Warnings.ca.gov. Please note that this product may not be returned to the original point of purchase; contact the manufacturer directly for any issues or concerns.

Features:

• Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics

• High-torque motor easily pushes 500 pounds

• Waterproof "Plug & Play" Deutsch connectors prevent water intrusion

• Operates on 12 volts

• Includes 5/16" upper and 3/8" lower mounting hardware

• Six-foot cable for flexible installation
