Lenco Marine 15058-001 101XDS Short Extreme Duty 12V Electric Actuator with 2-1/4 Inch Stroke and Mounting Hardware

101XDS Short Extreme Duty Actuator - 12V - 2-1/4 Stroke with Mounting Hardware

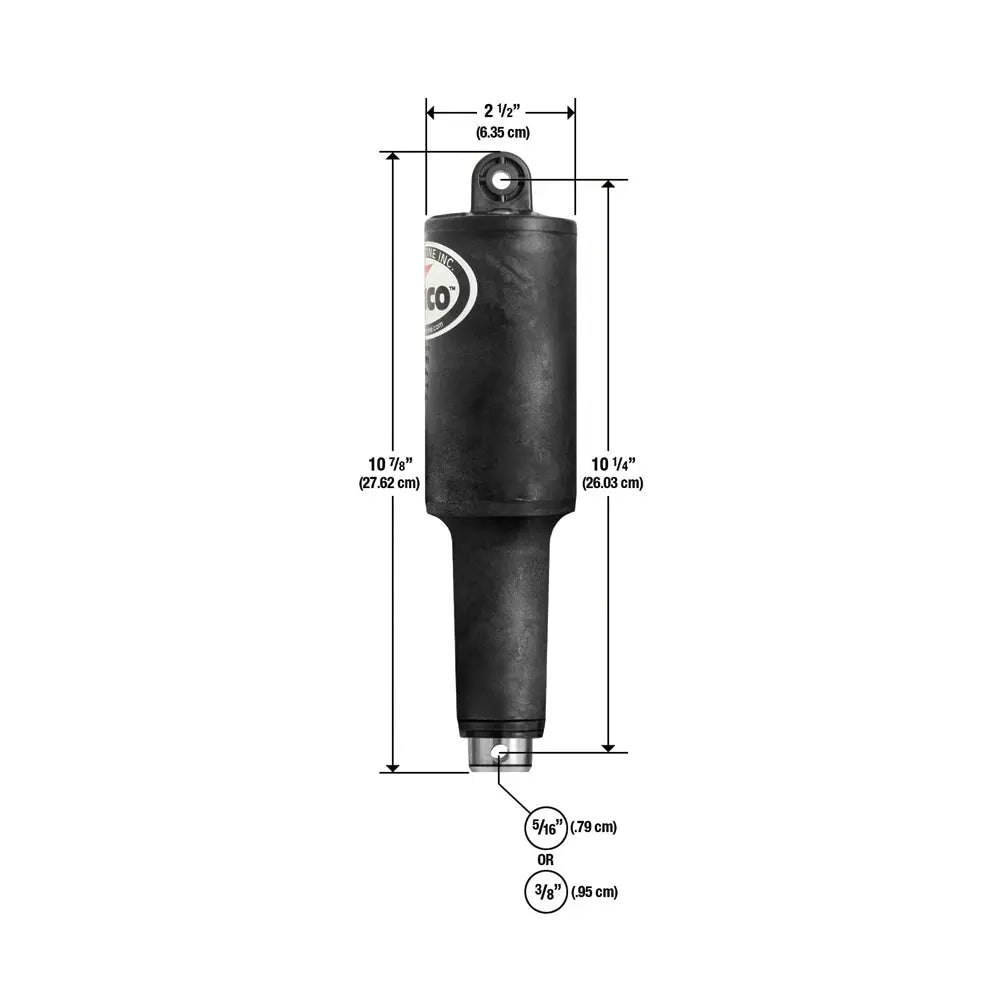

The 101 XDS Actuator is used with OEM specific kits and limited space applications. It is the shortest actuator manufactured. 2.25 stroke and overal length (tip to tip) is 10 ^7/8 inches. Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.

Specifications:

• Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
• Stronger top cap and mounting clevis design
• Improved pressure-tight torx screws
• Integrated wiper seal at actuator base
• Molded-in brass thrust bearing design
• Thicker and stronger motor housing wall
• Improved O-Ring design for more consistent seal
• Over-molded cable providing a stronger tighter seal
• Upper mounting bracket with gland seal

Features:

• Lencos ballscrew design is more reliable and twice as powerful compared to typical hydraulics
• Lencos tough, high-torque actuator motor easily pushes 500 pounds.
• Lenco Actuator connections use waterproof Plug Play Deutsch connectors eliminating the possibility of water intrusion.
• 12 Volt
• 3/8 mounting hardware
• 6 foot cable

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Lenco Marine 15058-001 101XDS Short Extreme Duty Electric Actuator is designed for applications where space is limited and reliability is critical. This compact actuator features a 2.25-inch stroke length and an overall length of just under 11 inches, making it ideal for OEM-specific and constrained environments. Constructed from high-impact glass fiber filled, ultraviolet-resistant nylon with stainless steel tubing, it offers durability and resistance to harsh weather conditions. Its robust design ensures consistent performance in demanding marine and industrial settings, providing the power and precision needed for various operational tasks.
The actuator includes several advanced features such as the newly implemented Anti Extrusion Ring (AXR) seal stabilization system for improved sealing and longevity, a stronger top cap and mounting clevis for enhanced durability, and improved pressure-tight torx screws. An integrated wiper seal at the base helps keep contaminants out, while the molded-in brass thrust bearing reduces wear and ensures smooth operation. The thicker motor housing wall provides additional strength, and the over-molded cable creates a tighter, more reliable seal against water intrusion. An upper mounting bracket with gland seal further enhances its resistance to environmental stresses.
Equipped with a powerful Lenco ballscrew design, this actuator provides more reliable and twice the force compared to typical hydraulic systems, capable of pushing up to 500 pounds. Its waterproof Plug & Play Deutsch connectors simplify installation and eliminate water intrusion risks. The actuator operates on 12 volts and comes with 3/8-inch mounting hardware and a 6-foot cable for flexible setup. Whether used in marine, industrial, or other heavy-duty applications, the Lenco 101XDS delivers dependable, high-torque performance with advanced sealing and construction features to withstand challenging conditions.

Features:

• Lenco's ballscrew design offers more reliable and twice as powerful performance compared to standard hydraulic actuators

• High-torque motor easily pushes up to 500 pounds for demanding applications

• Waterproof Plug & Play Deutsch connectors prevent water intrusion and simplify wiring

• Constructed from durable, ultraviolet-resistant nylon with stainless steel tubing for long-lasting use

• Includes advanced sealing features such as Anti Extrusion Ring (AXR) system and molded-in wiper seal for enhanced protection

• Thicker motor housing wall and over-molded cable provide added strength and environmental resistance

• Designed for 12V operation with 3/8-inch mounting hardware and a 6-foot cable for flexible installation
