Lenco Marine 15060-001 102 XD Extreme Duty 12V Actuator with 4-1/4 inch Stroke and Mounting Hardware

102 XD Actuator- 12 Volt- 4-1/2 Stroke with Mounting Hardware

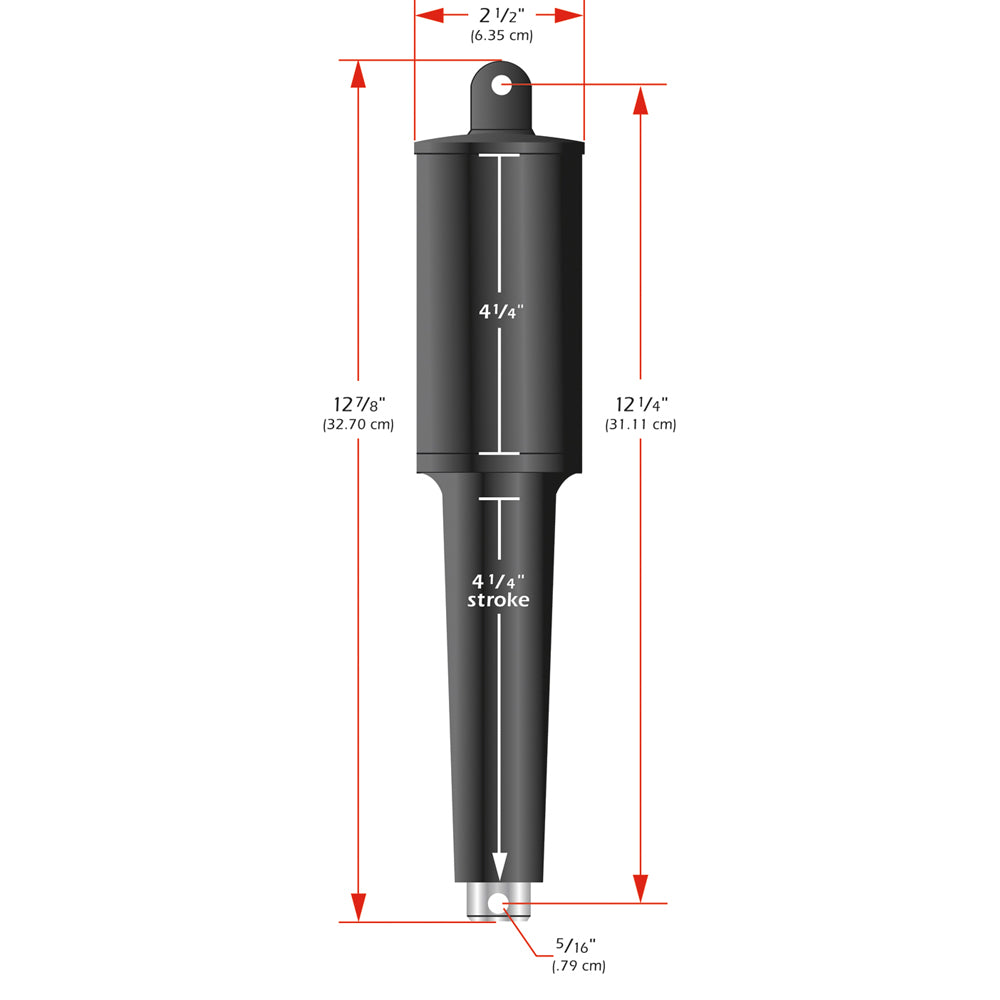

The 102 XD Actuator is used with Trolling Tab systems sold after 2000 and OEM applications. 4.25 stroke. Overall length (tip to tip) is 13 inches. Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.

Specifications:

• Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
• Stronger top cap and mounting clevis design
• Improved pressure-tight torx screws
• Integrated wiper seal at actuator base
• Molded-in brass thrust bearing design
• Thicker and stronger motor housing wall
• Improved O-Ring design for more consistent seal
• Over-molded cable providing a stronger tighter seal
• Upper mounting bracket with gland seal

Features:

• Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
• Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
• Lenco Actuator connections use waterproof "Plug Play" Deutsch connectors eliminating the possibility of water intrusion.
• 12 Volt
• 5/16" mounting hardware
• 6 foot cable

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Lenco Marine 15060-001 102 XD Extreme Duty 12V Actuator is designed for reliable performance in trolling tab systems and OEM applications produced after 2000. Featuring a 4-1/4 inch stroke and a total length of approximately 13 inches from tip to tip, this electric actuator provides quick and precise movements essential for marine operations. Constructed from high-impact, UV-resistant nylon with stainless steel tubing, it ensures durability and resistance to harsh marine environments. The actuator's robust design incorporates a molded brass thrust bearing, thicker motor housing walls, and an improved O-ring sealing system to maintain pressure integrity and prevent water intrusion, ensuring longevity and consistent operation in demanding conditions. The newly implemented Anti Extrusion Ring (AXR) seal stabilization system enhances reliability, while the upgraded top cap and mounting clevis provide increased strength. An integrated wiper seal at the base further protects internal components from moisture and debris, contributing to the actuator’s durability. The over-molded cable and gland-sealed upper mounting bracket deliver a secure, waterproof connection, simplifying installation and maintenance. The Lenco ballscrew design offers twice the power of typical hydraulic systems, easily pushing up to 500 pounds, and the high-torque motor ensures responsive performance. Waterproof Deutsch "Plug & Play" connectors eliminate water intrusion risks, making this actuator ideal for marine environments requiring dependable, high-force actuation. With a 6-foot cable and standard 5/16-inch mounting hardware, it offers flexible installation options. This product is engineered for demanding applications where reliability and power are critical, making it an excellent choice for boaters seeking durable and high-performance trolling system actuators. Please note, this product may contain chemicals subject to California Proposition 65 regulations, and it cannot be returned to the original point of purchase. For issues or concerns, contact the manufacturer directly.

Features:

• Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics

• High-torque actuator motor easily pushes 500 pounds

• Waterproof "Plug & Play" Deutsch connectors prevent water intrusion

• 12 Volt operation ensures compatibility with standard marine electrical systems

• Includes 5/16 inch mounting hardware for versatile installation

• 6-foot cable provides flexible setup options
