Lenco Marine 15063-001 101 XD Extreme Duty 24V Actuator with 2 1/4 Inch Stroke and Mounting Hardware

101 XD Actuator- 24 Volt- 2-1/4 Stroke with Mounting Hardware

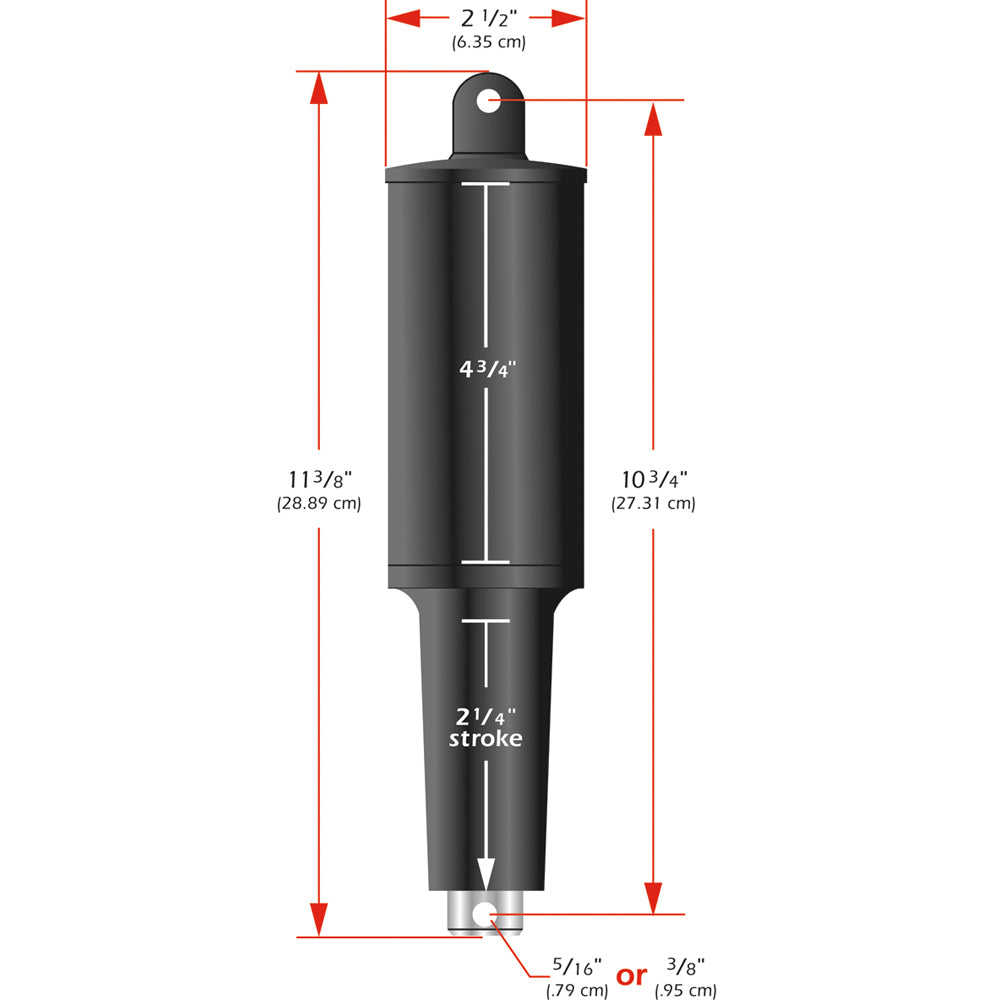

The 101 XD Actuator is used mostly with HD, XD, High Performance and Super Strong tabs. 2.25 stroke. Overall length (tip to tip) is 11^3/8 inches. Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.

Specifications:

• Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
• Stronger top cap and mounting clevis design
• Improved pressure-tight torx screws
• Integrated wiper seal at actuator base
• Molded-in brass thrust bearing design
• Thicker and stronger motor housing wall
• Improved O-Ring design for more consistent seal
• Over-molded cable providing a stronger tighter seal
• Upper mounting bracket with gland seal

Features:

• Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
• Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
• Lenco Actuator connections use waterproof "Plug Play" Deutsch connectors eliminating the possibility of water intrusion.
• 24 Volt
• 3/8" mounting hardware
• 6 foot cable

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Lenco Marine 15063-001 101 XD Extreme Duty 24V actuator is designed for high-performance applications requiring reliable and powerful linear motion. Engineered with a 2.25-inch stroke, this actuator offers smooth and precise movement, making it ideal for use with HD, XD, high-performance, and super-strong tabs. The overall length from tip to tip is approximately 11 3/8 inches, providing versatile installation options. Made from high-impact glass fiber-filled, ultraviolet-resistant nylon and featuring 316 stainless steel tubing, this actuator is built to withstand harsh marine environments and heavy-duty usage. Its robust construction ensures durability and longevity even under demanding conditions. The actuator is equipped with an integrated wiper seal at the base and a molded-in brass thrust bearing, which contribute to its superior sealing and operational stability. New features such as the Anti Extrusion Ring (AXR) seal stabilization system, a strengthened top cap and mounting clevis, and improved pressure-tight torx screws further enhance its reliability. The thicker motor housing wall provides additional protection, while the over-molded cable and gland seal upper mounting bracket ensure a tight, waterproof connection. The design incorporates a high-torque ballscrew mechanism that delivers twice the power of typical hydraulic actuators, capable of pushing up to 500 pounds with ease. Connections utilize waterproof Deutsch
