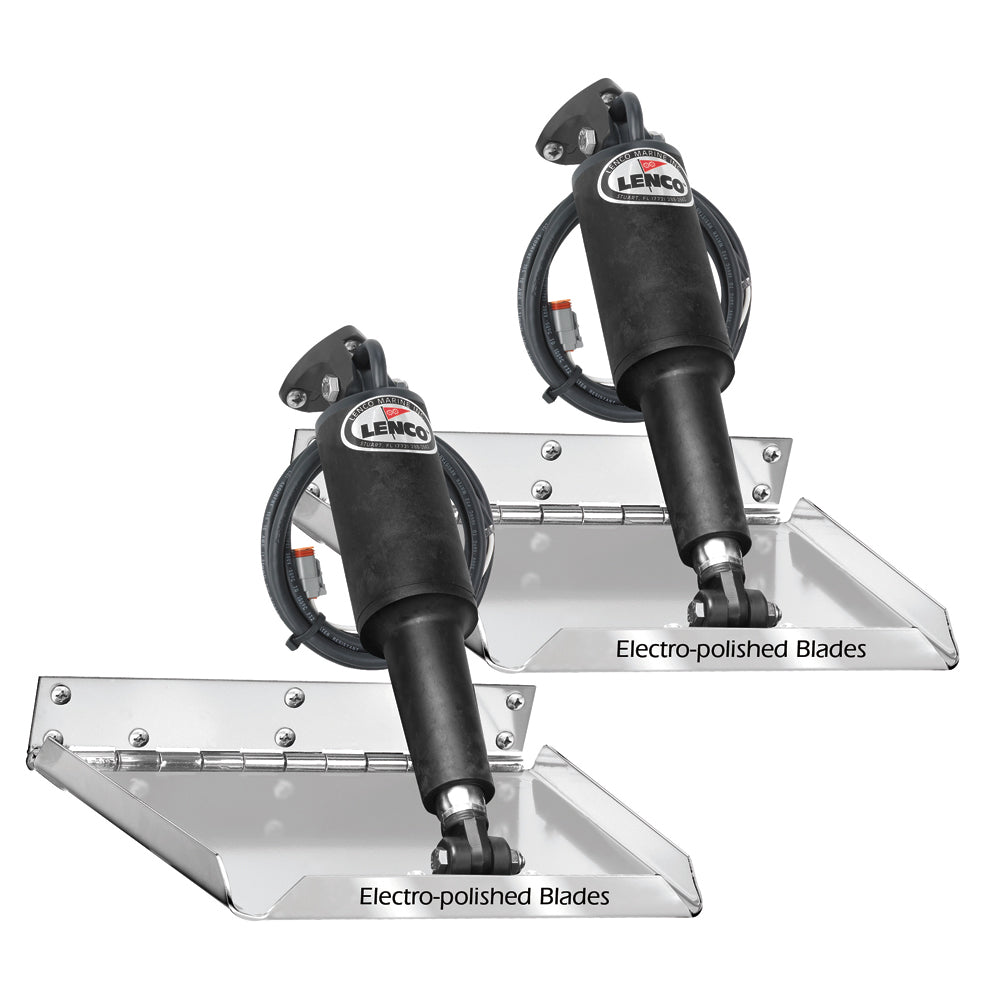

Lenco Marine 18" x 14" Standard Performance Trim Tab Kit with Electro-Polished Stainless Steel Blades and 12V Electric Actuators

18" x 14" Standard Performance Trim Tab Kit w/o Switch Kit- 12V

Upgraded electro-polished trim blades with stouter 1/4" diameter hinge pin make these Performance Trim Tab Kits a cut above the base level Lenco Standard Mount Kits. Equipped with the same fast response electric actuators for precise control. Fully submersible with all Plug Play Deutsch connections. Blades are Electro-Polished 12 gauge - 304 SS with 1" turned up edges (the 16" x 12" and the 18" x 14" have an 85 degree inside taper) and 1/4" diameter hinge pin. Kit includes Standard Actuators with 5/16" SS bolts. The actuators mount at the trailing edge of the blades

Kit Contents:

• 2 each of 12-gauge stainless steel Electro-Polished trim tab blades
• 2 each of #15054-001 actuators with 6' lead and Deutsch plugs
• 2 each of #30133-103 20' actuator extension wiring harnesses
• 2 each of #15085-001 (#116) upper mounting bracket with gland seal
• 2 each of #50014-001 (#119) lower mounting bracket
• 1 each of the Lenco owners / installation manual
• All necessary stainless steel mounting hardware

Specifications:

• Suggested Boat Length: 22' to 40'
• Length of Tab: 18"
• Width of Tab: 14"
• Minimum Transom Height: 11"
• Blades: 12 Gauge Stainless Steel
• Finish: Electro-Polished
• Switch Kit: Sold Separately
• Class: Fuel Efficient
• Compliance: CE Certified
• Compatibility: Any Boat
• Actuators: 12-volt

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Lenco Marine 18" x 14" Standard Performance Trim Tab Kit offers enhanced control and durability for boats ranging from 22 to 40 feet. Featuring upgraded electro-polished 12-gauge stainless steel blades with 1-inch turned-up edges, this kit ensures a corrosion-resistant surface combined with a sleek, professional finish. The sturdy 1/4-inch diameter hinge pin and fast-response electric actuators provide precise and reliable trim adjustments, essential for optimal boat performance and fuel efficiency. Fully submersible and equipped with Plug & Play Deutsch connections, this kit simplifies installation and maintenance while ensuring long-lasting operation. The included components, such as upper and lower mounting brackets, actuator extension wiring, and stainless steel hardware, facilitate a straightforward setup process. Designed for versatility, these trim tabs are compatible with any boat type, making them an excellent upgrade for improving handling, stability, and fuel economy. Please note that the switch kit is sold separately. This product is CE certified and complies with safety standards, ensuring quality and reliability for marine applications.

Features:

• Electro-polished 12-gauge stainless steel blades with 1-inch turned-up edges for durability and corrosion resistance

• Fast response 12V electric actuators for precise trim control

• Fully submersible design with Plug & Play Deutsch connections for easy installation

• Includes all mounting hardware, extension wiring, and brackets for a complete setup

• Suitable for boats from 22 to 40 feet, with a recommended transom height of at least 11 inches
