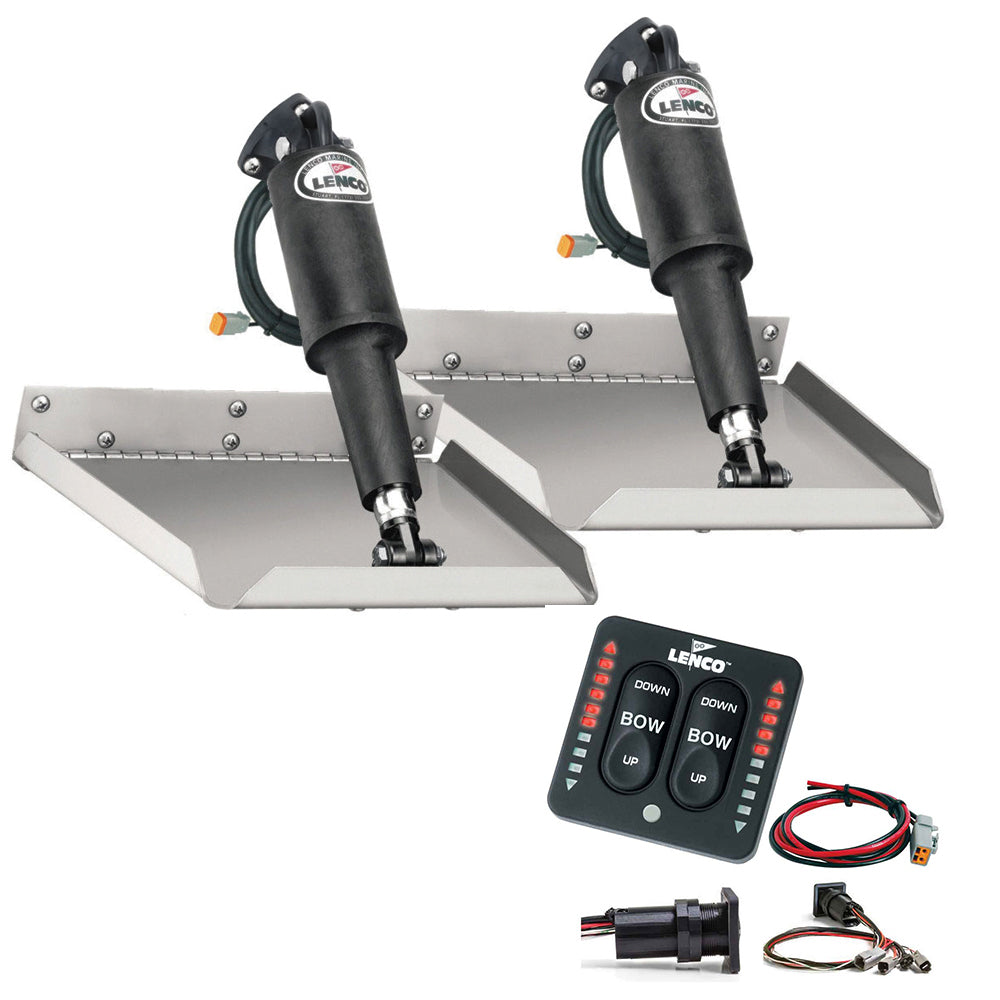

Lenco Marine 9 x 9 Edgemount Trim Tab Kit with LED Indicator Switch - 12V

Edge Mount

Mounts the actuator at the trailing edge of the plane, requiring 4 less transom height than standard mount

Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious.

• Instant response electric actuators for precise control

• Everything is fully submersible, maintenance-free and sealed for life

• Self-locking ballscrew will not drift, even while backing down

• 12-gauge laser cut stainless steel trim tab planes

• High-impact corrosion-proof mounts look great through years of abuse

• Clean, time and space-saving installation

• Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case

• 316 super buff stainless steel rams

Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab Systems
Features:

• Self-contained, sealed keypad

• Self-contained, sealed control box module

• Fade/smudge-proof, laser engraved graphics

• Plug & play switch wiring harness connector

• Includes 36" power pigtail for control box

• 2" hole cut-out size, overall size 2.75" x 2.75"

• Built-in retract feature returns tabs to a fully retracted position when power is removed

• 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times

• Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight

• 12 & 24-volt compatibility

• Includes Self-Check Feature

Each Kit Includes:

Tactile LED Indicator Switch Kit

2 Actuators with 6' lead & Deutsch Plugs

2 20' Actuator Extension Wiring Harness

2 12 gauge Stainless steel trim tab planes

2 Upper Mounting Bracket with Gland Seal

2 Lower Mounting Bracket

All stainless steel mounting hardware

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Enhance your boat’s performance with the Lenco Marine TT9X9EI Edgemount Trim Tab Kit, designed for precise control and reliability. Featuring an innovative edge mount installation, this kit mounts the actuator at the trailing edge of your boat, requiring four fewer transom height units than standard mounts, which simplifies installation and saves space. Built for durability, the trim tabs are constructed with 12-gauge laser-cut stainless steel planes and high-impact corrosion-proof mounts that withstand years of harsh marine environments.
These electric actuators deliver instant response and are fully sealed, maintenance-free, and oil-free, making them environmentally friendly and user-friendly. The self-locking ballscrew ensures the trim tabs won't drift even when backing down, providing consistent performance. The actuators’ high-impact, ultraviolet-resistant nylon cases and 316 super buff stainless steel rams further enhance durability and longevity.
The control system features a sealed keypad with an LED indicator switch, offering fade and smudge-proof laser-engraved graphics for easy visibility. The integrated photo eye auto-adjusts LED brightness for optimal viewing in direct sunlight. The control box is compact, sealed, and includes a 36-inch power pigtail, with compatibility for 12 and 24 volts, ensuring versatile installation options. The built-in retract feature automatically returns the trim tabs to a fully retracted position when power is removed, adding convenience and safety. Each kit includes two actuators with 6-foot leads and Deutsch plugs, stainless steel trim tab planes, mounting brackets, hardware, and wiring harnesses for a comprehensive installation.
Designed to improve ride quality, reduce spray, and increase speed and safety, the Lenco TT9X9EI trim tab kit is suitable for a wide range of vessels from small skiffs to large yachts. Its sleek design, high performance, and ease of use make it an essential upgrade for boat enthusiasts seeking enhanced control and reliability on the water.

Features:

• Edge mount installation reduces transom height requirements

• Instant response electric actuators for precise control

• Fully sealed, maintenance-free, and oil-free design

• Self-locking ballscrew prevents drift during backing down

• High-impact corrosion-proof stainless steel mounts and trim planes

• UV-resistant nylon actuator cases for durability

• Includes tactile LED indicator switch with built-in retract feature

• Auto-adjusting LED display for optimal visibility in sunlight

• Compatible with 12 and 24-volt electrical systems

• Complete kit includes actuators, wiring harnesses, mounting hardware, and control switch
