Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious.
- Instant response electric actuators for precise control
- Everything is fully submersible, maintenance-free and sealed for life
- Self-locking ballscrew will not drift, even while backing down
- 12-gauge laser cut stainless steel trim tab planes
- High-impact corrosion-proof mounts look great through years of abuse
- Clean, time and space-saving installation
- Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case
- 316 super buff stainless steel rams
Standard Solid State Tactile Switch Kits with Retractor Feature
#15069-001 (124SSR)For 12-volt single actuator systems. Control box is waterproof, self-contained, sealed, solid state, Deutsch connected for easy Plug & Play installation, and features built-in retractor. Kit includes 36" power pigtail and nylon nuts for mounting keypad. Colorful display box.
Features
- Built-In Retractor Feature
- Solid State Electronics
- Plug & Play
- Low Profile Design
- Self-Contained, sealed keypad & solid state control box with waterproof connectors
- Simple, Quick Installation
- Includes 36" power pigtail for control box
- 2" hole cut-out size, overall size 2.75" x 2.75'
Each kit contains:
- Standard Tactile Switch Kit
- 2 12-volt Actuators with 6-foot leads and Deutsch connectors
- 2 20' actuator extension harnesseswith Deutsch connectors
- 2 Stainless steel trim tab blades
- 2 upper mounting bracket with gland seal
- 2 lower mounting bracket
- All Necessary stainless steel Mounting hardware
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

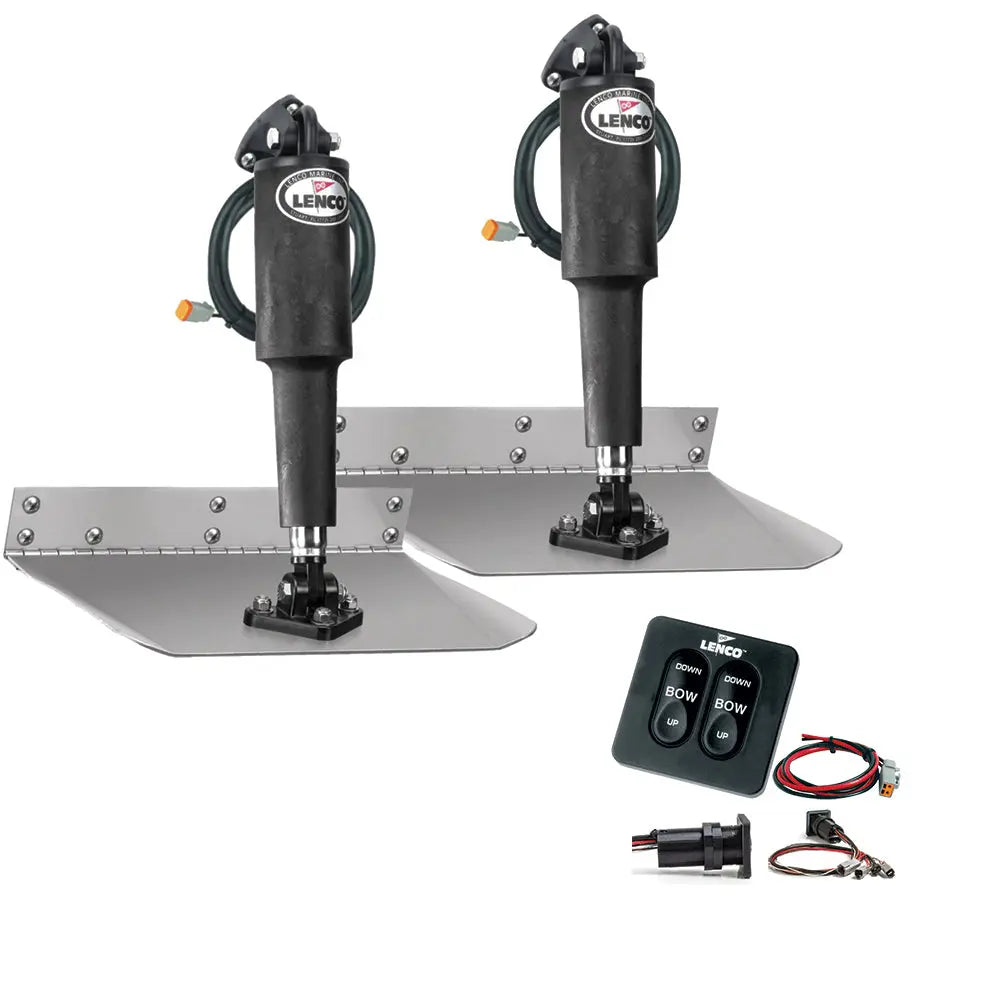

Enhance your boat’s performance and ride quality with the Lenco Marine 9 x 9 inch Standard Trim Tab Kit. Designed for reliable, precise control, this kit features electric actuators with instant response, allowing for smooth and safe operation whether you're navigating choppy waters or cruising at high speeds. Constructed with high-impact, corrosion-proof stainless steel mounts and a durable, UV-resistant nylon case, these trim tabs are built to withstand years of use in harsh marine environments. Their fully sealed, maintenance-free design ensures long-lasting performance without the need for oil or complex hydraulic systems, making installation straightforward and space-efficient.
Each actuator is equipped with a self-locking ballscrew that prevents drift even when backing down, providing consistent and accurate trim adjustments. The laser-cut stainless steel trim tab planes deliver a sleek appearance while ensuring optimal hydrodynamics, contributing to a drier, faster, and more stable ride. The kit includes all necessary mounting hardware, stainless steel blades, and mounting brackets for a complete, hassle-free setup. The control system features a waterproof, sealed, plug-and-play control box with built-in retractor and a 36-inch power pigtail, making installation quick and secure. With a compact 2.75-inch by 2.75-inch profile, this control box fits easily into tight spaces, while the tactile switch provides intuitive operation.
Ideal for small skiffs and larger yachts alike, this trim tab kit offers improved safety, responsiveness, and hydrodynamic performance. Its environmentally conscious oil-free design reduces maintenance needs and minimizes ecological impact, making it a reliable choice for discerning boat owners. Whether upgrading existing trim tabs or installing on a new vessel, the Lenco Marine 9 x 9 inch kit ensures a smoother, safer, and more efficient boating experience.
Features:
- Instant response electric actuators for precise control
- Fully sealed, maintenance-free design with waterproof, plug-and-play control box
- Self-locking ballscrew prevents drift during operation
- Laser-cut stainless steel trim tab planes for durability and hydrodynamics
- Corrosion-proof, high-impact mounts for long-term reliability
- Compact, low-profile control system with built-in retractor and easy installation
- Includes all mounting hardware, stainless steel blades, and extension harnesses
- Environmentally conscious oil-free design minimizes ecological impact
