Lenco Marine Heavy Duty Performance Trim Tab Kit with LED Indicator Switch - 18 x 14 Inches, 12V

Heavy Duty Performance Trim Tabs


Fast response electric actuators for precise control. Fully submersible. All Plug

Running wide open in rough seas isn't for the faint of heart. Aggressive boating requires durable boat accessories. Lenco's HD series of trim tabs are built to handle whatever you or Mother Nature might throw at them. Everything about your boat is designed to go hard and fast. Why should your trim tab system be any different

• All stainless steel construction (no dissimilar metals), Electro-Polished Blades for long lasting good looks

• Actuator speed is precise and controllable so there are no surprises at top speeds

• Models have massive backplates and adjustable mounting channels with thru-bolted actuators for the ultimate in strength and reliability

• Models use solid stainless steel billet rams that are chemically polished for unsurpassed durability

Actuators

• Instant response

• Fully submersible, maintenance-free and sealed for life

• High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case

• 5/16 stainless steel bolts

Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab Systems
Features:

• Self-contained, sealed keypad

• Self-contained, sealed control box module

• Fade/smudge-proof, laser engraved graphics

• Plug & play switch wiring harness connector

• Includes 36" power pigtail for control box

• 2" hole cut-out size, overall size 2.75" x 2.75"

• Built-in retract feature returns tabs to a fully retracted position when power is removed

• 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times

• Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight

• 12 & 24-volt compatibility

• Includes Self-Check Feature

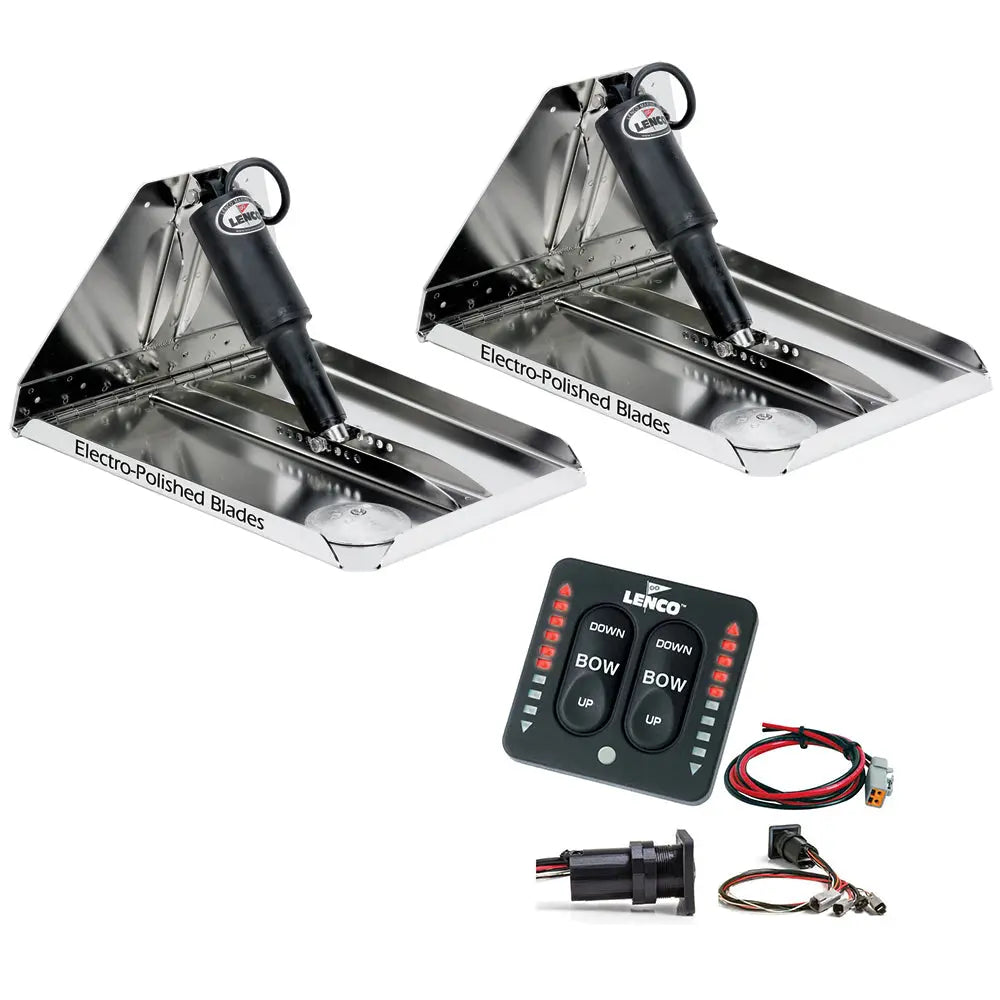

Each kit contains:

• Tactile LED Indicator Switch Kit

• 2 actuators wth 6' Lead and Deutsch Plugs

• 2 12 Gauge SS Electro-Polished trim tab planes

• 2 20' Actuator Extension Wiring Harnesses

• Boat-Mounting Hardware supplied by customer

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Designed for demanding marine environments, the Lenco Marine RT18X14HDI Heavy Duty Performance Trim Tab Kit offers precise control and durability for high-speed boating in rough seas. Featuring fast-response electric actuators, this system is fully submersible and maintenance-free, ensuring reliable operation under the toughest conditions. The all-stainless steel construction, including electro-polished blades and solid billet stainless steel rams, provides long-lasting aesthetics and strength. The large backplates and adjustable mounting channels with thru-bolted actuators deliver maximum stability and robustness for aggressive boating activities. The actuators' high-impact, ultraviolet-resistant nylon cases and 5/16 stainless steel bolts further enhance durability, making this trim tab system ideal for high-performance vessels.

Control is simplified with a sealed tactile switch that includes high-intensity LED indicators, which display the exact position of the trim tabs at all times. This self-contained, sealed keypad and control box module feature fade and smudge-proof laser-engraved graphics, ensuring clear visibility in direct sunlight. The switch wiring harness is plug-and-play, with a 36-inch power pigtail included for easy installation. The built-in retract feature automatically returns the trim tabs to a fully retracted position when power is removed, preventing accidental damage. Compatibility with both 12 and 24 volts makes this system suitable for a wide range of marine vessels.

Each kit includes two electro-polished 12-gauge stainless steel trim tab planes, two actuators with 6-foot leads and Deutsch plugs, two 20-foot actuator extension wiring harnesses, and a tactile LED indicator switch kit. Please note that boat-mounting hardware must be supplied by the customer. This system is engineered for aggressive boat handling, providing quick response, reliability, and long-term performance in challenging marine conditions. Whether navigating rough seas or executing high-speed maneuvers, the Lenco Heavy Duty Performance Trim Tab Kit ensures optimal boat control and stability for serious boaters.

Features:

• Heavy-duty electric actuators for fast and precise response

• All stainless steel construction with electro-polished blades for corrosion resistance and aesthetic appeal

• Fully submersible, maintenance-free, sealed for life design

• High-impact, ultraviolet-resistant nylon case with stainless steel bolts for durability

• Adjustable mounting channels and massive backplates for maximum strength

• Sealed tactile switch with LED indicators for clear position monitoring

• Self-contained, fade and smudge-proof laser-engraved graphics

• Plug-and-play wiring harness with 36-inch power pigtail for easy installation

• Built-in retract feature for safety and protection

• Compatibility with 12V and 24V electrical systems
