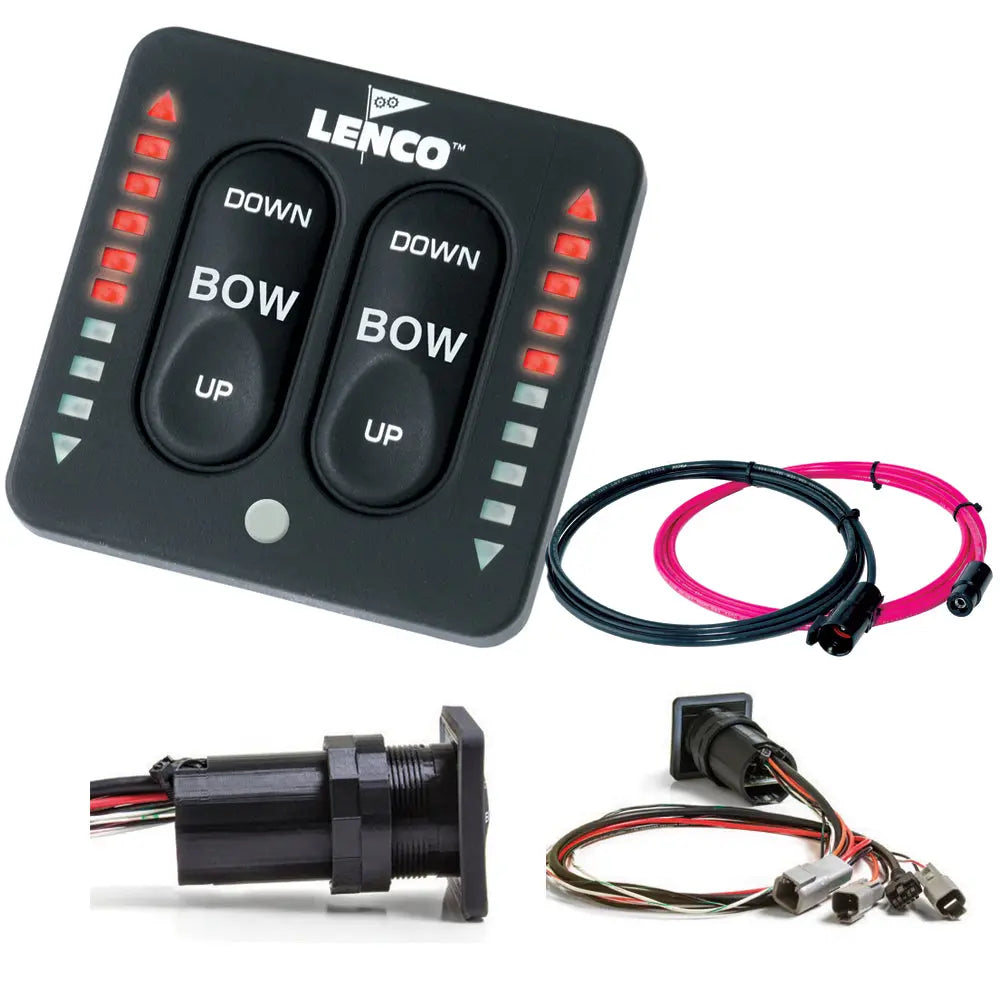

Lenco Marine LED Indicator Integrated Tactile Switch Kit with Pigtail for Dual Actuator Systems

LED Indicator Integrated Tactile Switch Kit with Pigtail for Dual Actuator Systems

Complete your Lenco trim tab system with the latest, maintenance-free (ALL-IN-ONE) integrated tactile switch kit design. This NEW switch technology improves accuracy and integrates the control box functionality into the key pad bezel.

LED indicator lights let you know exactly where your trim tabs are at all times. A backlit keypad automatically illuminates graphics for night viewing. A photo eye reads ambient light and adjusts the indicator intensity for optimum viewing in all lighting conditions.

Features Include

• Simple, quick, Plug Play installation
• Instant response
• Built-in retractor
• Low profile design
• Self-contained key pad with waterproof Plug Play Deutsch connectors
• Wiring harness length 30" (76.2 cm) from the back of the switch bezel
• 36" power pigtail
• 2 1/16" hole cut-out size, overall key pad size of 2.75" x 2.75"
• 4.08" clearance required from the back of the key pad's mounting location
• 2 high-intensity LED Indicator displays show the exact position of your trim tabs at all times
• Photo Eye for optimum viewing in all light conditions
• Backlit key pad for optimum viewing at night

Replacement parts are available and are sold separately.

Specifications

• 3 Year Warranty
• System Type:Dual Actuator
• Compliance:CE Certified

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Enhance your Lenco trim tab system with the Lenco Marine Part Number 15171-001 LED Indicator Integrated Tactile Switch Kit. This all-in-one, maintenance-free switch kit features a sleek, low-profile design that seamlessly integrates control box functionality into the keypad bezel, providing a clean and efficient installation. The kit includes a self-contained, waterproof keypad with Deutsch connectors and a wiring harness measuring approximately 30 inches, along with a 36-inch power pigtail for flexible setup. The compact keypad, measuring just over 2.75 inches square, requires a 2 1/16-inch hole for mounting and offers a 4.08-inch clearance from the back, making it suitable for tight spaces. The integrated LED indicator lights deliver real-time status updates on your trim tabs, ensuring precise control at all times. A photo eye automatically adjusts the backlit keypad's illumination based on ambient light conditions, optimizing visibility during day or night use. Responding instantly to user input, the tactile switches provide reliable operation, while the built-in retractor adds to the device’s durability. Designed for dual actuator systems, this kit is CE certified and backed by a three-year warranty. Please note, replacement parts are available separately. This product exposes users to chemicals such as di(2-ethylhexyl)phthalate (dehp), which have been linked to health risks, and users are advised to review safety information at P65Warnings.gov. Suitable for boaters seeking a dependable, easy-to-install solution for trim tab control, the Lenco Marine LED Indicator Tactile Switch Kit enhances both functionality and safety, ensuring your marine control system remains accurate and accessible in all conditions.

Features:

• Simple, quick, Plug & Play installation

• Instant response for precise control

• Built-in retractor for durability

• Low profile design for space efficiency

• Self-contained waterproof keypad with Deutsch connectors

• Wiring harness length approximately 30 inches

• 36-inch power pigtail included

• Compact 2.75-inch square keypad with 2 1/16-inch hole cut-out

• Requires 4.08 inches of clearance from mounting surface

• High-intensity LED indicators for real-time trim tab position

• Photo eye for ambient light adjustment

• Backlit keypad for night visibility

• Designed for dual actuator systems

• CE Certified for compliance

• Covered by a 3-year warranty
