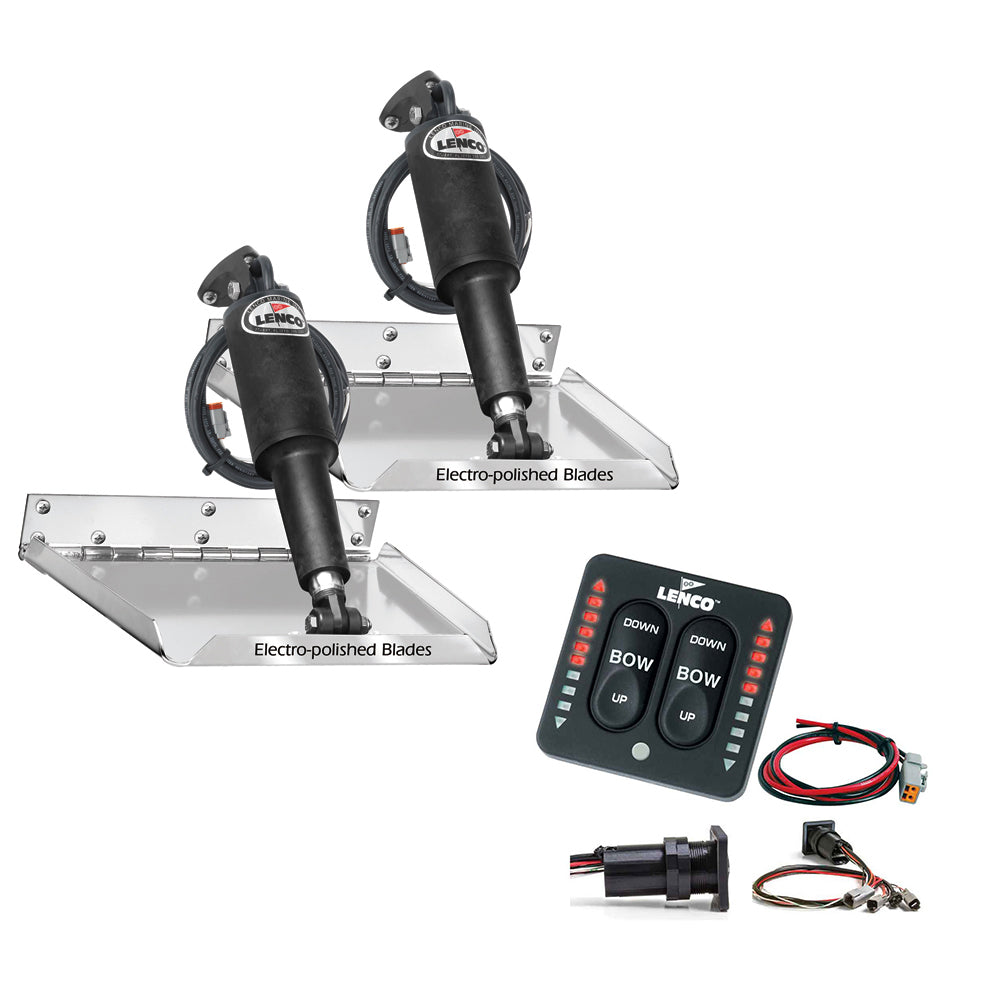

Lenco Marine RT12X12I 12-Inch x 12-Inch Standard Performance Trim Tab Kit with LED Indicator Switch - 12V

Standard Performance Series Tabs


Standard actuator with 5/16 stainless steel through bolts. 1 turned up edges with 2 taper on the inside. All 12-gauge 304 stainless steel construction with Electro-Polished Blades

We make the best boats better!

Running wide open in rough seas isn't for the faint of heart. Aggressive boating requires durable boat accessories. Lenco's Standard Performance series of trim tabs are built to handle whatever you or Mother Nature might throw at them. Everything about your boat is designed to go hard and fast. Why should your trim tab system be any different

• All stainless steel construction (no dissimilar metals), Electro Polished Blades for long lasting good looks

• Actuator speed is precise and controllable so there are no surprises at top speeds

Actuators

• Instant response

• Fully submersible, maintenance-free and sealed for life

• High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case

Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab Systems
Features:

• Self-contained, sealed keypad

• Self-contained, sealed control box module

• Fade/smudge-proof, laser engraved graphics

• Plug & play switch wiring harness connector

• Includes 36" power pigtail for control box

• 2" hole cut-out size, overall size 2.75" x 2.75"

• Built-in retract feature returns tabs to a fully retracted position when power is removed

• 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times

• Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight

• 12 & 24-volt compatibility

• Includes Self-Check Feature

Each kit contains:

• Tactile LED Indicator Switch

• 2 actuators with 6' Lead & Deutsch Plugs

• 2 12 Gauge SS Electro Polished trim tab planes

• 2 20' Actuator Extension Wiring Harness

• 2 Upper Mounting Bracket with Gland Seal

• 2 Lower Mounting Bracket

• All Necessary stainless steel mounting Hardware

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Upgrade your boat's performance with the Lenco Marine RT12X12I Standard Performance Trim Tab Kit, designed for optimal control and durability. Crafted from all 12-gauge 304 stainless steel, these trim tabs feature electro-polished blades that resist corrosion and maintain a sleek appearance even after prolonged use. The actuator system includes 5/16-inch stainless steel through bolts, providing a robust connection capable of withstanding aggressive boating conditions. With precision-controlled speed, the actuators respond instantly to commands, ensuring smooth and predictable adjustments in rough seas. The high-impact, ultraviolet-resistant nylon case housing the actuators guarantees maintenance-free operation and long-lasting performance, making them suitable for demanding marine environments.

Features:

• All stainless steel construction with electro-polished blades for corrosion resistance and aesthetic appeal

• Actuator speed is precise and controllable for reliable performance at high speeds

• Instant response with fully sealed, maintenance-free, and submersible design

• High-impact, UV-resistant nylon case to withstand harsh marine conditions

• Tactile switch with LED indicator provides clear position feedback and easy control

• Self-contained, sealed keypad and control box module with fade/smudge-proof laser-engraved graphics

• Plug & play wiring harness connector and 36-inch power pigtail for straightforward installation

• Built-in retract feature returns tabs to a fully retracted position when power is off

• Ambient light sensor adjusts LED brightness for optimal visibility in direct sunlight

• Compatible with 12 and 24-volt systems for versatile application

• Kit includes two actuators with 6-foot leads, electro-polished trim tab planes, mounting hardware, and wiring harnesses
