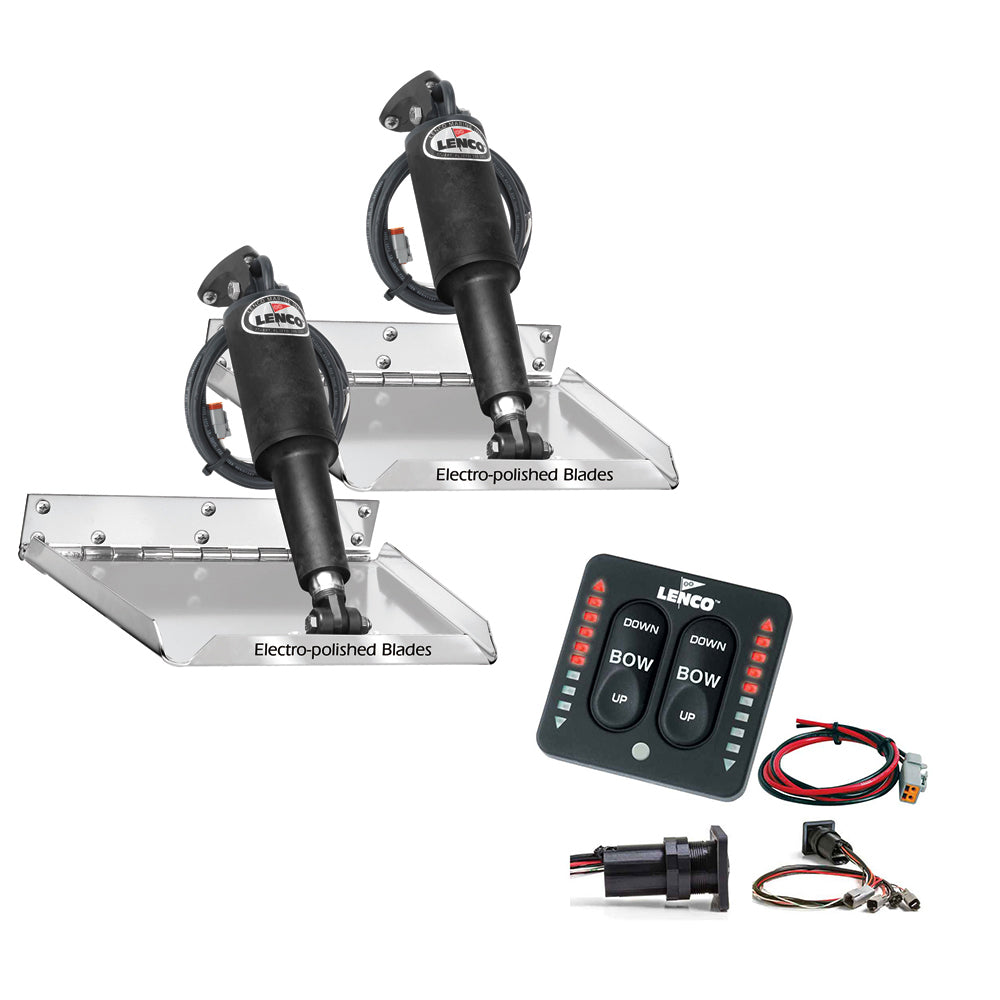

Lenco Marine RT12X9I Standard Performance 12-Inch x 9-Inch Trim Tab Kit with LED Indicator Switch and Actuators

Standard Performance Series Tabs

Standard actuator with 5/16 stainless steel through bolts. 1 turned up edges with 2 taper on the inside. All 12-gauge 304 stainless steel construction with Electro-Polished Blades

We make the best boats better!

Running wide open in rough seas isn't for the faint of heart. Aggressive boating requires durable boat accessories. Lenco's Standard Performance series of trim tabs are built to handle whatever you or Mother Nature might throw at them. Everything about your boat is designed to go hard and fast. Why should your trim tab system be any different

• All stainless steel construction (no dissimilar metals), Electro Polished Blades for long lasting good looks

• Actuator speed is precise and controllable so there are no surprises at top speeds

Actuators

• Instant response

• Fully submersible, maintenance-free and sealed for life

• High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case

Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab Systems
Features:

• Self-contained, sealed keypad

• Self-contained, sealed control box module

• Fade/smudge-proof, laser engraved graphics

• Plug & play switch wiring harness connector

• Includes 36" power pigtail for control box

• 2" hole cut-out size, overall size 2.75" x 2.75"

• Built-in retract feature returns tabs to a fully retracted position when power is removed

• 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times

• Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight

• 12 & 24-volt compatibility

• Includes Self-Check Feature

Each kit contains:

• Tactile LED Indicator Switch Kit

• 2 actuators with 6' Lead & Deutsch Plugs

• 2 12 Gauge SS Electro Polished trim tab planes

• 2 20' Actuator Extension Wiring Harness

• 2 Upper Mounting Bracket with Gland Seal

• 2 Lower Mounting Bracket

• All Necessary stainless steel mounting Hardware

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Enhance your boat's performance with the Lenco Marine RT12X9I Standard Performance trim tab kit, designed for durability and precise control in demanding conditions. Crafted from all 12-gauge 304 stainless steel with electro-polished blades, this kit offers long-lasting corrosion resistance and a sleek appearance. The actuator features a 5/16-inch stainless steel through bolt, with turned-up edges and tapering on the inside, ensuring reliable operation even in rough seas. Its instant response and sealed, maintenance-free design make it ideal for aggressive boating environments, providing the durability needed to handle high speeds and challenging water conditions.

The kit includes two high-impact, ultraviolet-resistant nylon actuators with 6-foot leads and Deutsch plugs, along with stainless steel mounting hardware and all necessary brackets. The actuators are fully submersible, ensuring seamless operation underwater, and feature a high-impact case filled with 50% glass fiber for added strength. The electro-polished trim planes measure approximately 12 inches by 9 inches, optimized for performance and ease of installation.

Control is simplified with the tactile LED indicator switch kit, which is sealed and features laser-engraved, fade-proof graphics. The control box is self-contained, with plug-and-play wiring for ease of setup, and includes a 36-inch power pigtail. The switch offers built-in retract functionality, automatically returning the trim tabs to the fully retracted position when power is cut. The high-intensity LED indicators display the trim tab position at all times, with ambient light sensors adjusting brightness for clear viewing in direct sunlight. Compatible with 12 and 24-volt systems, the control switch also features a self-check function for reliable operation.

This comprehensive kit provides everything needed for a robust and responsive trim tab system, including the switch, actuators, trim planes, wiring harnesses, brackets, and hardware. Designed for serious boaters, the Lenco Marine RT12X9I trim tab kit ensures optimal boat handling, stability, and speed, making it an excellent upgrade for demanding marine applications.

Features:

• All stainless steel construction with electro-polished blades for corrosion resistance and durability

• Instant response actuators with sealed, maintenance-free design and high-impact nylon cases

• Includes two 12-inch by 9-inch electro-polished trim planes

• Control switch with sealed, self-contained keypad and indicator LED display

• Plug-and-play wiring harness with 36-inch power pigtail for quick installation

• Built-in retract feature returns tabs to fully retracted position when power is off

• High-intensity LED indicators with ambient light sensor for optimal visibility

• Compatible with 12 and 24-volt electrical systems

• Complete kit includes actuators, switch, wiring harnesses, brackets, and hardware
