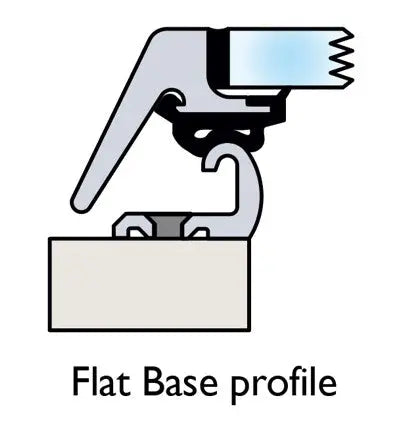

Lewmar Size 60 Ocean Series Hatch Flat Base

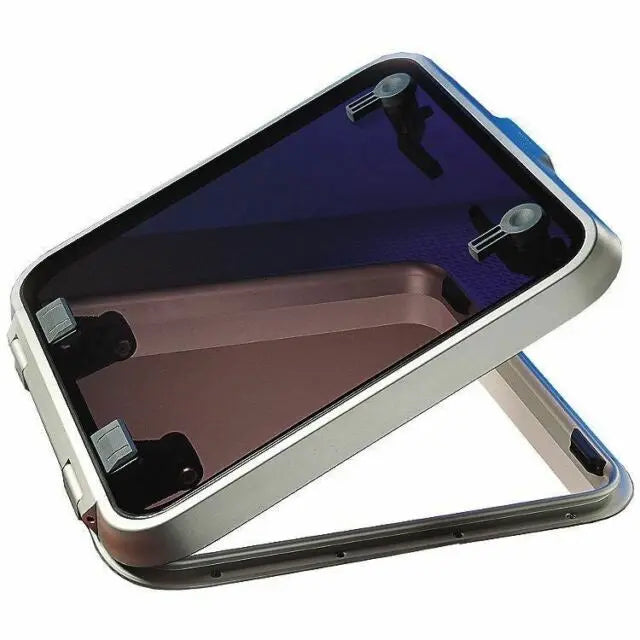

Lewmar Size 60 Ocean Series Hatch Flat Base

• Fit to a flat surface with a maximum tolerance of +/- 1mm.
• Fastening size at hinge section use (M6 / 1/4").
• Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
• Flat base hatches cannot be used with Trim kits or Roller shades

Lower Frame (in) Acrylic Colour Hatch Weight (lb)
Acrylic Window Thickness (in) Flat Base Smoke Grey 17.6 1/2

Dimensions

Length X (in) Width Y (in) Height Z (in) Radii R (in) Hinge Length HX (in) Hinge Width HY (in) Cut-Out Length Flat X1 (in) Cut-Out Width Flat Y1 (in) Cut-Out Radii Flat R1 (in) 22 5/8 22 5/8 1 11/16 3 3/16 14 7/16 19 3/4 19 3/4 1 9/16
