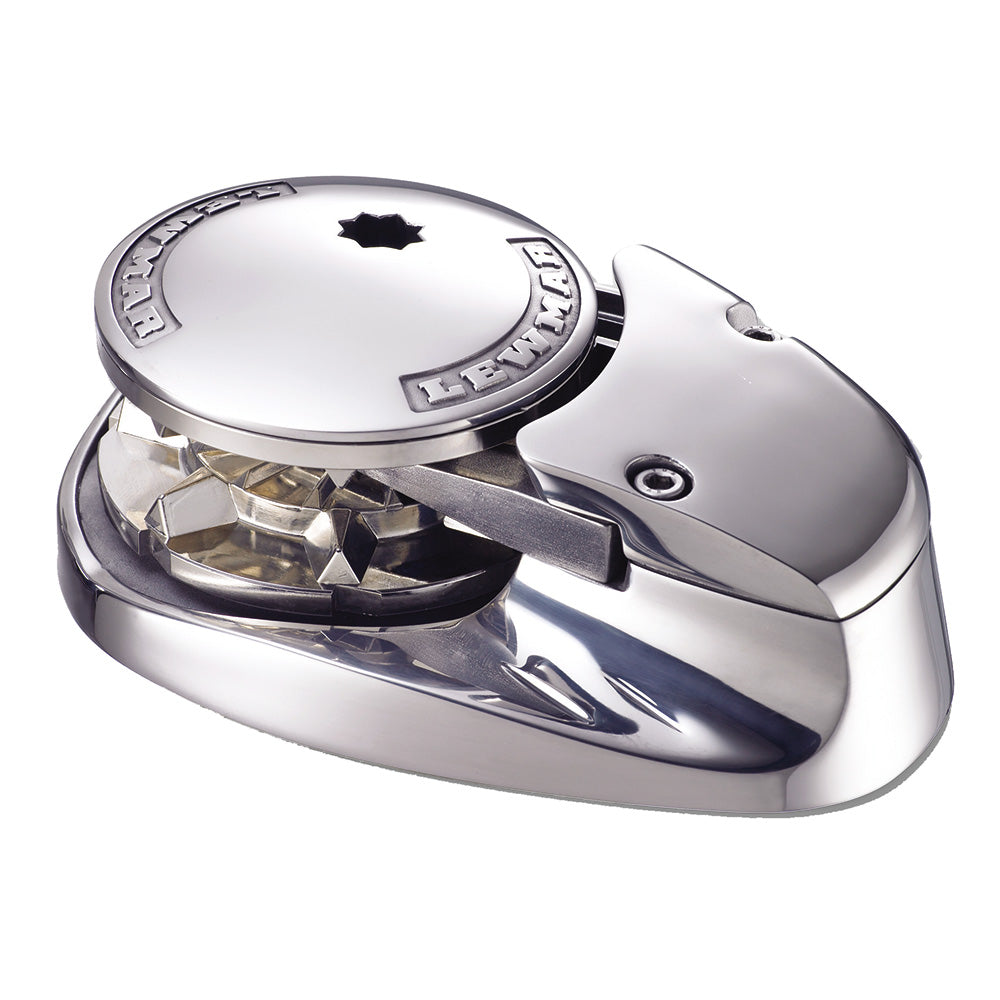

Lewmar V700 Vertical Windlass Kit - 12V for Boats up to 35 Feet

V700 Vertical Windlass Kit - 12V

With 100% 316 stainless steel housing and a sleek flush-mount design that hides the motor down below, the V700 is one of the most attractive and durable windlasses on the market. It works at the push of a button and has two built-in features that make it unique - motor protection and anchor lock.

The V700 comes with a gypsy able to accept 1/4 inch chains.

Features:

• For rope, chain, or combination rodes
• Built-in motor protection and fail-safe anchor lock
• Easy installation
• Fast line speed
• Manual recovery option
• Impact-resistant cover

Technical Specifications:

• Material - Stainless Steel
• Maximum Pull - 700lbs
• Maximum Line Speed - 82'/min
• Maximum Chain Size - 1/4"
• Maximum Rope Size - 1/2"
• Power - 12 V
• Maximum Boat Length - 35'
• Mounting Position - Vertical
• Weight - 14lbs

In the Box:

• Windlass
• Switch
• Dual direction contactor/solenoid
• Circuit breaker
• Instruction manual

*Sold as an Individual

The Lewmar V700 Vertical Windlass Kit is a high-performance marine anchor system designed for vessels up to 35 feet in length. Crafted with a durable 316 stainless steel housing, this windlass offers exceptional corrosion resistance and a sleek flush-mount design that conceals the motor below deck. Its vertical mounting position allows for efficient use of space while providing reliable anchor handling capabilities. The V700 operates smoothly at the push of a button, featuring built-in motor protection and an anchor lock safety feature to prevent accidental release or damage during operation. It includes a gypsy capable of accommodating 1/4 inch chain, making it suitable for rope, chain, or combination rodes, which enhances versatility for various anchoring setups. The windlass is equipped with a high line speed of up to 82 feet per minute and a maximum pulling force of 700 pounds, ensuring quick and secure anchoring in different conditions. Its impact-resistant cover adds durability, while the manual recovery option provides backup in case of power failure. Designed for easy installation, the V700 kit includes a switch, dual-direction contactor/solenoid, circuit breaker, and comprehensive instructions, making setup straightforward for marine professionals or experienced boat owners. This windlass combines strength, reliability, and user-friendly features to support safe and efficient anchoring for small to medium-sized boats. The compact design and lightweight construction, weighing approximately 32 pounds, make it an excellent choice for enhancing your vessel’s anchoring system without adding significant weight or complexity.

Features:

• Suitable for rope, chain, or combination rodes

• Built-in motor protection and fail-safe anchor lock

• Easy installation with included hardware

• Fast line speed of up to 82 feet per minute

• Manual recovery option for backup operation

• Impact-resistant cover for added durability
