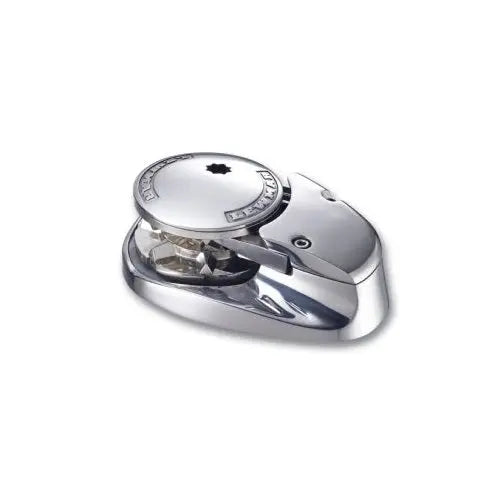

Lewmar V700G Vertical Windlass With Rocker Switch And Control 12v

Lewmar V700G Vertical Windlass With Rocker Switch And Control 12v

Lewmar V700 Verticle Anchor Windlass

12v, 6/7mm gypsy

Model: 6670011108-312
UPC: 743683302930

• The V700 now comes with a gypsy able to accept both 6mm and 7mm (1/4) inch chains.


• Fits calibrated chains: 6mm DIN766, 1/4" G4 or BBB, 7mm DIN766


• 100% 316 stainless steel deck unit


• IP Rated Housing


• Fall Safe anchor lock


• Fast line speed


• Manual recovery option


• Impact-resistant motor cover


• For boats up to 10.5m (35 ft)

With 100% 316 stainless steel housing and a sleek flush-mount design that hides the motor down below, the V700 is one of the most attractive and durable windlasses on the market. It works at the push of a button and has two built-in features that make it unique motor protection and anchor lock. Plus its affordable.

Specifications

Motor Power draw
320 watts

Max pull
700lbs

Workign Load limit
175lb

Max line speed
82 ft/min

Typical line speed
50 ft/min

Input Voltage
12v

Dimensions
7.34" L x 5" W x 11 1/16" H

What's in the Box:

• V700 Windlass


• Breaker/Isolator


• Control Switch


• Intelligent Mounting Studs, Washers and Nuts


• All-in-one Installation Wrench & Clutch Lever


• Base Gasket Seal


• Safety Instructions


• Mounting Template


• Instruction Booklet


• Warranty Registration Card
