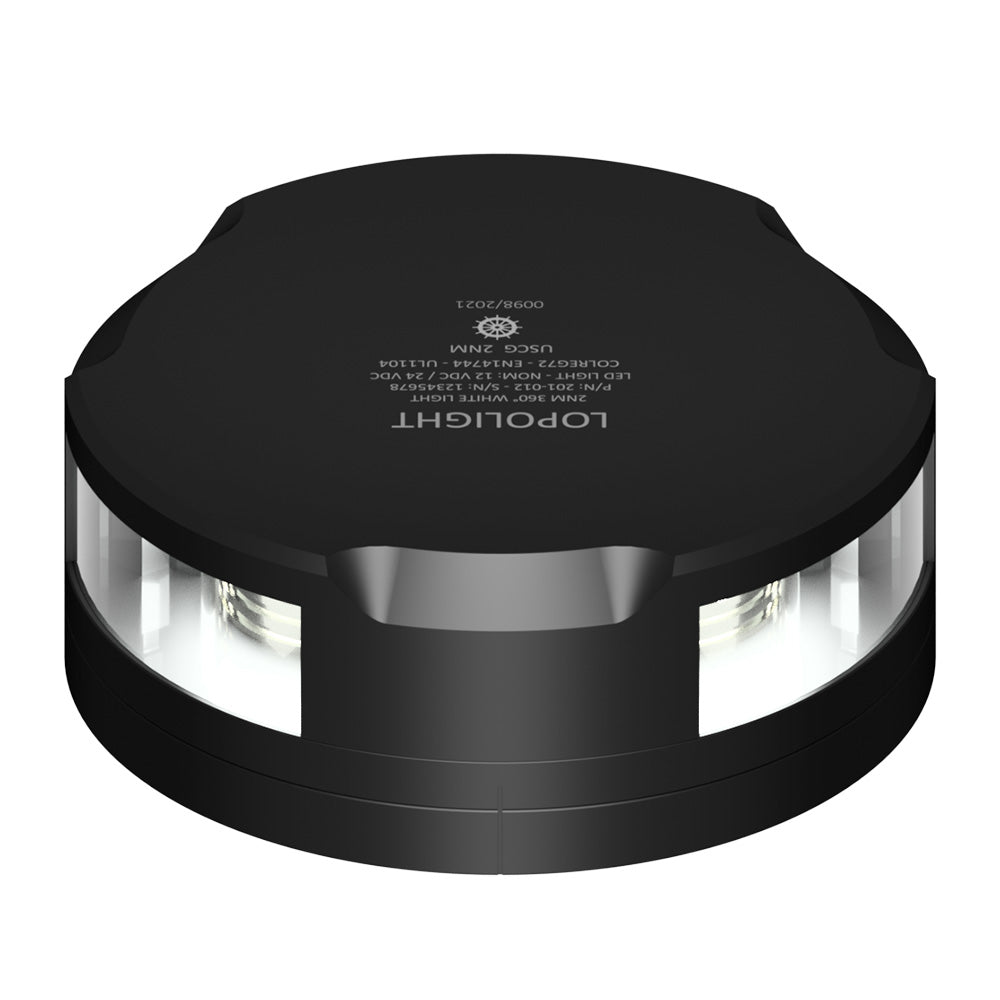

Lopolight 360-Degree Anchor Light with FB Base - 2NM Range, Black Housing

360-Degree Anchor Light - 2NM - Black Housing with FB Base

This black 360-degree anchor light is horizontally mounted and has a two-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Black anodized aluminum housing
• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438042797
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: White
• Visibility: 2NM
• Included In the Package: 1 Navigation light, pre-cabled with 0.75 meter shielded marine grade cable and installation guide
• Materials: Black anodized aluminum 25, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• IP rating: IP68
• Connection: 0.75m cable
• Current Consumption (mA @ 24VDC): 110
• Current Consumption (mA @ 12VDC): 167
• Dimensions Metric: 92.5mm x 36mm
• Dimensions Imperial: 3.6" x 1.4"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 2
• Vessel Size: Under 12 meters, 12-20 meters, and 20-50 meters

The Lopolight 360-Degree Anchor Light (Part Number: 201-012-FB-B) offers reliable navigation illumination for vessels under 50 meters. Featuring a durable black anodized aluminum housing, this anchor light provides a 2-nautical-mile visibility range, ensuring your vessel remains visible and compliant with maritime safety standards.

This horizontally mounted light is designed for easy installation with a sleek, low-profile FB base that centers the wiring for antenna-type pole mountings. The base allows for both screw-down deck mounting and from-below mounting options, providing flexibility for various vessel configurations. The included 0.75-meter marine-grade, shielded cable simplifies connection, reducing installation time and ensuring secure electrical contact.

Constructed with high-quality materials including PMMA lens, A4 stainless steel screws, epoxy, and polyurethane, the light is built to withstand harsh marine environments. Its IP68 rating guarantees water and dust resistance, making it suitable for demanding conditions. The light operates on a voltage range of 10 to 32VDC, with a power draw of just 2 watts, and consumes approximately 110mA at 24VDC, ensuring efficient energy usage.

Designed to meet international standards such as COLREG72, IEC 60945, and USCG regulations, this anchor light is approved for use on vessels of various sizes, from under 12 meters to 50 meters in length. Its operating temperature range from -25°C to 55°C allows it to perform reliably across diverse climates. The product's compact dimensions and sleek profile make it an unobtrusive yet essential safety feature on your vessel.

Features:

• Black anodized aluminum housing for durability and corrosion resistance

• Horizontal mounting with FB base for versatile installation options

• Includes 0.75-meter shielded marine-grade cable for easy wiring

• Certified to international maritime safety standards including COLREG72 and USCG

• Waterproof IP68 rating ensures performance in harsh marine conditions

• Low power consumption of 2 watts, suitable for energy-efficient vessel lighting

• Wide operating voltage range of 10-32VDC for compatibility with various power sources

• Designed for vessels under 50 meters, with visibility up to 2 nautical miles
