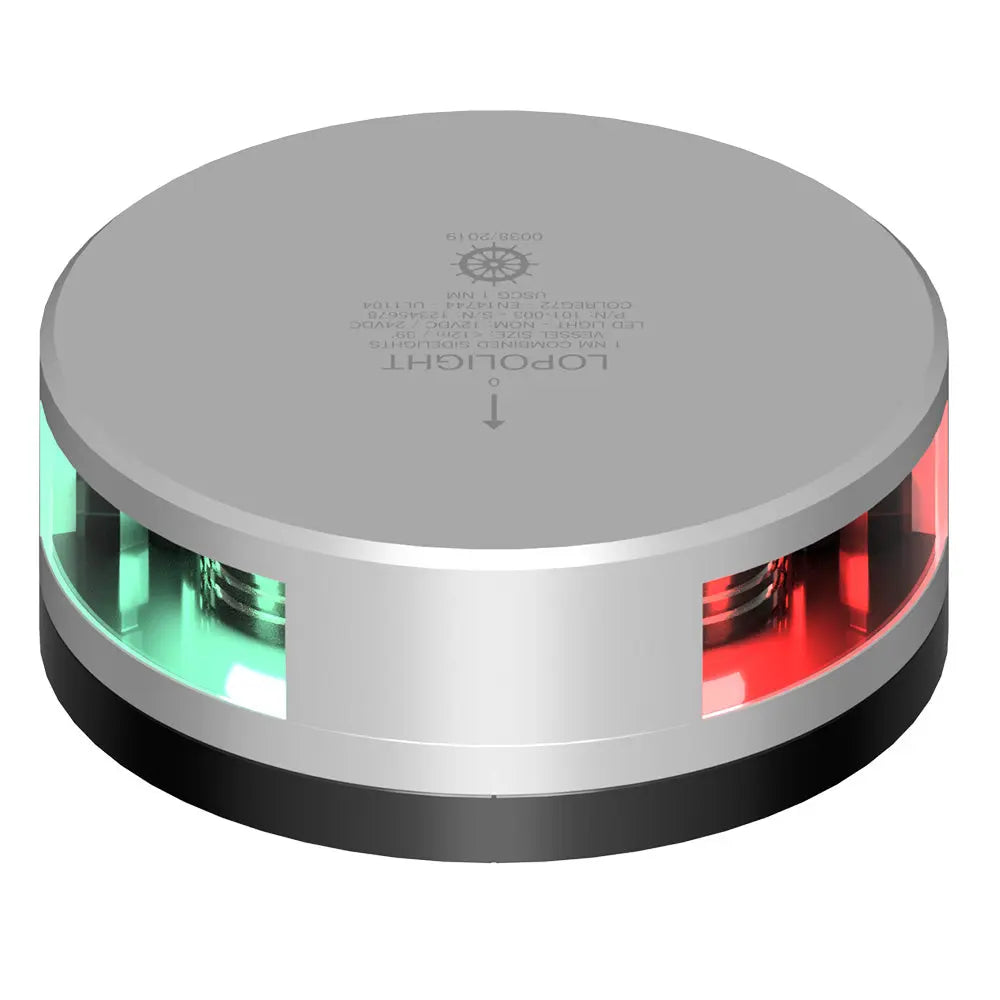

Lopolight Combined Sidelight 1NM Silver Housing with FB Base for Marine Navigation

Combined Sidelight - 1NM - Silver Housing with FB Base

This navigation light is horizontally mounted and has a one-nautical mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Silver anodized housing
• 2.5m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438042605
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: Red, green
• Visibility: 1NM
• Materials: Silver anodized aluminum 25, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• IP rating: IP68
• Connection: 2.5m cable
• Current Consumption (mA @ 24VDC): 48
• Current Consumption (mA @ 12VDC): 87
• Dimensions Metric: 92,5mm x 58mm
• Dimensions Imperial: 3.6" x 1.4"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 1,4
• Vessel Size: Under 12 meters

The Lopolight Combined Sidelight with Part Number 101-003-FB is a highly reliable navigation light designed for vessels under 12 meters. Featuring a durable silver anodized aluminum housing, this sidelight offers a clear visibility of 1 nautical mile, ensuring compliance with international maritime safety standards such as COLREG72, IEC 60945, and USCG regulations. Its horizontally mounted design provides an efficient solution for navigation lighting, suitable for various vessel configurations. The integrated FB base centers the wiring for antenna-type pole mounting, offering a sleek profile with a screw-down deck attachment and from-below mounting options. This versatile base enhances installation flexibility while maintaining a low-profile appearance that minimizes drag and aesthetic impact on your vessel.

Equipped with a 2.5-meter cable, the sidelight ensures straightforward wiring connections, and its materials include A4 stainless steel screws, epoxy, polyurethane, and PMMA lens components, all engineered for durability and resistance to harsh marine environments. The IP68 rated housing guarantees protection against water ingress, making this light suitable for demanding conditions. Operating efficiently within a voltage range of 10-32VDC, it consumes minimal power—approximately 48mA at 24VDC and 87mA at 12VDC—ensuring energy efficiency. The compact dimensions of 3.6 inches by 1.4 inches allow for unobtrusive installation on small vessels.

Designed to withstand temperatures from -25°C to 55°C, the Lopolight sidelight offers reliable performance across diverse climates. Its compliance with multiple certifications, including DNV, ABS, and M.E.D., underscores its suitability for commercial and recreational maritime applications. Whether used as a port or starboard light, this sidelight provides a high-quality, low-profile solution that enhances vessel safety and visibility during night navigation or low-light conditions.

Features:

• Silver anodized aluminum housing for durability and corrosion resistance

• Horizontal mounting design for optimal vessel integration

• Provides 1 nautical mile visibility for effective navigation

• FB base centers wiring for antenna-type pole mountings, offering a sleek low-profile profile

• Includes 2.5-meter cable for easy installation

• Compliance with COLREG72, IEC 60945, USCG, and other international standards

• IP68 rated housing ensures complete water ingress protection

• Operates within 10-32VDC voltage range with low power consumption

• Compact size suitable for vessels under 12 meters
