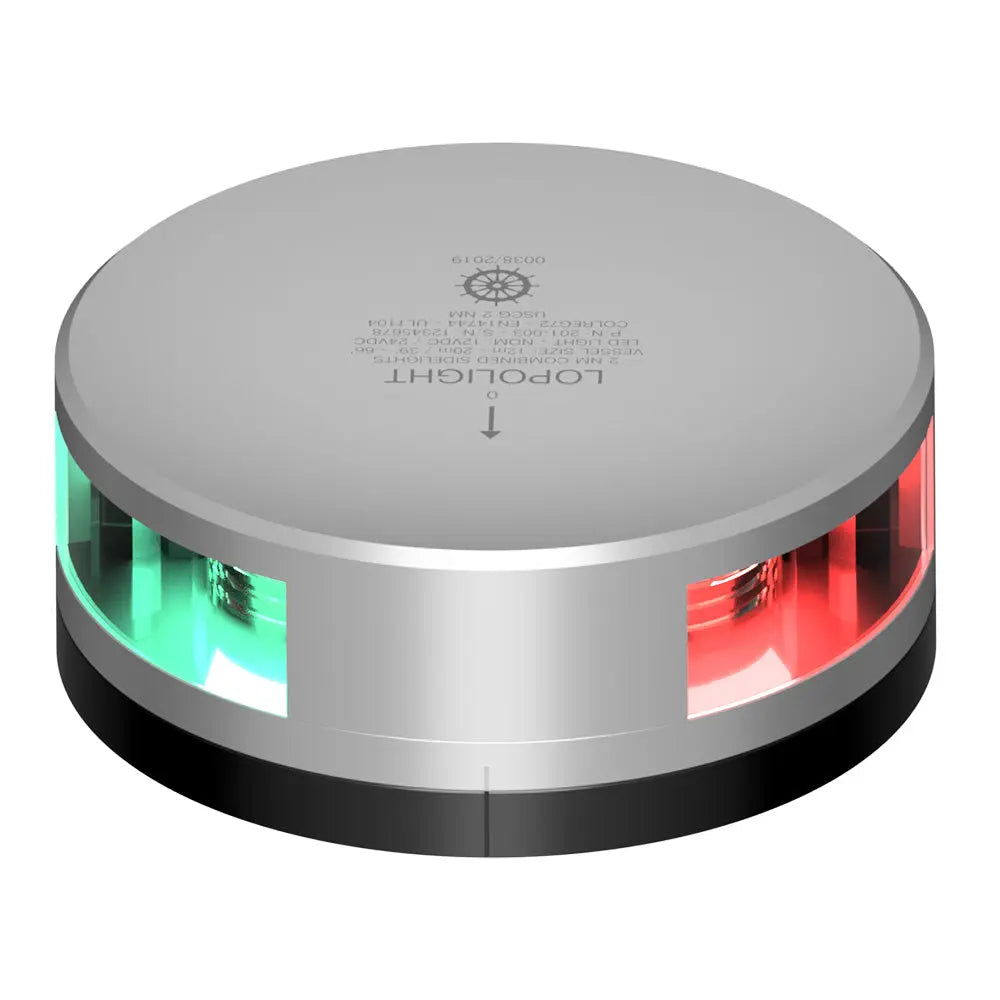

Lopolight Combined Sidelight 2NM with Silver Housing and FB Base

Combined Sidelight - 2NM - Silver Housing with FB Base

This silver sidelight is horizontally mounted and has a two-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Silver anodized aluminum housing
• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438043282
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: Red and green
• Visibility: 2NM
• Included In the Package: 1 Navigation light, pre-cabled with 2.5 meters shielded marine grade cable and installation guide
• Materials: Silver anodized aluminum 25, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• IP rating: IP68
• Connection: 2.5m cable
• Current Consumption (mA @ 24VDC): 90
• Current Consumption (mA @ 12VDC): 163
• Dimensions Metric: 92.5mm x 36mm
• Dimensions Imperial: 3.6" x 1.4"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 2.2
• Vessel Size: Under 12 meters

The Lopolight Combined Sidelight Part Number 201-003-FB offers reliable navigation illumination for vessels under 12 meters. Constructed with a durable silver anodized aluminum housing, this sidelight features a sleek, horizontally mounted design suitable for various marine applications. With a visibility range of 2 nautical miles, it ensures clear signaling in compliance with industry standards such as COLREG72 and IEC 60945. The integrated PMMA lens enhances light transmission, while the included 2.5-meter shielded marine-grade cable simplifies installation. This sidelight is designed to withstand harsh marine environments with an IP68 rating, resistant to water ingress and dust, making it ideal for demanding conditions. The FB base allows for a centered wiring connection, providing a low-profile, secure mounting option that can be screw-down onto the deck or from below, reducing clutter and improving vessel aesthetics. Operating efficiently within 10-32VDC, it consumes only 2.2 watts at full operation, with current draw optimized for energy-conscious vessels. The unit's robust materials include stainless steel screws and epoxy/polyurethane sealing, ensuring long-term durability and corrosion resistance. Suitable for vessels with a length under 12 meters, this navigation light complies with multiple international standards, including USCG, ABS, and DNV, ensuring vessel compliance and safety. The package includes the pre-cabled sidelight and a comprehensive installation guide, making setup straightforward for marine professionals and boat owners alike. Whether for new installations or replacements, the Lopolight Combined Sidelight provides a dependable, high-quality solution for maritime navigation lighting needs.

Features:

• Silver anodized aluminum housing for durability and corrosion resistance

• Horizontal mounting design suitable for various vessel configurations

• Visibility range of 2 nautical miles for reliable navigation signaling

• Includes 2.5-meter shielded marine-grade cable for easy installation

• Integrated PMMA lens enhances light transmission and clarity

• FB base allows for centered wiring and low-profile mounting options

• Approved to multiple international standards including COLREG72 and IEC 60945

• IP68 rated for water and dust ingress protection

• Operates within 10-32VDC with low power consumption of 2.2W

• Suitable for vessels under 12 meters in length
