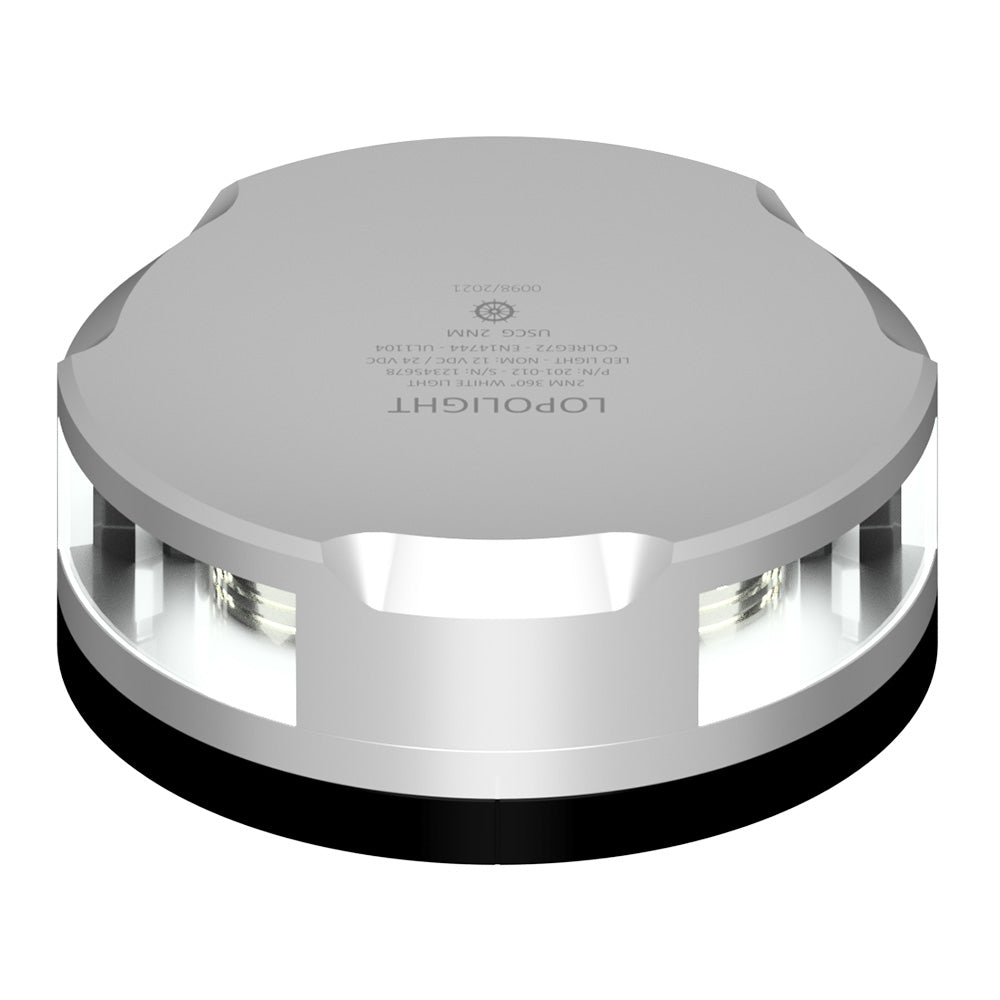

Lopolight Masthead/360-Degree Navigation Light - 2NM Range with Silver Housing and FB Base

Masthead/360-Degree Light - 2NM - Silver Housing with FB Base

This white 360-degree/masthead light has a silver housing, is horizontally mounted, and has a two-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Silver anodized aluminum housing
• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438043510
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: White
• Visibility: 2NM
• Included In the Package: 1 Navigation light, pre-cabled with 0.75 meter shielded marine grade cable and installation guide
• Materials: Silver anodized aluminum 25, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• IP rating: IP68
• Connection: 0.75m cable
• Current Consumption (mA @ 24VDC): 156
• Current Consumption (mA @ 12VDC): 225
• Dimensions Metric: 92.5mm x 36mm
• Dimensions Imperial: 3.6" x 1.4"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 3
• Vessel Size: Under 12 meters, 12-20 meters, and 20-50 meters

The Lopolight Masthead/360-Degree Light (Part No. 201-020-FB) is designed for marine vessels under 50 meters, providing reliable 2-nautical-mile visibility for safety and compliance. Featuring a durable silver anodized aluminum housing, this horizontally mounted navigation light combines robust construction with sleek aesthetics. The integrated FB base allows for easy mounting on antenna-type poles or deck surfaces, offering both screw-down and from-below installation options to ensure a secure fit. The compact design and low-profile profile enhance vessel appearance without sacrificing performance, making it suitable for a variety of vessel sizes and configurations.
Constructed with high-quality materials, including PMMA lenses, A4 stainless steel screws, epoxy, and polyurethane, the light is built to withstand harsh marine environments. It is rated IP68, ensuring complete protection against dust and water ingress, and is approved by multiple international standards including COLREG72, IEC 60945, and USCG. The light operates efficiently within a voltage range of 10-32VDC, consuming only 3 watts at 24VDC, which minimizes power consumption while maintaining high brightness. The included 0.75-meter shielded marine-grade cable simplifies wiring, with compatibility for wire gauges as small as 22 AWG.
This navigation light features a clear white output, maintaining optimal visibility across various weather and sea conditions. Its operating temperature range from -25°C to 55°C ensures reliable performance in diverse climates. Designed for vessels under 50 meters, the light’s compact dimensions make installation straightforward without compromising durability or functionality. Whether installed on small boats or larger yachts, the Lopolight Masthead/360-Degree Light provides a dependable maritime signaling solution that meets international standards and enhances vessel safety.

Features:

• Silver anodized aluminum housing for durability and corrosion resistance

• Horizontal mounting with integrated FB base for flexible installation options

• Provides 2 nautical miles visibility for effective navigation signaling

• IP68 rated for complete dust and water ingress protection

• Includes 0.75-meter marine-grade shielded cable for easy wiring

• Low power consumption of 3 watts at 24VDC, ensuring efficient operation

• Universal voltage range of 10-32VDC for versatile power compatibility

• Approved by multiple international regulatory bodies including COLREG72 and USCG

• Compact size with dimensions of approximately 3.6 inches by 1.4 inches for seamless integration

• Built with high-quality materials such as PMMA lens and stainless steel screws for longevity
