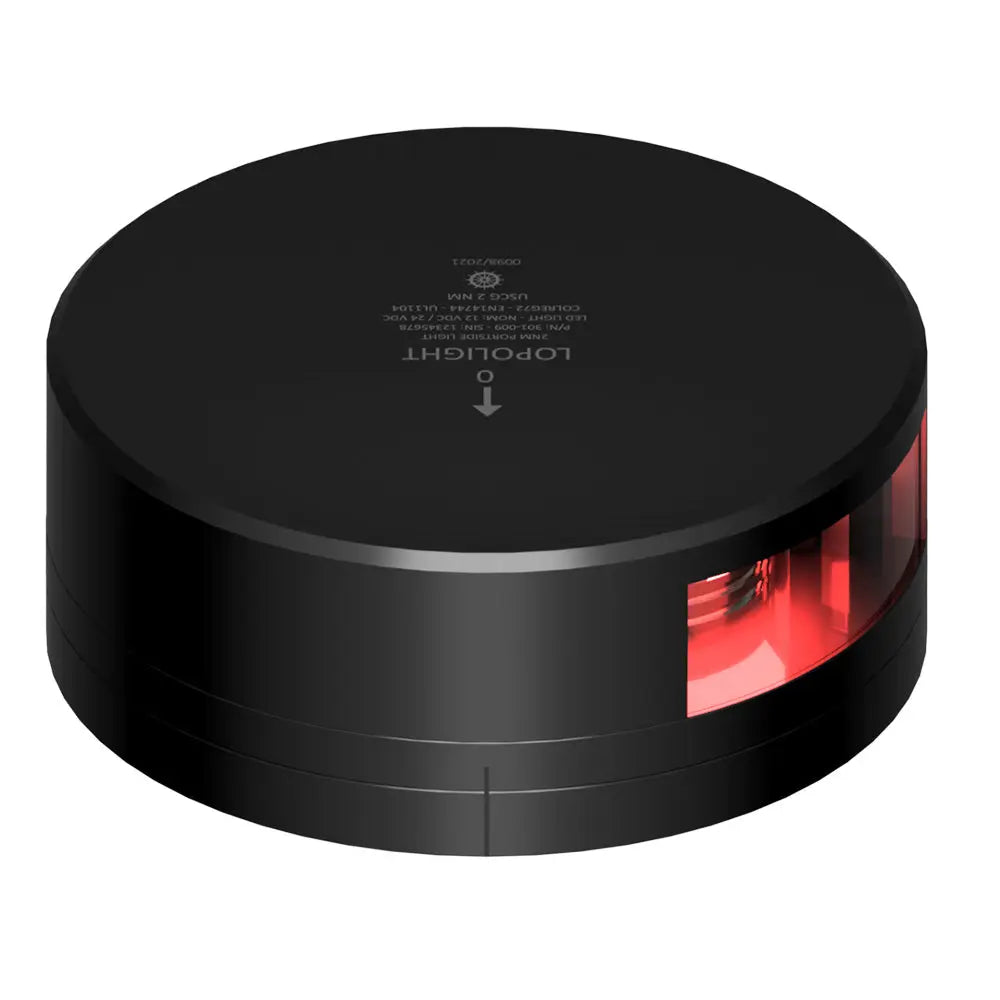

Lopolight Red Port Light - 2 Nautical Miles Range - Black Housing with FB Base

Red Port Light - 2NM - Black Housing with FB Base

This red port light has black housing, is horizontally mounted, and has a two-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Black anodized aluminum housing
• 2.5m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438043862
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: Red
• Visibility: 2NM
• Included In the Package: 1 Navigation light, pre-cabled with 2.5 meters shielded marine grade cable and installation guide
• Materials: Black anodized aluminum 25, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• IP rating: IP68
• Connection: 2.5m cable
• Current Consumption (mA @ 24VDC): 50
• Current Consumption (mA @ 12VDC): 90
• Dimensions Metric: 92.5mm x 36mm
• Dimensions Imperial: 3.6" x 1.4"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 1.2
• Vessel Size: Under 12 meters, 12-20 meters, and 20-50 meters

The Lopolight Red Port Light, part number 301-009-FB-B, is a high-performance navigation light designed for vessel safety and compliance. Featuring a durable black anodized aluminum housing, this light is horizontally mounted and offers a visibility range of two nautical miles, making it suitable for vessels under 50 meters. The integrated FB base centers the wiring for antenna-type pole mountings, providing a sleek profile with a screw-down deck mount or from-below mounting options. The included 2.5-meter shielded marine-grade cable ensures reliable power connection and ease of installation.
Constructed from robust materials such as black anodized aluminum, PMMA lens, and A4 stainless steel screws, this light is engineered to withstand harsh marine environments. With an IP68 rating, it is fully sealed against dust and water ingress, ensuring longevity and reliable operation in demanding conditions. It complies with key standards including COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, and LR, making it suitable for a wide range of commercial and recreational vessels.
The light operates over a voltage range of 10 to 32 volts DC and consumes only 1.2 watts at 24VDC, with current draw of 50 mA at 24VDC and 90 mA at 12VDC. Its compact dimensions of approximately 3.6 inches in length and 1.4 inches in width make it ideal for vessels under 50 meters. The unit is designed to operate within temperatures from -25°C to 55°C, ensuring dependable performance in diverse climates. Installation is straightforward with the supplied installation guide, and the light is suitable for vessel sizes ranging from under 12 meters up to 50 meters, fulfilling the requirements for maritime navigation safety.
Whether for new installations or replacements, the Lopolight Red Port Light provides a reliable, compliant, and durable solution for navigation lighting needs on various vessels.

Features:

• Black anodized aluminum housing for durability

• Horizontally mounted with FB base for streamlined installation

• Two-nautical-mile visibility range for effective navigation

• Includes 2.5-meter shielded marine-grade cable for easy wiring

• Sealed IP68 rating ensures protection against dust and water

• Complies with international maritime standards including COLREG72 and IEC 60945

• Suitable for vessels under 50 meters in length

• Operates on 10-32VDC with low power consumption

• Corrosion-resistant stainless steel screws and epoxy/polyurethane sealing materials

• Compact dimensions for versatile vessel installation
