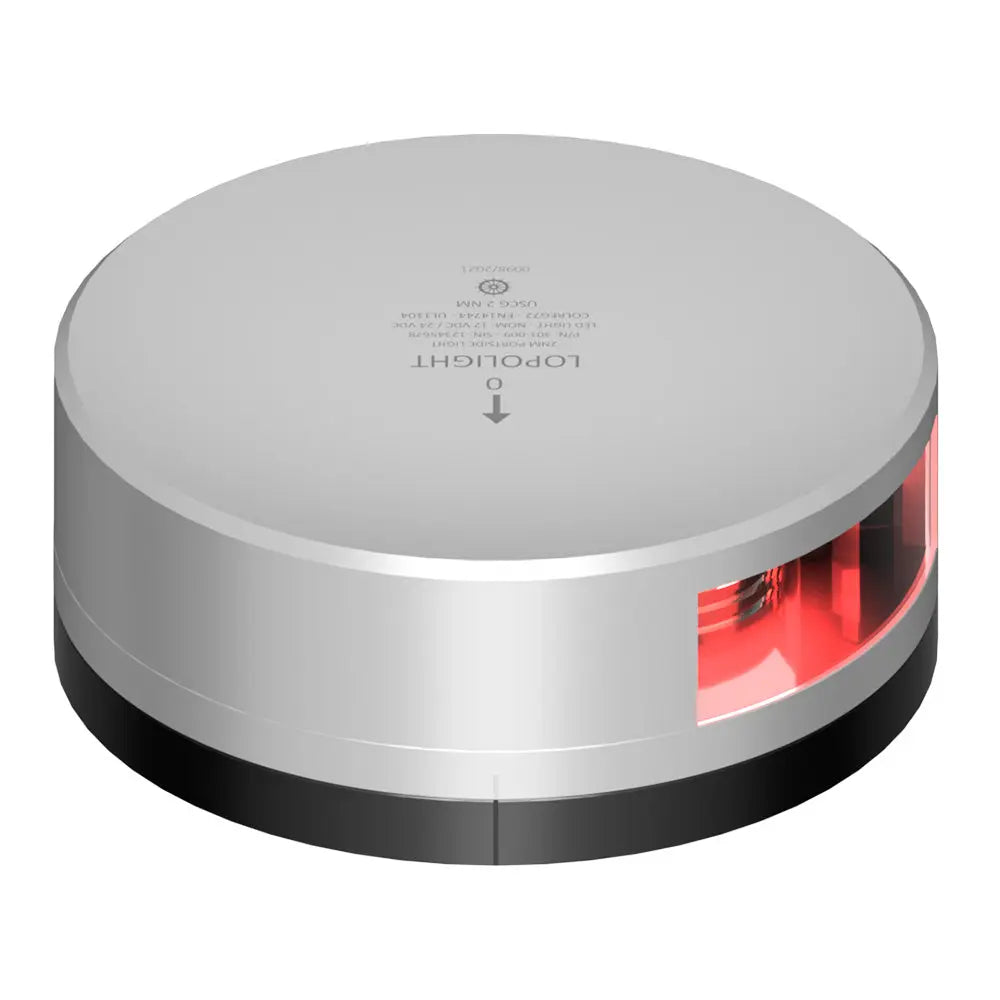

Lopolight Red Port Light - 2 Nautical Miles Range - Silver Housing with FB Base

Red Port Light - 2NM - Silver Housing with FB Base

This red port light has a silver housing, is horizontally mounted, and has a two-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Silver anodized aluminum housing
• 2.5m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438043725
• Min. Feed Wire Gauge: 0.5mm² AWG22
• Light Color: Red
• Visibility: 2NM
• Included In the Package: 1 Navigation light, pre-cabled with 2.5 meters shielded marine grade cable and installation guide
• Materials: Silver anodized aluminum 25, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• IP rating: IP68
• Connection: 2.5m cable
• Current Consumption (mA @ 24VDC): 50
• Current Consumption (mA @ 12VDC): 90
• Dimensions Metric: 92.5mm x 36mm
• Dimensions Imperial: 3.6" x 1.4"
• Operating Temperature: -25 degrees C to 55 degrees C
• Operating Voltage: 10-32VDC
• Power Draw (W): 1.2
• Vessel Size: Under 12 meters, 12-20 meters, and 20-50 meters

The Lopolight Red Port Light model 301-009-FB features a sleek silver anodized aluminum housing designed for durability and corrosion resistance in marine environments. This horizontally mounted navigation light offers a visibility range of 2 nautical miles, making it suitable for vessels under 50 meters. Its compact profile and integrated FB base allow for easy, secure deck mounting with options for screw-down or from-below attachment, ensuring a streamlined appearance.

Constructed with high-quality materials including a PMMA lens, A4 stainless steel screws, epoxy, and polyurethane, this port light meets international standards such as COLREG72, EN14744, IEC 60945, and USCG requirements. The IP68 rating guarantees protection against water ingress, making it suitable for harsh marine conditions. The included 2.5-meter shielded marine-grade cable simplifies installation, with compatibility for wire gauges from 0.5mm² (AWG22) and operating voltages between 10V and 32V DC. The light consumes approximately 50mA at 24V DC and 90mA at 12V DC, drawing only 1.2 watts of power, which contributes to energy efficiency.

Designed for vessels under 12 meters, between 12 and 20 meters, or 20 to 50 meters in length, this navigation light provides reliable, long-lasting operation across a wide temperature range from -25°C to 55°C. The package includes the pre-cabled light and an installation guide, enabling straightforward setup. Its compact dimensions of approximately 3.6 inches by 1.4 inches make it an unobtrusive yet highly functional addition to your vessel's navigation system.

Features:

• Silver anodized aluminum housing for durability and corrosion resistance

• Horizontal mounting with FB base for secure deck installation

• 2 nautical miles visibility range for effective navigation

• Includes 2.5-meter shielded marine-grade cable for easy wiring

• Meets international marine safety standards including COLREG72 and USCG

• IP68 rated for complete water ingress protection

• Compatible with 10-32V DC power sources with low power consumption

• Compact size suitable for vessels under 50 meters

• Operates reliably across temperature ranges from -25°C to 55°C
