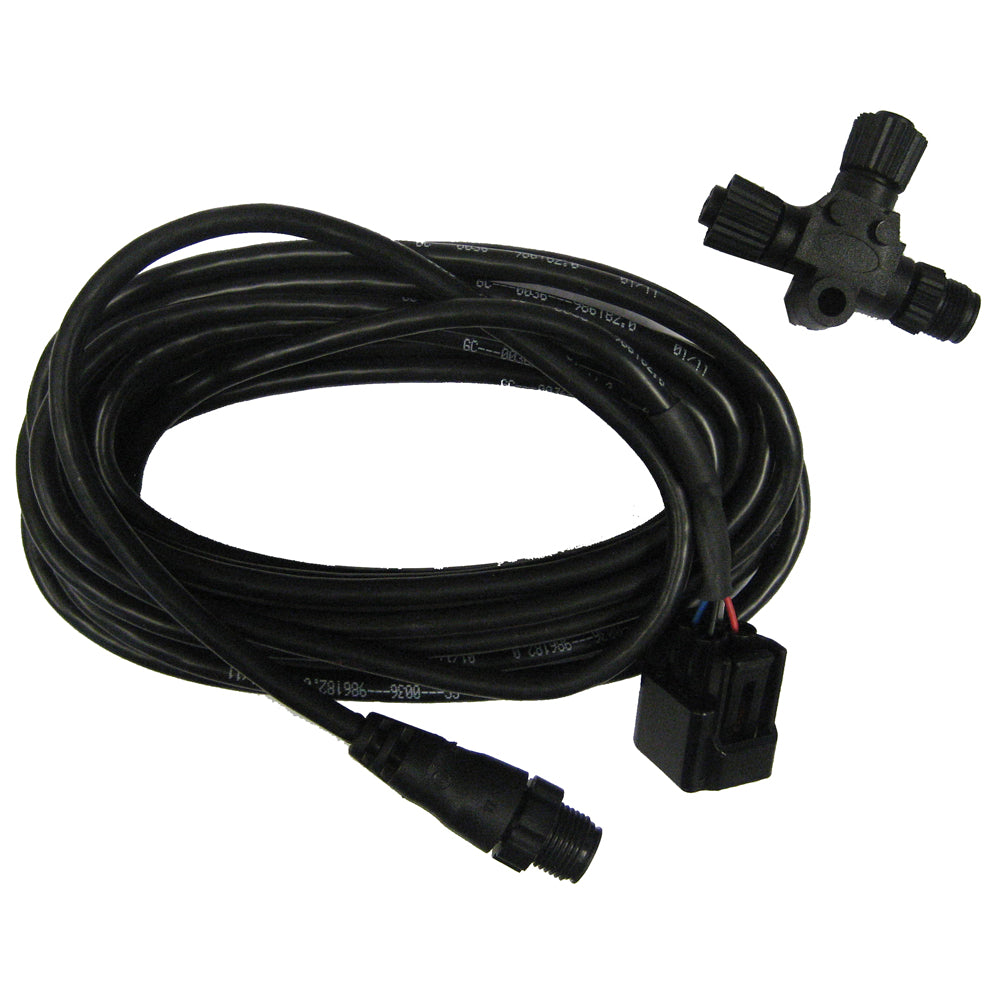

Lowrance 120-37 Yamaha Engine Interface Cable with T-Connector

Yamaha Engine Interface Cable

Yamaha engine interface cable 4.5 m (15 ft) and T-connector

Connects to Yamaha engines without Yamaha CommandLink Plus system.

• 2006 & newer: F50, T50, F60, T60, F75, F90, F115, LF115, F150, LF150, F200, LF200, F225, F225, F250, LF250.

• 2006 & newer: Z150, LZ150, VZ150, Z175, Z200, LZ200, VZ225, Z250, LZ250, VZ250, Z300, LZ300, VZ300.

Outputs:
Yamaha 4-Stroke 50-250 | 2-Stroke HDPI 150-350

RPM
Alternator
Voltage
Engine Hours
Engine Temperature
Fuel Pressure
Fuel Rate
Oil Pressure
Trim*
Water Pressure

*Digital trim must be connected by a Yamaha dealer.

*Requires NMEA 2000 network. Kit includes T-connector to connect to a new or existing NMEA 2000 network. Add NMEA 2000 starter kit, part number 000-0124-69, if a network is not already installed.

Works with: NMEA 2000 Compliant Units

Lowrance 120-37 Yamaha Engine Interface Cable provides a reliable connection between compatible Yamaha outboard engines and NMEA 2000-compliant marine electronics. The cable is designed for Yamaha engines that do not use the Yamaha CommandLink Plus system and includes a T-connector for connecting to a new or existing NMEA 2000 network.

This interface supports a wide range of Yamaha four-stroke and two-stroke HPDI engines from 2006 and newer, including select F50 through F300 models, LF models, and Z, LZ, and VZ series outboards. Once connected, compatible Lowrance displays and other NMEA 2000 devices can receive important engine data for convenient monitoring at the helm.

Outputs:
Yamaha 4-Stroke 50-250 | 2-Stroke HPDI 150-350

Available engine information includes RPM, alternator status, voltage, engine hours, engine temperature, fuel pressure, fuel rate, oil pressure, trim, and water pressure. Digital trim functionality must be connected by a Yamaha dealer. The interface requires an NMEA 2000 network for operation. If a network is not already installed, add the Lowrance NMEA 2000 starter kit, part number 000-0124-69.

Built for integration with NMEA 2000-compliant units, the Lowrance 120-37 helps consolidate essential engine performance data on compatible marine displays. It is a practical solution for boaters who want improved engine awareness, simplified instrumentation, and dependable Yamaha outboard connectivity without a Yamaha CommandLink Plus system.

Features:

• Yamaha Compatibility: Connects to compatible Yamaha engines from 2006 and newer without the Yamaha CommandLink Plus system.

• Engine Data Monitoring: Provides RPM, alternator, voltage, engine hours, engine temperature, fuel pressure, fuel rate, oil pressure, trim, and water pressure data.

• NMEA 2000 Integration: Works with NMEA 2000-compliant marine electronics and requires an NMEA 2000 network.

• Included T-Connector: Includes a T-connector for connecting the interface to a new or existing NMEA 2000 network.

• Dealer Configuration: Digital trim functionality must be connected by a Yamaha dealer.
