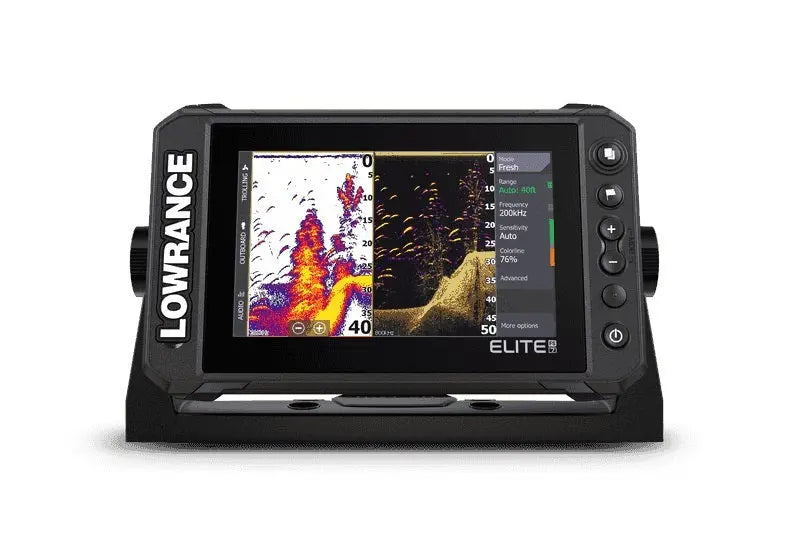

Lowrance Elite FS 7 Active Imaging 3 in 1 Transducer

Explore the Lowrance Elite FS 7 with Advanced Active Imaging Technology

Lowrance Elite FS 7 Active Imaging 3 in 1 Transducer

Lowrance Elite FS 7 Display with C-Map Contour+ and Active Imaging 3 in 1 Transdcuer

Model: 000-15688-001

• ActiveTargetTM Live Sonar ready
• FishRevealTM
• Preloaded C-MAP Contour+ with 1-foot contours on 8,900 lakes, plus mapping options including C-MAP, Navionics(R) and more
• C-MAP(R) Easy Routing, Navionics(R) Autorouting capability
• C-MAP Genesis Live onscreen mapping
• High-resolution multi-touch touchscreen
• Integrated wireless, NMEA 2000(R) and Ethernet connectivity
• Full touchscreen control of Power Pole(R) anchors and Ghost(R) Trolling Motor

The Elite Fishing System (FS) combines the power of Lowrance's proven and newest fishfinding tools with a more affordable display that's easier to use and install. From ActiveTargetTM Live Sonar and extreme high-resolution Active ImagingTM with Lowrance CHIRP sonar, SideScan and DownScan ImagingTM to preloaded C-MAP(R) Contour+ Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish.

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active ImagingTM 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishRevealTM. Get the best of CHIRP sonar and DownScan ImagingTM on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Fish smarter when you know exactly what fish are doing - in real time - with ActiveTargetTM Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it's time to switch things up.

Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP(R) Contour+ inland and coastal charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 8,900 U.S. lakes.

Specifications

Operating temperature range-15 degC to +55 degC (5 degF to 131 degF)

Storage temperature
-20 degC to +60 degC (4 degF to 140 degF)

Waterproof rating
IPX6 and IPX7

Electrical

Supply voltage
12 V DC (10 - 17 V DC min - max)

Recommended fuse rating
3 A

Power consumption (maximum)
28 W (2 A at 13.8 V DC)

Display

Resolution
800 x 480 pixels

Viewing angles in degrees
50 deg top, 60 deg bottom, 70 deg left and right

Brightness
> 1200 nits

Touch screen
Multitouch

Physical

Weight (display only)
0.9 kg (1.9 lbs.)

Compass Safe Distance
0.5 m (1.6 ft.)

Interface/Connectivity

NMEA 2000(R)
1 port (Micro-C connector)

Data card reader
1x slot (microSD, SDXC)

Ethernet
1 port, (5-pin Ethernet connector, 100Base-T)

Sonar
1 port (9-pin connector)

WiFI Internal
802.11b/g/n : No wireless networking between units

Bluetooth(R)
4.0 with support for Bluetooth(R) Classic

GPS
10Hz high speed update WAAS, MSAS, EGNOS, GLONASS

What's in the Box:

• Elite FS 7 Display
• Suncover
• Mounting bracket and knobs
• Power cable
• Fuse and Fuse holder
• Active Imaging 3-IN-1 Transducer

Innovative Lowrance Active Imaging 3 in 1 Transducer Technology

The Lowrance Elite FS 7 features a cutting-edge Active Imaging 3 in 1 transducer that combines three essential sonar technologies—high-frequency CHIRP, SideScan, and DownScan Imaging—into a single compact unit. This integration enhances underwater visibility, allowing anglers to identify fish and structures with exceptional clarity. Lowrance’s transducer delivers crystal-clear images by sending precise sonar pulses that bounce off underwater objects, providing detailed views that improve fishing success. This technology is ideal for both freshwater and saltwater environments, making the Elite FS 7 an indispensable tool for serious anglers.

High-Resolution Display for Clear and Accurate Readings

The Elite FS 7’s high-resolution display ensures that the detailed sonar images provided by the Lowrance transducer are shown with remarkable clarity and color accuracy. Its 7-inch screen offers wide viewing angles, making it easier to interpret sonar returns even in bright sunlight. The combination of the display and transducer allows users to differentiate fish species, identify submerged vegetation, and locate underwater terrain with confidence. This bright and intuitive interface helps anglers react quickly to fish activity and optimize their fishing strategies.

Seamless Integration and User-Friendly Features

Designed for the demanding needs of anglers, the Lowrance Elite FS 7 supports easy installation and comprehensive connectivity options. The system integrates effortlessly with existing marine electronics such as GPS, autopilot, and mapping software, enhancing navigation and location tracking. Additionally, its user-friendly interface provides customizable menu settings and multiple sonar views that anglers can adjust on the fly. The Elite FS 7 is built to maximize fishing efficiency without compromising ease of use, making it a top choice among professional and hobbyist fishermen alike.
