Lowrance Elite FS 7 All Season Pack

Discover the Power of Lowrance Elite FS 7 All Season Pack

Lowrance Elite FS 7 All Season Pack

Model: 000-15885-001

• ActiveTarget Live sonar and Active Imaging compatible: Live Sonar: Supports sonar accessories such as ActiveTargetTM and Active ImagingTM 3-in-1 Sonar
• Full networking capability: Multiple Displays: Share sonar, charting, waypoints, and other user data between displays
• High Resolution Multi-touch screen
• Preloaded with C-MAP Contour + charts (AMER,APAC)
• NMEA 2000(R): Support and control NMEA 2000(R) devices
• Halo Radar: Drive Lowrance radar domes directly
• Total Control: Full touchscreen control of Power Pole(R) anchors and Ghost(R) Trolling Motor

The new EliteTM Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools - including ActiveTargetTM live sonar, Active ImagingTM, FishRevealTM and preloaded C-MAP(R) ContourTM + charts

Specifications

Operating temperature range-15 degC to +55 degC (5 degF to 131 degF)

Storage temperature
-20 degC to +60 degC (4 degF to 140 degF)

Waterproof rating
IPX6 and IPX7

Electrical

Supply voltage
12 V DC (10 - 17 V DC min - max)

Recommended fuse rating
3 A

Power consumption (maximum)
28 W (2 A at 13.8 V DC)

Display

Resolution
800 x 480 pixels

Viewing angles in degrees
50 deg top, 60 deg bottom, 70 deg left and right

Brightness
> 1200 nits

Touch screen
Multitouch

Physical

Weight (display only)
0.9 kg (1.9 lbs.)

Compass Safe Distance
0.5 m (1.6 ft.)

Interface/Connectivity

NMEA 2000(R)
1 port (Micro-C connector)

Data card reader
1x slot (microSD, SDXC)

Ethernet
1 port, (5-pin Ethernet connector, 100Base-T)

Sonar
1 port (9-pin connector)

WiFI Internal
802.11b/g/n : No wireless networking between units

Bluetooth(R)
4.0 with support for Bluetooth(R) Classic

GPS
10Hz high speed update WAAS, MSAS, EGNOS, GLONASS

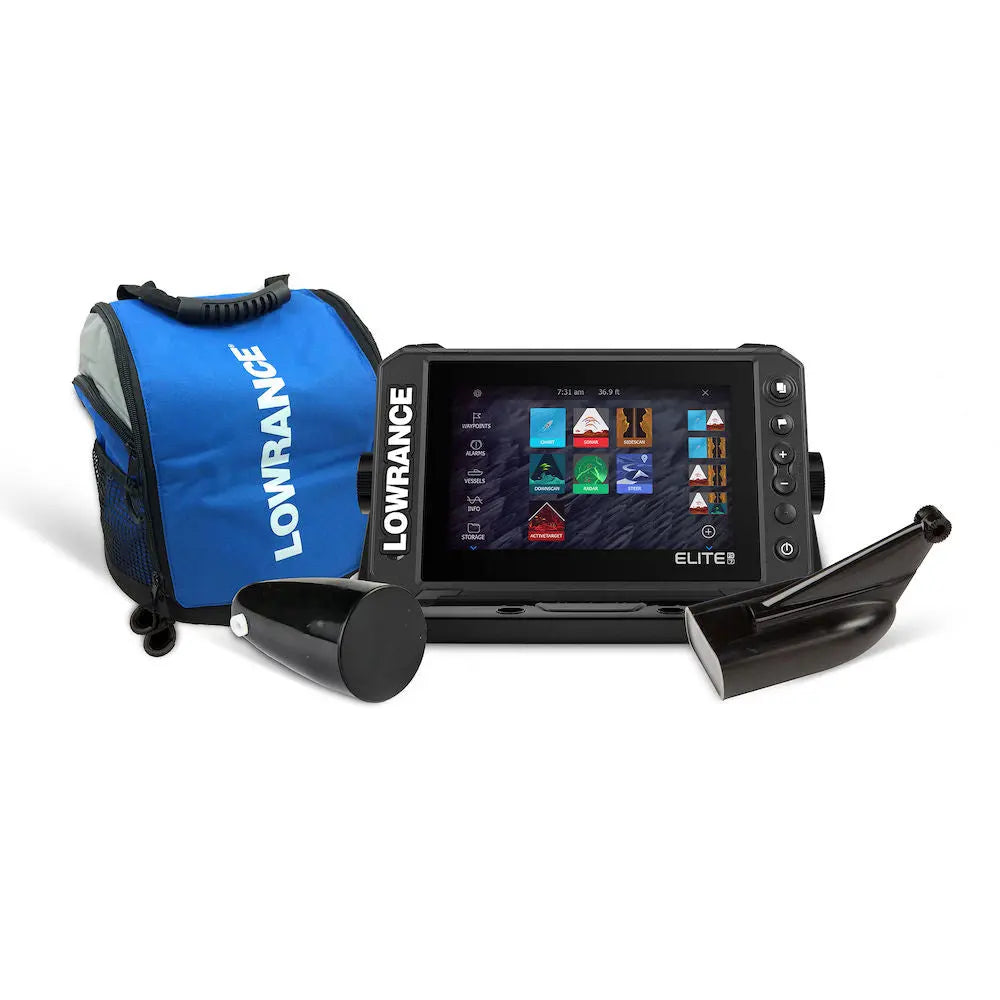

What's in the Box:

• Elite FS 7 No Transducer Display
• Carrying Bag
• HDI Skimmer Transducer
• Suction Cup Mounting Kit
• Ice Transducer
• Battery and Charger

Advanced Sonar Technology for Accurate Fish Detection

The Lowrance Elite FS 7 is equipped with cutting-edge sonar technology that provides exceptional clarity and precise fish targeting. Its FishReveal feature allows anglers to easily distinguish fish from structure and cover, increasing catch rates. The high-frequency Chirp sonar delivers clear images of underwater objects, making it ideal for all fishing environments. Whether you're fishing in shallow waters or deep lakes, this device offers reliable performance to maximize your success on every trip.

High-Resolution Display for Crisp Visuals

The Elite FS 7 sports a bright 7-inch color display with a 1024 x 600 pixel resolution, ensuring sharp and vivid visuals even in direct sunlight. This screen size offers ample viewing space, making it easier to interpret sonar readings and navigate maps. Its anti-reflective coating enhances visibility, reducing glare during outdoor use. The intuitive touchscreen interface further enhances user experience, allowing quick access to controls and settings without distracting from your fishing.

Comprehensive All Season Pack for Versatile Use

This All Season Pack not only includes the Lowrance Elite FS 7 but also essential accessories designed to support fishing throughout the year. The package typically contains a transducer, power cable, mounting hardware, and a detailed user guide, making installation straightforward. Designed to withstand harsh weather conditions, the unit is rugged and waterproof, ideal for anglers who fish in various environments. This combination of features ensures that you’re fully equipped to enjoy smooth and efficient fishing regardless of season.
