Lowrance Elite FS 7 HDI Transducer C-Map Contour+

Discover the Features of the Lowrance Elite FS 7 HDI

Lowrance Elite FS 7 HDI Transducer C-Map Contour+

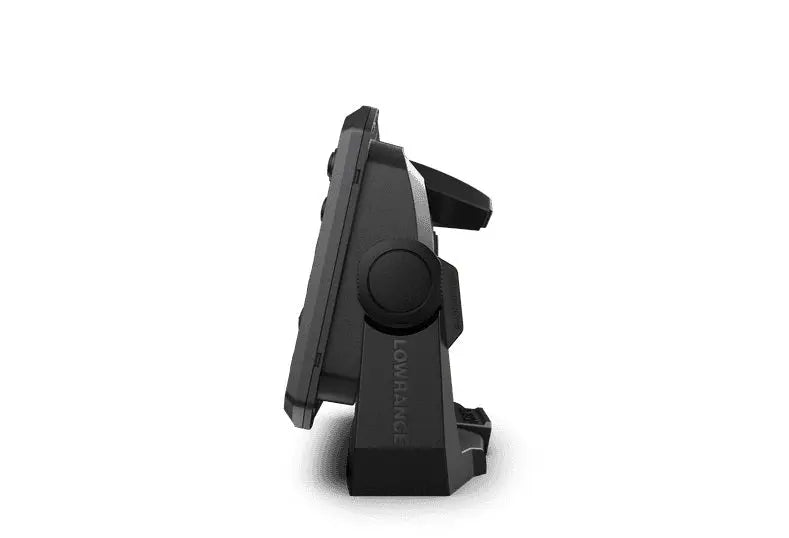

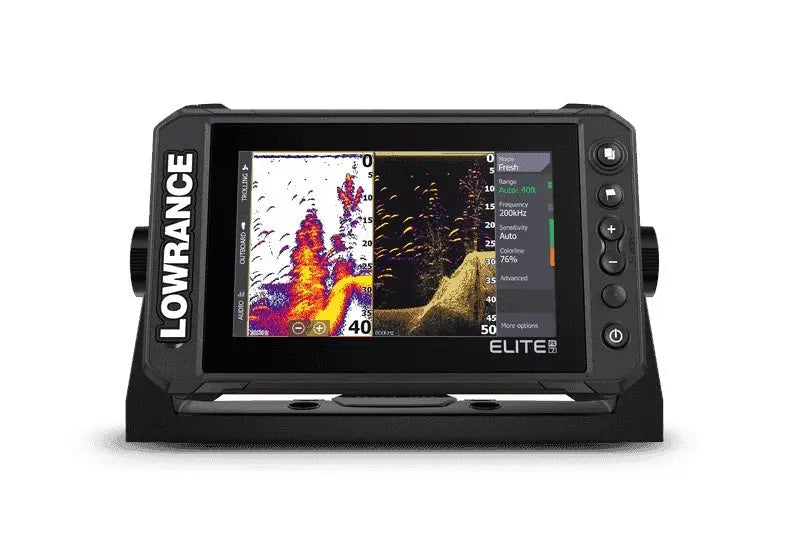

Lowrance Elite FS 7 Display with C-Map Contour+ and HDI 83/200/455/800kHz Transom Transducer

Model: 000-15696-001

• ActiveTarget Live sonar and Active Imaging compatible: Live Sonar: Supports sonar accessories such as ActiveTargetTM and Active ImagingTM 3-in-1 Sonar
• Full networking capability: Multiple Displays: Share sonar, charting, waypoints, and other user data between displays
• High Resolution Multi-touch screen
• Preloaded with C-MAP Contour + charts (AMER,APAC)
• NMEA 2000(R): Support and control NMEA 2000(R) devices
• Halo Radar: Drive Lowrance radar domes directly
• Total Control: Full touchscreen control of Power Pole(R) anchors and Ghost(R) Trolling Motor

The new EliteTM Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools - including ActiveTargetTM live sonar, Active ImagingTM, FishRevealTM and preloaded C-MAP(R) ContourTM + charts

Specifications

Operating temperature range-15 degC to +55 degC (5 degF to 131 degF)

Storage temperature
-20 degC to +60 degC (4 degF to 140 degF)

Waterproof rating
IPX6 and IPX7

Electrical

Supply voltage
12 V DC (10 - 17 V DC min - max)

Recommended fuse rating
3 A

Power consumption (maximum)
28 W (2 A at 13.8 V DC)

Display

Resolution
800 x 480 pixels

Viewing angles in degrees
50 deg top, 60 deg bottom, 70 deg left and right

Brightness
> 1200 nits

Touch screen
Multitouch

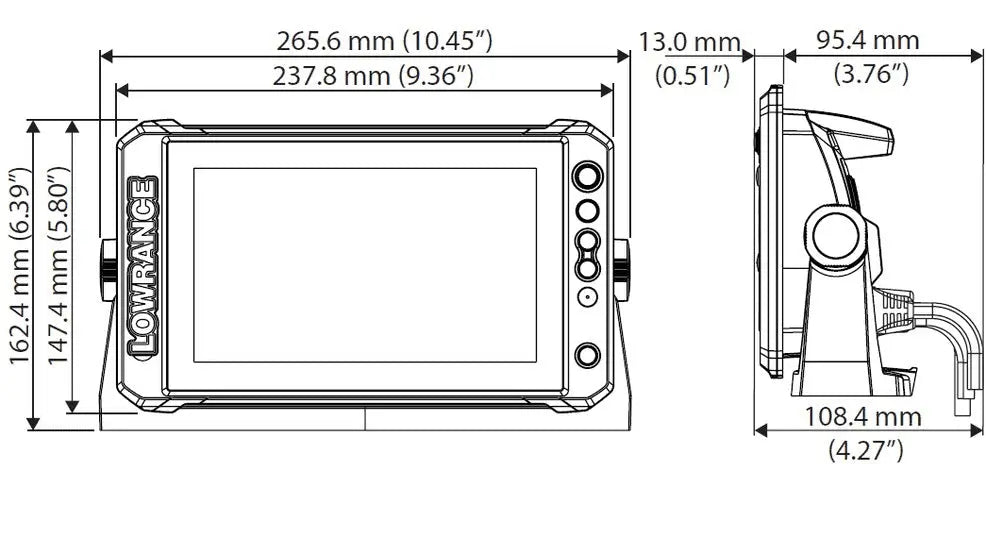

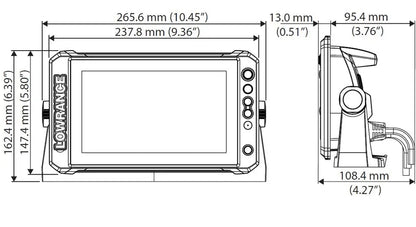

Physical

Weight (display only)
0.9 kg (1.9 lbs.)

Compass Safe Distance
0.5 m (1.6 ft.)

Interface/Connectivity

NMEA 2000(R)
1 port (Micro-C connector)

Data card reader
1x slot (microSD, SDXC)

Ethernet
1 port, (5-pin Ethernet connector, 100Base-T)

Sonar
1 port (9-pin connector)

WiFI Internal
802.11b/g/n : No wireless networking between units

Bluetooth(R)
4.0 with support for Bluetooth(R) Classic

GPS
10Hz high speed update WAAS, MSAS, EGNOS, GLONASS

What's in the Box:

• Elite FS 7 Display
• Suncover
• Mounting bracket and knobs
• Power cable
• Fuse and Fuse holder
• HDI Skimmer(R) transducer 83/200/455/800kHz

Advanced Sonar Technology

The Lowrance Elite FS 7 HDI integrates high-definition sonar technology that delivers crystal-clear underwater imaging. This allows anglers to detect fish and underwater structures with unprecedented detail and accuracy. The HDI (High Definition Imaging) transducer enables dual-frequency sonar operation, providing wider coverage and sharper views below the water surface. This feature makes it easier to identify fish targets versus other objects, ensuring a more rewarding fishing experience. The seamless blend of ClearWater and DownScan imaging expands your awareness under the boat, offering a competitive edge on every trip.

Comprehensive Mapping with C-Map Contour+

Equipped with the C-Map Contour+ mapping system, the Lowrance Elite FS 7 HDI offers detailed nautical charts featuring depth contours, navigational aids, and key landmarks. This charting solution is designed for both freshwater and saltwater anglers, delivering high-resolution detail to help plot accurate courses and locate fishing hotspots. The intuitive interface allows easy zooming and panning so you can explore your favorite waters or discover new fishing grounds. C-Map Contour+ enhances navigation accuracy and ensures safer, smarter trips on the water.

User-Friendly Interface and Durable Design

The Lowrance Elite FS 7 HDI features a bright, 7-inch solar-powered display designed for excellent visibility even in direct sunlight. Its touchscreen interface is smooth and responsive, simplifying setup and operation for users of all experience levels. The device is built with robust marine-grade materials, making it resistant to the harsh conditions often faced on boats, such as water splashes and temperature fluctuations. Easy-to-install and compatible with a range of transducers and accessories, this unit is an essential tool for every angler seeking reliable performance and convenience.
