Lowrance Elite FS 7 No Transducer

Explore the Features of the Lowrance Elite FS 7

Lowrance Elite FS 7 No Transducer

Lowrance Elite FS 7 Display with C-Map Contour+

Model: 000-15703-001

• ActiveTarget Live sonar and Active Imaging compatible: Live Sonar: Supports sonar accessories such as ActiveTargetTM and Active ImagingTM 3-in-1 Sonar
• Full networking capability: Multiple Displays: Share sonar, charting, waypoints, and other user data between displays
• High Resolution Multi-touch screen
• Preloaded with C-MAP Contour + charts (AMER,APAC)
• NMEA 2000(R): Support and control NMEA 2000(R) devices
• Halo Radar: Drive Lowrance radar domes directly
• Total Control: Full touchscreen control of Power Pole(R) anchors and Ghost(R) Trolling Motor

The new EliteTM Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools - including ActiveTargetTM live sonar, Active ImagingTM, FishRevealTM and preloaded C-MAP(R) ContourTM + charts

Specifications

Operating temperature range-15 degC to +55 degC (5 degF to 131 degF)

Storage temperature
-20 degC to +60 degC (4 degF to 140 degF)

Waterproof rating
IPX6 and IPX7

Electrical

Supply voltage
12 V DC (10 - 17 V DC min - max)

Recommended fuse rating
3 A

Power consumption (maximum)
28 W (2 A at 13.8 V DC)

Display

Resolution
800 x 480 pixels

Viewing angles in degrees
50 deg top, 60 deg bottom, 70 deg left and right

Brightness
> 1200 nits

Touch screen
Multitouch

Physical

Weight (display only)
0.9 kg (1.9 lbs.)

Compass Safe Distance
0.5 m (1.6 ft.)

Interface/Connectivity

NMEA 2000(R)
1 port (Micro-C connector)

Data card reader
1x slot (microSD, SDXC)

Ethernet
1 port, (5-pin Ethernet connector, 100Base-T)

Sonar
1 port (9-pin connector)

WiFI Internal
802.11b/g/n : No wireless networking between units

Bluetooth(R)
4.0 with support for Bluetooth(R) Classic

GPS
10Hz high speed update WAAS, MSAS, EGNOS, GLONASS

What's in the Box:

• Elite FS 7 Display
• Suncover
• Mounting bracket and knobs
• Power cable
• Fuse and Fuse holder

Innovative Display and Interface

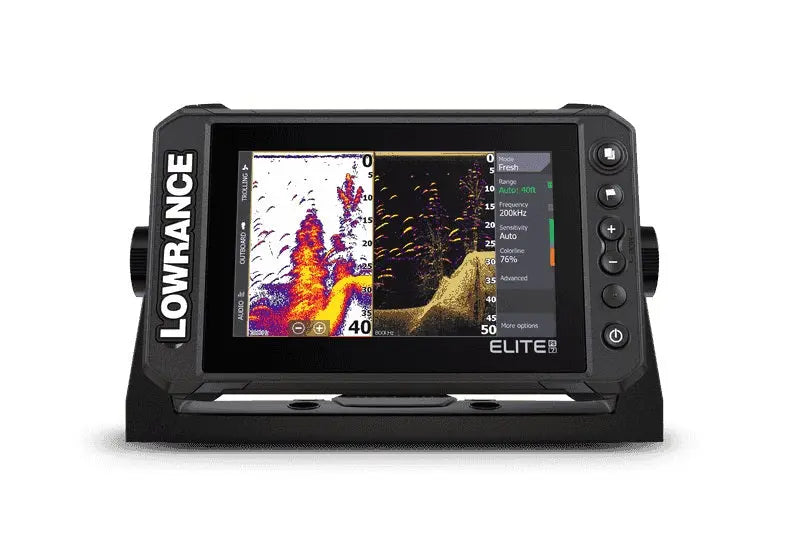

The Lowrance Elite FS 7 offers a bright, high-resolution 7-inch SolarMAX® display designed to provide crystal-clear images in all lighting conditions. Its user-friendly interface combines simplicity with functionality, allowing anglers to easily navigate menus and settings. Whether you're scanning for fish or mapping new waters, this fish finder ensures an immersive experience with vibrant colors and sharp graphics, enhancing your ability to locate fish quickly and efficiently.

Advanced Sonar Technology

Equipped with Broadband Sounder™ technology, the Lowrance Elite FS 7 delivers detailed sonar returns with excellent target separation. This advanced sonar system helps anglers identify fish, structure, and bottom composition with high accuracy. The absence of a transducer in this model means it can easily integrate with existing transducers or third-party options, providing flexibility to tailor the sonar setup to your specific fishing needs.

Customizable Features and Connectivity

Lowrance built the Elite FS 7 to be versatile and connectable, supporting NMEA 2000® network compatibility and wireless sharing via Bluetooth. Anglers can customize their display views and easily update maps or firmware for optimal performance. Without the transducer, users can select a transducer unit that best suits their fishing style, making this fish finder an ideal choice for those wanting tailored functionality coupled with the trusted Lowrance brand quality.
