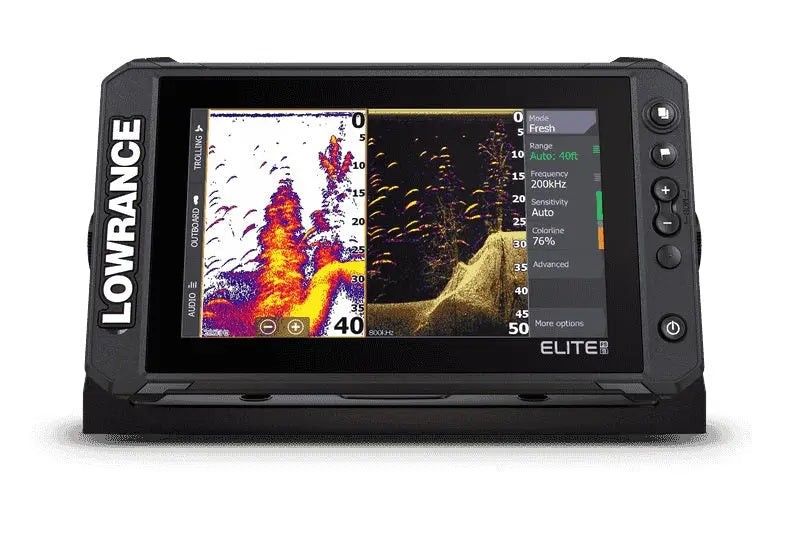

Lowrance Elite FS 9 No Transducer

Explore the Power and Precision of Lowrance Elite FS 9 No Transducer

Lowrance Elite FS 9 No Transducer

Model: 000-15707-001

• ActiveTarget Live sonar and Active Imaging compatible: Live Sonar: Supports sonar accessories such as ActiveTargetTM and Active ImagingTM 3-in-1 Sonar
• Full networking capability: Multiple Displays: Share sonar, charting, waypoints, and other user data between displays
• High Resolution Multi-touch screen
• Preloaded with C-MAP Contour + charts (AMER,APAC)
• NMEA 2000(R): Support and control NMEA 2000(R) devices
• Halo Radar: Drive Lowrance radar domes directly
• Halo Radar: Drive Lowrance radar domes directly

Specifications

Operating temperature range-15 degC to +55 degC (5 degF to 131 degF)

Storage temperature
-20 degC to +60 degC (4 degF to 140 degF)

Waterproof rating
IPX6 and IPX7

Electrical

Supply voltage
12 V DC (10 - 17 V DC min - max)

Recommended fuse rating
3 A

Power consumption (maximum)
28 W (2 A at 13.8 V DC)

Display

Resolution
800 x 480 pixels

Viewing angles in degrees
50 deg top, 60 deg bottom, 70 deg left and right

Brightness
> 1200 nits

Touch screen
Multitouch

Physical

Weight (display only)
1.2 kg (2.7 lbs.)

Compass Safe Distance
0.5 m (1.6 ft.)

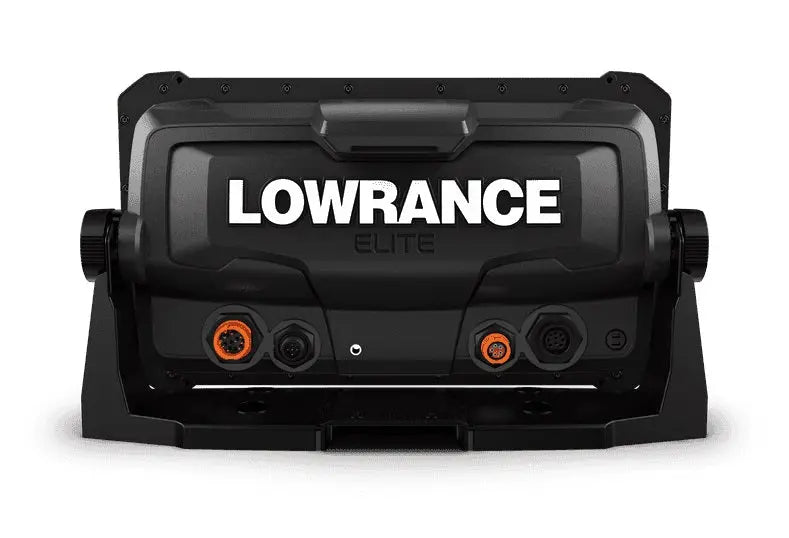

Interface/Connectivity

NMEA 2000(R)
1 port (Micro-C connector)

Data card reader
1x slot (microSD, SDXC)

Ethernet
1 port, (5-pin Ethernet connector, 100Base-T)

Sonar
1 port (9-pin connector)

WiFI Internal
802.11b/g/n : No wireless networking between units

Bluetooth(R)
4.0 with support for Bluetooth(R) Classic

GPS
10Hz high speed update WAAS, MSAS, EGNOS, GLONASS

What's in the Box:

• Elite FS 9 Display
• Sun cover
• Mouning bracket and knobs
• Power cable
• Fuse and fuse holder

Advanced Sonar Technology for Clearer Underwater Views

The Lowrance Elite FS 9 units deliver cutting-edge sonar capabilities, providing anglers with crystal-clear underwater images. Even without a transducer included, the system supports a broad range of traditional and CHIRP sonar frequencies when paired with compatible transducers. This gives users flexible sonar options that reveal fish location, structure, and bottom composition with remarkable detail. Whether you’re fishing in freshwater or saltwater, the Lowrance Elite FS 9 ensures high-resolution imaging and better target separation, making your fishing trips more successful and enjoyable.

Built-In GPS and Highly Intuitive User Interface

Equipped with a fast and reliable GPS-plotter, the Lowrance Elite FS 9 allows precise navigation and waypoint marking for safe and efficient travel on water. The large 9-inch touchscreen display features a clear, bright interface that is easy to read even in direct sunlight. Its user-friendly layout simplifies access to essential functions and customization, helping anglers spend more time fishing instead of fumbling with controls. The Intelligent Sonar Switching automatically selects the best sonar settings, enhancing your underwater experience.

Expandable and Compatible for Future Upgrades

One of the main advantages of the Lowrance Elite FS 9 No Transducer package is its flexibility and expandability. The unit supports a wide range of compatible transducers, enabling anglers to tailor their setup according to their specific fishing needs. It also integrates with other Lowrance devices, such as wireless modules and radar, to enhance your marine electronics system. This level of customization ensures the Elite FS 9 remains a valuable tool for years, adapting to advancing sonar and navigation technologies.
