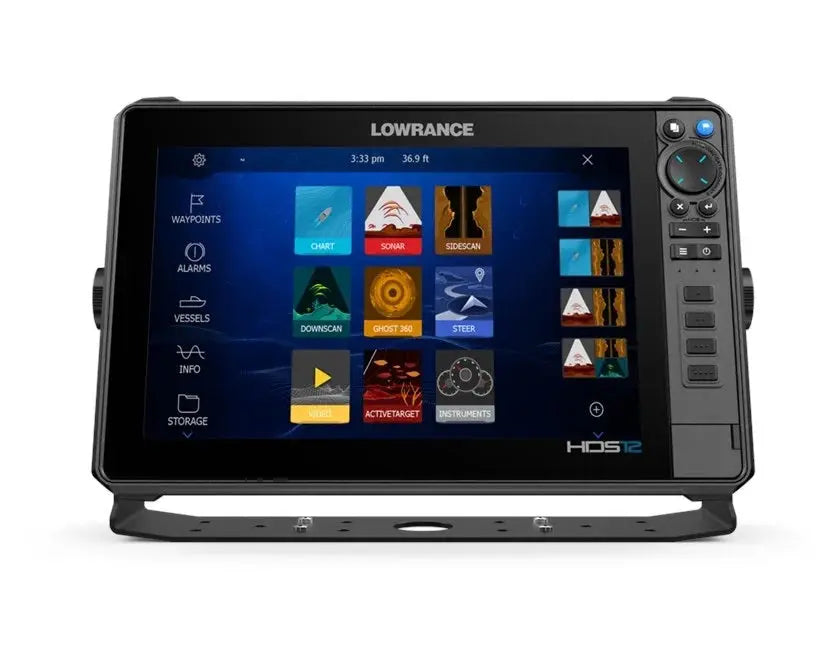

Lowrance HDS12 Pro 12in MFD C-Map US & Canada Active Imaging HD 3In1
Lowrance HDS12 Pro PRO with C-MAP Discover USA and Canada, ActiveImagingTM HD 3-in-1 Transducer
Model: 000-15987-001
See more and catch more with the new HDS(R) Pro, giving you the clearest and most-detailed views with new, higher-resolution ActiveTarget(R) 2 Live Sonar and new, ultra high-definition Active ImagingTM HD. Our clearest sonar ever, Active ImagingTM HD delivers high-definition views of Lowrance CHIRP sonar, SideScan and DownScan ImagingTM. FishRevealTM has also been expanded to be available on SideScan* and DownScan, making fish easier to identify to the sides and beneath the boat. (*Requires S3100 Module) ActiveTarget(R) 2 Live Sonar provides higher-resolution views of fish movement and structure. It also supports plug-and-play installation of two ActiveTarget(R) systems, making it possible to watch multiple views simultaneously, and to widen Front and Scout modes for better bait tracking.
The better your view, the better your fishing. From the high-definition touchscreen display to the high-level clarity of the newly-enhanced Lowrance sonar, HDS(R) Pro delivers a full range of meaningful underwater views that will take your fishing experience from good to great. The SolarMAXTM HD touchscreen provides stunning images of fish, structure and chart details that are easy to see from any angle, in direct sunlight and through polarized lenses - a real difference maker on the water. See unmatched clarity on-screen with Lowrance's superior, high-resolution Active ImagingTM HD sonar and ActiveTarget(R) 2 Live Sonar technologies.
Spend more time catching fish and less time finding them with pre-loaded C-MAP(R) charts. Get full-featured vector charts, custom depth shading, high-res coastal coverage and 1-foot contours on more than 19,000 lakes across the U.S. and more than 9,400 in Canada. HDS(R) Pro also introduces a new chart overlay option, allowing you to view ActiveTarget(R) Scout Mode or Ghost(R) 360 trolling motor mode directly on the chart screen. For anglers that want to select their own chart, HDS(R) PRO supports a wide range of third-party chart options, including C-MAP(R), Navionics(R), Florida Marine Tracks and more.
HDS(R) PRO gives you full bow-to-stern networking and expanded control of the Ultimate Fishing System, including new Ghost(R) Trolling Motor features like Ghost 360, Orbit Waypoint and Anchor at a Distance. With HDS(R) Pro at the heart of your fishing system, it's easy to customize your boat to fit the way you fish with your choice of fish-finding, navigation, network and entertainment options. HDS(R) PRO offers support for the complete range of top fish-finding technologies - from ActiveTarget(R) 2 Live Sonar and Active ImagingTM HD to touchscreen control of Power-Pole(R) Anchors, Ghost(R) Trolling Motor and more. Expand your system -- taking advantage of radar, autopilot and NMEA 2000(R) compatibility -- and add SiriusXM(R) Weather/Audio to monitor changing weather conditions and to listen to your favorite tunes.
The expanded options and capabilities of HDS(R) Pro give you more ways to customize your boat to better fit your fishing needs. Beyond the 9, 10, 12 and 16-inch screen sizes, HDS(R) Pro can also be expanded to deliver additional views and features. Simply add an S3100 sonar module and Active ImagingTM Transducer to enable the new FishRevealTM SideScan view, making it easier to identify fish to the sides of the boat. Anglers can also add a second ActiveTarget(R) system to better target fish by viewing multiple ActiveTarget 2 live sonar displays at the same time. With plug-and-play installation, expanding your fishing has never been easier.
Specifications
Backlight ColorPure White LED
Display Resolution
1280 x 800
Screen Brightness
>1200 Nits
Viewing Angles
80 deg top/bottom, 80 deg left/right
Electrical
Power Consumption max
3.6A @ 13VDC with Full Backlight, Sonar on
Power Consumption min
2.3A @ 13VDC with Full Backlight, Sonar on
Power Consumption typical
2.3A @ 13VDC with Full Backlight, Sonar on
Recommended Fuse Rating
5A
Supply Voltage
12 v DC (10.8-17 V DC)
Physical
Dimensions
W x H x D 13.68in (347.5mm) x 9.00in (228.5mm) x 3.26in (82.9mm)
Weight
6.5lb (2.95kg)
Compass Safe
1.6 ft (50 cm)
Mounting Type
Panel mount or bracket mount
Environment
Humidity
60 degC, 95% relative humidity (RH) for 18 hours
Operating Temperature Range
5 degF to 131 degF (-15 degC to 55 degC )
Shock Vibration
100,000 cycles of 20 G
Storage Temperature Range
4 degF to 140 degF (-20 degC to 60 degC )
Waterproof rating
IPX7 with card door closed
Interface
Touchscreen
Full Multi-touch touchscreen
Keypad
8-way directional keypad
User programable keys
4
Buttons
Zoom +/-, Exit, Enter, Menu, Waypoint, Power / Light
Connectivity
Bluetooth(R)
Bluetooth(R) 5.2 with support for Bluetooth(R) classic
Ethernet Ports
2 x 100 Mbit, 6 max MFD's on a network
Connectivity Wi Fi
Internal 802.11b/g/n and Compatible with WiFi-1 Module
NMEA 2000
1x Micro-C
SD Card Storage
via Power cable
Video
Output
None
Composite video
1 xRCA - single channel via an optional adaptor cable
HDMI
1 port for external input (HDMI(R) 1.4 sink and HDCP)
GPS
Correction
DGPS, WAAS
GPS Receiver Channels
16
Position Accuracy
20m RMS
Time to First Fix
30s
Update rate
10 Hz
MFD
Sonar Compatibility
Integrated: Dual channel CHIRP Broadband, ActiveTarget (2), ActiveImaging (HD) DownScan, ActiveImaging (HD) SideScan. Compatible with: S3100, StructureScan, StructureScan3D, S5100, SonarHub
Radar
All HALO Radars
Weather
SiriusXM via WM-4 (USA only)
AIS
AIS Chart and Radar overlay. Target vessel details.
Autopilot
NAC-1, NAC-2, NAC3, Outboard Pilot, MotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
Digital Switching
CZone, Naviop, DDS
GPS
10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
Internal Storage
8.0 GB Internal
Multimedia
SonicHub, SonicHub 2, FusionLink products, any NMEA 2000 compliant Marine Audio products
Sonar Output Power
1kW
Waypoints, Routes, Tracks
3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail
HTML5
Support for third part HTML apps
Autopilot Maneuvers Turn Patterns
Course, Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
Steering Modes
Course, Heading, Waypoint, Power Steer
What's in the Box:
The Lowrance HDS12 Pro 12-inch Multi-Function Display (MFD) is designed for anglers and boaters seeking top-tier navigation and fishfinding performance. Equipped with comprehensive C-Map US & Canada mapping, this device provides detailed charts for both freshwater and saltwater environments. Its large 12-inch screen offers easy readability and touchscreen controls. The built-in Active Imaging HD 3In1 sonar combines CHIRP, SideScan, and DownScan technologies, delivering crystal-clear underwater images. This integration supports precise fish targeting and structure identification, making the Lowrance HDS12 Pro an essential tool for serious fishermen and navigators alike.

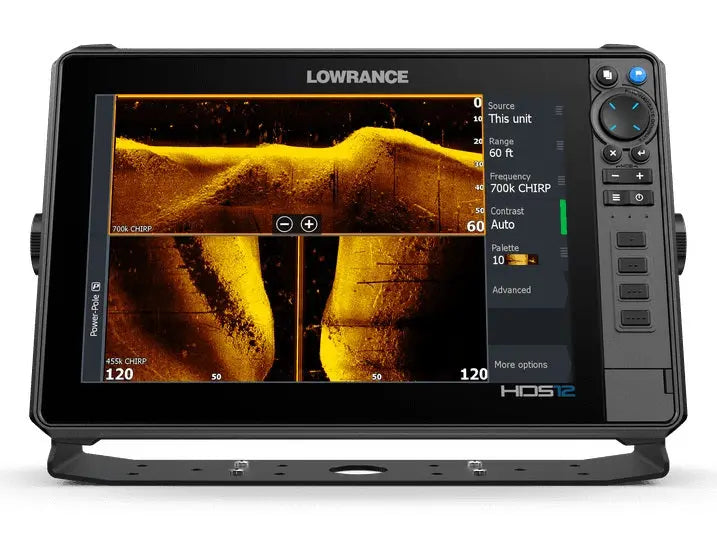

One of the standout features of the Lowrance HDS12 Pro is the Active Imaging HD 3In1 sonar technology. This innovative system blends CHIRP sonar with SideScan and DownScan imaging, providing highly detailed views beneath and beside your boat. The result is superior target separation and clarity, enabling users to easily distinguish between fish and underwater structures. This sonar versatility allows for thorough exploration of various aquatic environments. Whether fishing in shallow lakes or deep coastal waters, the Lowrance HDS12 Pro ensures reliable data and images to optimize your fishing strategy and improve catch rates.
The included C-Map US & Canada mapping on the Lowrance HDS12 Pro enhances navigation safety and efficiency. These detailed charts cover an extensive range of locations, featuring depth contours, navigation aids, and coastline details. Users benefit from reliable route planning whether on inland waterways or coastal trips. The seamless integration with the HDS12’s multi-function display allows quick access to essential data and responsive map interaction. Fishermen can mark waypoints, track routes, and monitor current conditions easily, making the Lowrance HDS12 Pro indispensable for a smooth and confident marine experience.
