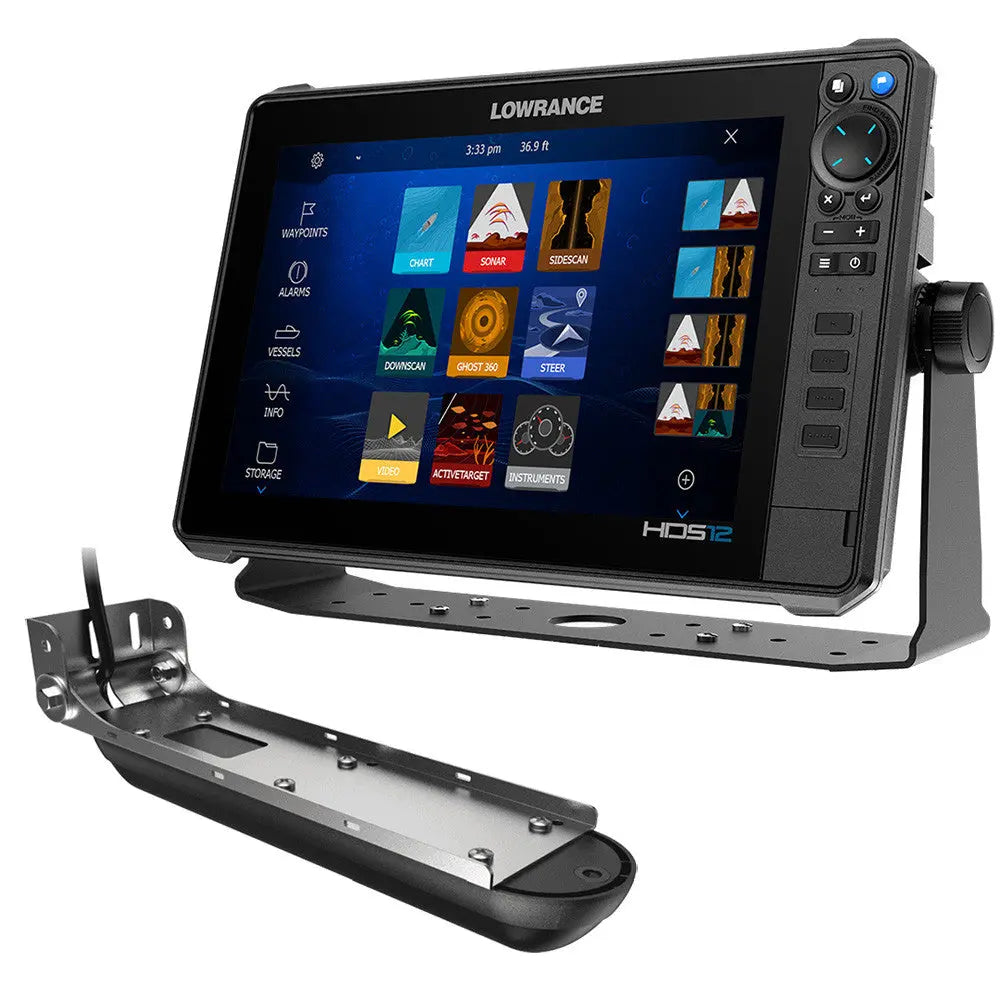

Lowrance HDS12 Pro 12in MFD C-Map US & Canada AI 3n1 Transducer

Lowrance HDS12 Pro 12in MFD C-Map US & Canada AI 3n1 Transducer

Model: 000-16521-001

• Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes


• SolarMAX HD Touchscreen is viewable at extreme angles and through polarized lenses


• High-definition Active Imaging HD ready (Lowrance CHIRP/SideScan/DownScan Imaging)


• High-resolution ActiveTarget 2 Live Sonar ready


• FishReveal with SideScan view, as well as Downscan (*Requires S3100 and compatible transducer)


• Real-time mapping is available with C-MAP Genesis Live.


• Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views


• Large programmable keys


• Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot


• NMEA 2000, wireless and Bluetooth, connectivity — plus smartphone notifications

See more and catch more with the HDS PRO 12 fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget® 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging HD. Quickly locate prime fishing areas with preloaded C-MAP DISCOVER OnBoard charts and get a full fishing system that networks with expanded boat control from bow to stern.

Active Imaging 3-in-1 Transom Mount Transducer: See structure and cover with a level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging 3-in-1 sonar featuring CHIRP, SideScan, and DownScan with FishReveal. The high-level clarity, target separation, and detail of Active Imaging will help you find more fish by making it easier to quickly identify fish-holding structure like rockpiles, standing timber, weedbeds, ditches, and drop-offs — all at a greater distance from your boat. Get the best of CHIRP sonar and DownScan on one screen with the exclusive FishReveal Smart Target view that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Specifications

Display

Backlight Color
Pure white LED

Display Resolution
1280 x 800

Viewing Angles
80 degrees top/bottom, 80 degrees left/right

Connectivity

Bluetooth
Integrated Bluetooth 4.0 with support for Bluetooth Classic

Ethernet Ports
2 x 100 Mbit, 6 max MFDs on a network

Connectivity WiFi
Internal 802.11b/g/n and compatible with WiFi-1 Module

NMEA 2000 Connectivity
1x Micro-C

SD Card Storage
2 micro SD cards up to 32GB

Electrical

Power Consumption Max
3.6A @ 13VDC with full backlight, sonar on

Power Consumption Minimum
2.3A @ 13VDC with full backlight, sonar on

Power Consumption Typical
2.3A @ 13VDC with full backlight, sonar on

Recommended Fuse Rating
5A

Supply Voltage
12V DC (10.8-17VDC)

GPS

GPS Receiver Channels
16

Update rate
10 Hz

MFD (Multi-Function Display)

Cartography included
C-MAP Discover OnBoard (AMER models)

Internal Storage
8.0 GB Internal

Waypoints, Routes, Tracks
3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail

What's in the Box:

• HDS PRO fishfinder/chartplotter (12-inch display screen)


• C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter)


• Active Imaging 3 in 1 Transom Mount Transducer
