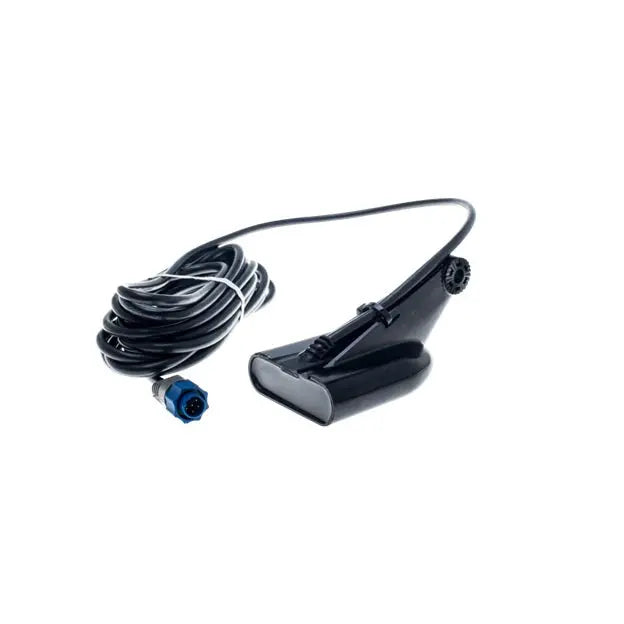

Lowrance HST-DFSBL TM 50/200 Depth And Temp Blue Connector

Lowrance HST-DFSBL TM 50/200 Depth And Temp Blue Connector

Lowrance HST-DFSBL 50/200 kHz Transom Mount Skimmer with Temp

• 50 kHz with 29° beam width


• 200 kHz with 12° beam width


• Up to 900 m (3000 ft) range at 50 kHz


• 1 internal broadband ceramic


• Transom-mounted with plastic housing


• Suitable for any hull


• Ideal for outboards and I/O vessels up to 8 m (20ft) in length


• Recommended for use with the SonarHub sounder module, Simrad NSS evo2 & NSS sport multifunction displays

The dual-frequency HST-DFSBL includes a single ceramic element delivering both 50 kHz with a 29° beam width, and 200 kHz with a 12° beam width. 50 kHz low-frequency operation offers a maximum operational depth of 900 m (3000 ft), while 200 kHz high-frequency provides higher-resolution fish arches and bottom detail in shallower water.

One sensor does it all. Able to measure both depth and temperature in a single package, the HST-DFSBL simplifies installation and requires just one connection to your echosounder module or multifunction display.

With plastic housing, the HST-DFSBL is suitable for transom mounting on any hull. Transom-mounted transducers are designed for smaller outboard and I/O boats, and are well suited to planing hulls. Transom mounting offers simple installation and maintenance, and the transducer can be adjusted easily to compensate for transom angle.

• HST-DFBL Transducer


• Mounting Kit
