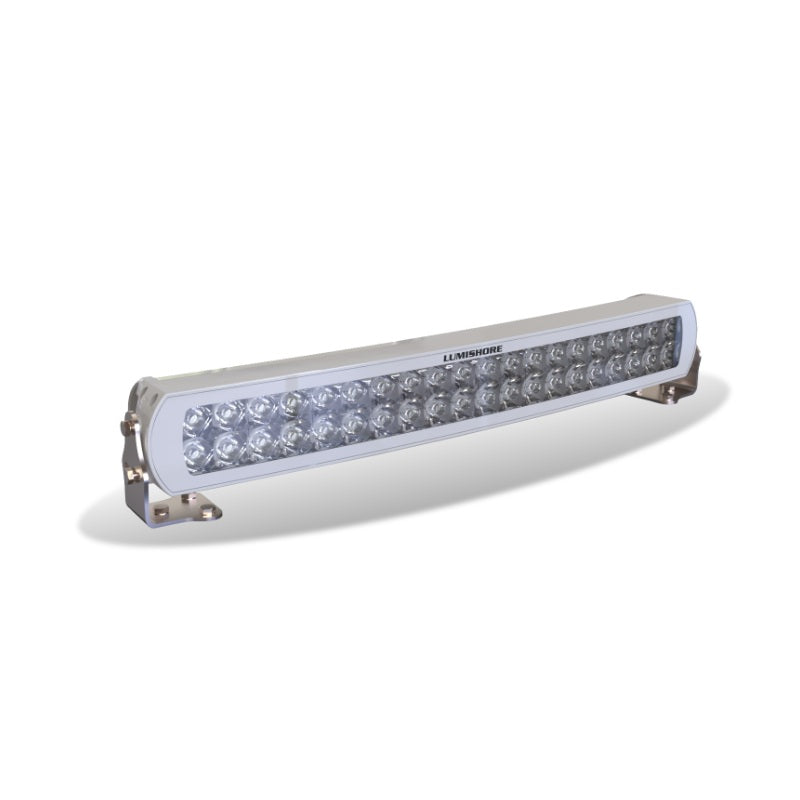

Lumishore 20in Curved Lightbar White LED, White Housing 12/24vDC

Lumishore 20in Curved Lightbar White LED, White Housing 12/24vDC

Model: 010-04462-00

Designed to offer a high-intensity light source, Lumishore Light Bars cover a wide spread area.

The 20'' (60cm) Light Bar generates a powerful 15,000 fixture lumens of crisp, white light to illuminate the hardest to see places.

Designed to withstand extreme marine environments, completely water tight (IP68 compliant) and constructed with marine-grade powder coated aluminium. These sleek, low profile lights enhance your boat's fit-out, even when not in use.

Suitable for T-Tops, helm roofs, fishing towers and bow platforms.

Controllable via an on/off switch, ECLIPSE Command Center or EOS-LUX Command Center.

Specifications

Available colors
White (5500 K)

Lumens
33,750

Fixture Lumens
15,000

Number & Type Of LED
40 x 10W White LED

LED Power HICOB Array
Yes

Typical LED Life
50,000+ Hours

User Control Options
On/Off Switch (Third party supplied), ECLIPSE Command Center or EOS-LUX Command Center

Electrical Installation
Simple 2 Wire Connection (3 Wires when used with EOS-LUX Command Center)

Housing Type
Powder Coated Aluminium Body with Makrolon Lens

Driver
Internal

Supply Voltage Range
10.5—31 V DC

Max Current Draw 12/24V
12.8 A/6.4 A

Beam Angle
9° - 20° Letterbox Beam (Vert - Horiz)

Water Ingress Protection Rating
IP68

Warranty
3 Years

What's in the Box:

• One (1) Light Bar - Curved 20"


• Stainless steel bracket and fasteners
