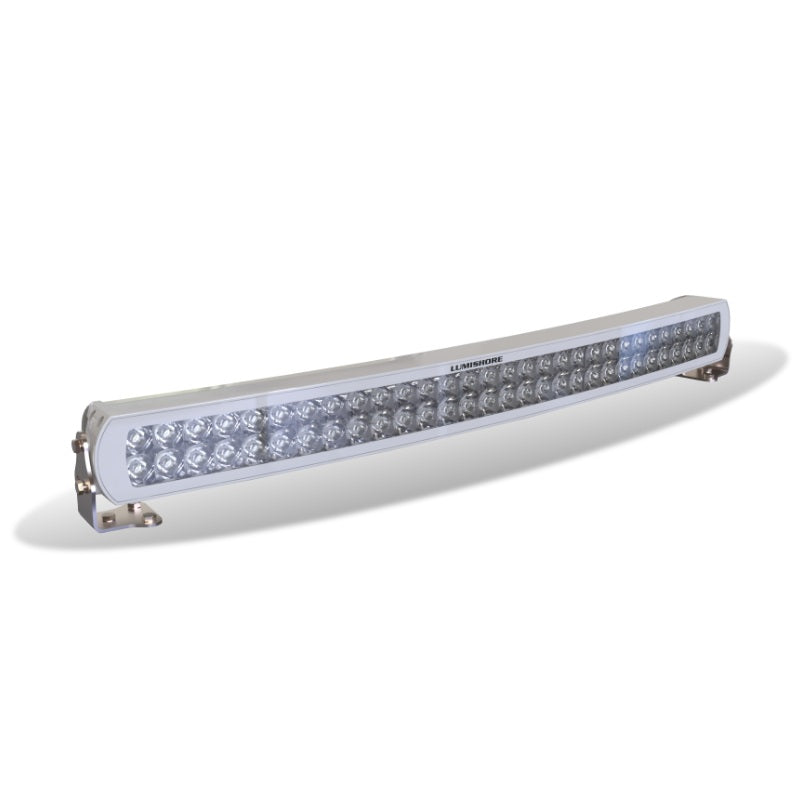

Lumishore 30in Curved Lightbar White LED, White Housing 12/24vDC

Lumishore 30in Curved Lightbar White LED, White Housing 12/24vDC

Model: 010-04463-00

Lumishore's new collection of Light Bars are designed to offer a high-intensity light source, covering a wide spread area.

The 30'' (80cm) Light Bar delivers an incredible output (23,760 fixture lumens) of crisp, white light to illuminate your boat deck and beyond. Available in 20", 30", 40" and 50" models, allowing for versatile placement onboard.

Designed to withstand the harshest marine environments, completely water tight (IP68 compliant) and constructed with marine-grade powder coated aluminium. Suitable for T-Tops, helm roofs, fishing towers and bow platforms.

Controllable via an on/off switch, ECLIPSE Command Center or EOS-LUX Command Center.

Specifications

Available colors
White (5500 K)

Lumens
53,460

Fixture Lumens
23,760

Number & Type Of LED
60 x 10W White LED

LED Power HICOB Array
Yes

Typical LED Life
50,000+ Hours

User Control Options
On/Off Switch (Third party supplied), ECLIPSE Command Center or EOS-LUX Command Center

Electrical Installation
Simple 2 Wire Connection (3 Wires when used with EOS-LUX Command Center)

Housing Type
Powder Coated Aluminium Body with Makrolon Lens

Driver
Internal

Supply Voltage Range
10.5—31 V DC

Max Current Draw 12/24V
19.3 A/9.6 A

Beam Angle
9° - 32° Letterbox Beam (Vert - Horiz)

Water Ingress Protection Rating
IP68

Warranty
3 Years

What's in the Box:

• One (1) Light Bar - Curved 30"


• Stainless steel bracket and fasteners
