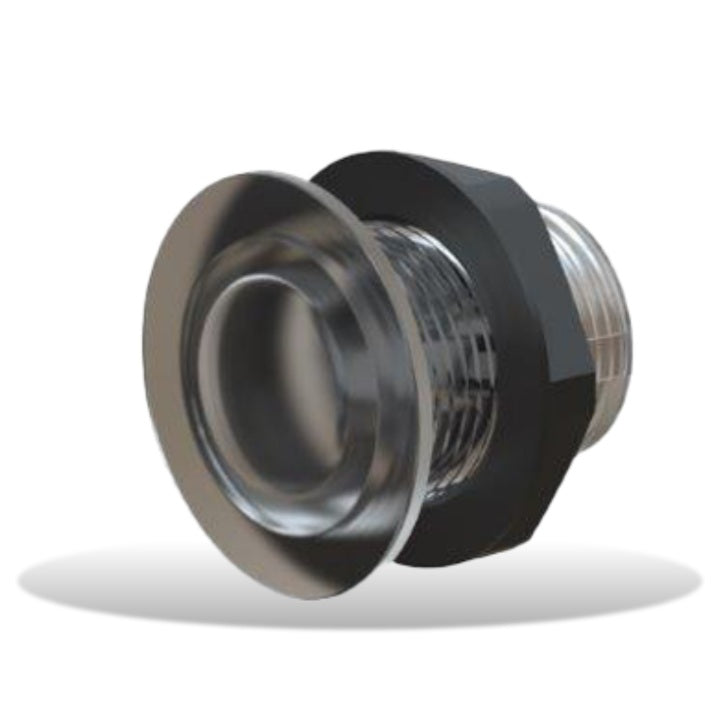

Lumishore Eclipse CL30 Blue & White Courtesy Light 12/24vDC

Lumishore Eclipse CL30 Blue & White Courtesy Light 12/24vDC

ECLIPSE Courtesy Lights are great for illuminating walkways, stairwells, helm stations and other design elements of a boat. Available in dual color blue and white and two other color options.

Constructed of a durable clear acrylic body, completely water sealed and IP67 rated.

Measuring 33mm (1.3") in diameter, ECLIPSE Courtesy Lights are small, discreet and easy to install with a 2 wire hookup, flush mountable and fit almost anywhere onboard.

Available Colors
Blue and White (5000 K)

LED Type
3 x 0.5W Blue LEDs / 3 x 0.5W White LEDs

Customer Control Options
On/Off Switch or ECLIPSE Command Center

Electrical Installation
Simple 2 Wire Installation

Supply Voltage Range
12V DC Only (10 - 15V DC)

Max Current Draw (12/24V DC)
0.1A

Ingress Protection
IP67

Front Diamater (Bezel)
33mm (1.3")

Profile
3.5mm (0.137")

Hole Diameter for fitting
25.4mm (1.0")

Mechanical Installation
Bulkhead Panel Mount (with marine adhesive)

Warranty
3 Years
